Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-148

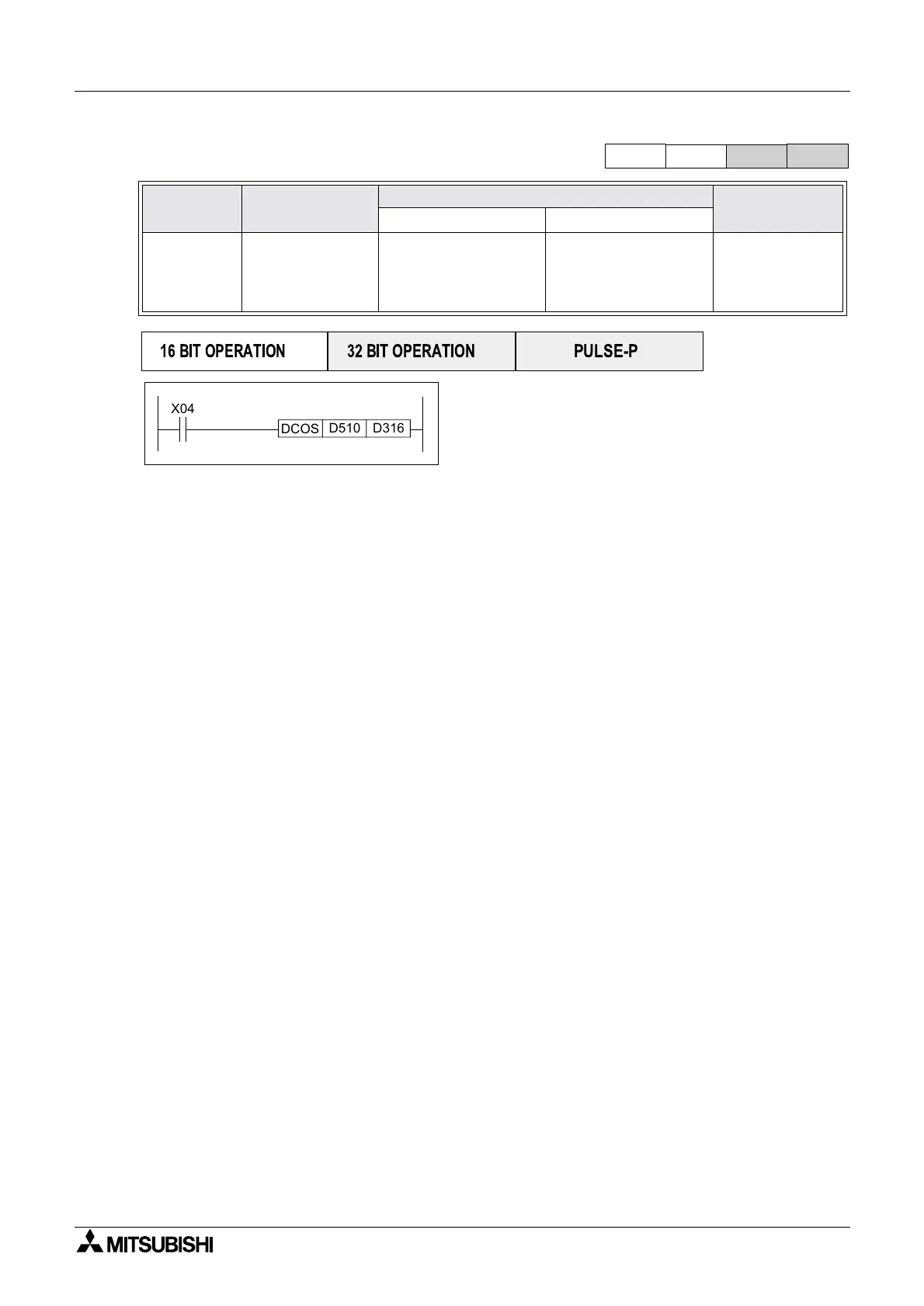

5.11.2 COS (FNC 131)
Contents:
This instruction performs the mathematical COS
operation on the floating point value in S. The
result is stored in D.
Points to note:
All the points for the SIN instruction apply, except that COS is calculated.
See page 5-127.
Mnemonic Function
Operands
Program steps
SD
COS
FNC 131
(Cosine)
Calculates the
cosine of a
floating point
value
D - must be in floating
point number format
(32 bits).
D - a floating point
value
(32 bits).
DCOS,
DCOSP:
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
DCOS
X04
D510 D316

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
