FX Series Programmable Controlers Applied Instructions 5
5-124

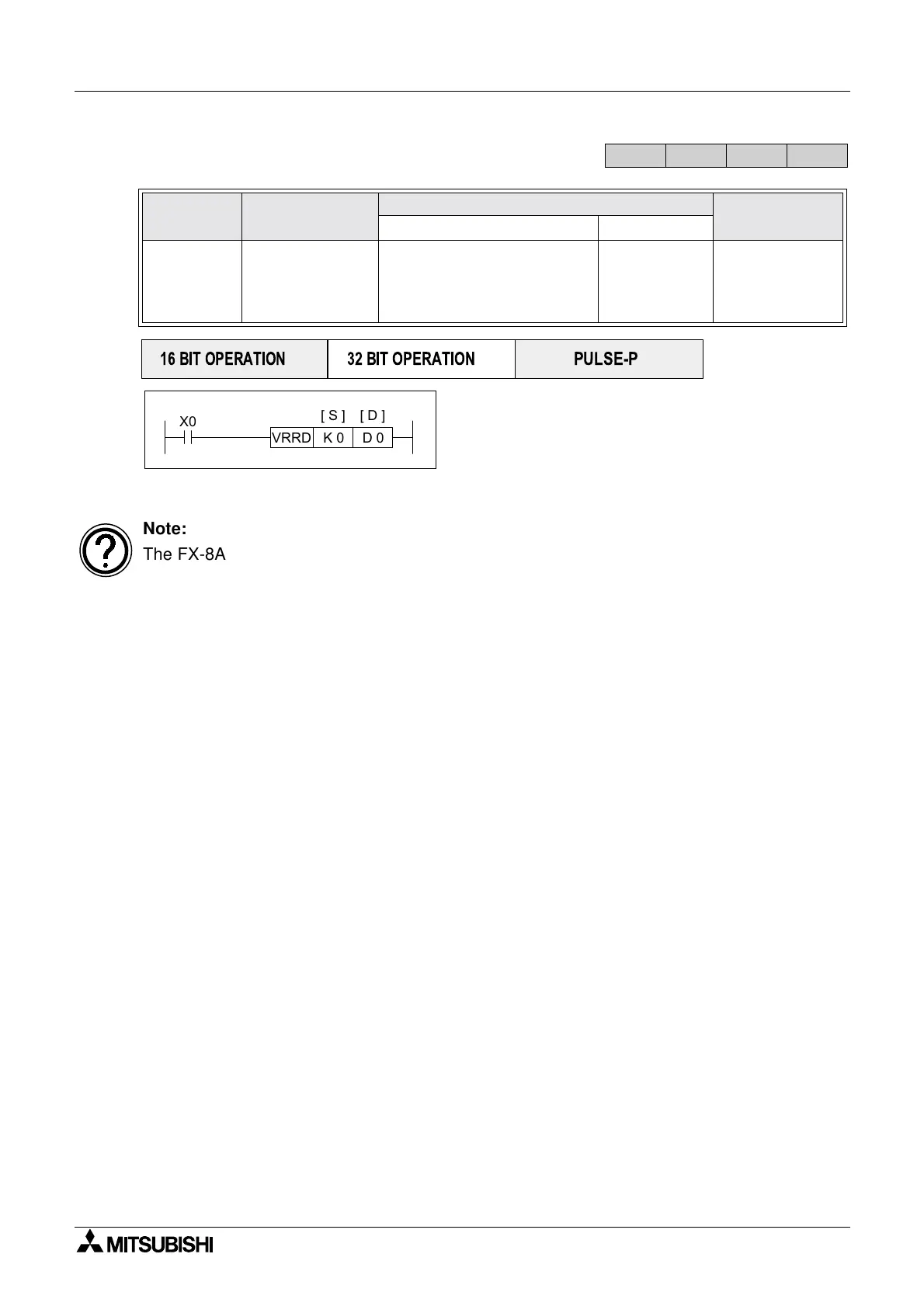

5.9.6 VRRD (FNC 85)
Operation:
The identified volume (S) on the FX-8AV is read as
an analog input. The analog data is in an 8 bit
format, i.e. values from 0 to 255 are readable. The
read data is stored at the destination device
identified under operand D.
Mnemonic Function
Operands
Program steps
SD
VRRD
FNC 85
(Volume
read)
Reads an analog
value from 1 of 8
volume inputs on
the FX-8AV
K, H
Note:
S= 0 to 7
corresponding to the 8 available
volumes on the FX-8AV
KnY, KnM, KnS
T, C, D, V, Z
VRRD,
VRRDP:
5steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X0
VRRD K 0 D 0
[ S ] [ D ]
Note:
The FX-8AV volume ‘inputs’ are able to be read in two formats, a) as an analog value and b)
as an 11 (0 to 10) position rotary switch. The second use is described in the VRSC instruction
(FNC 86).

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
