Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-39

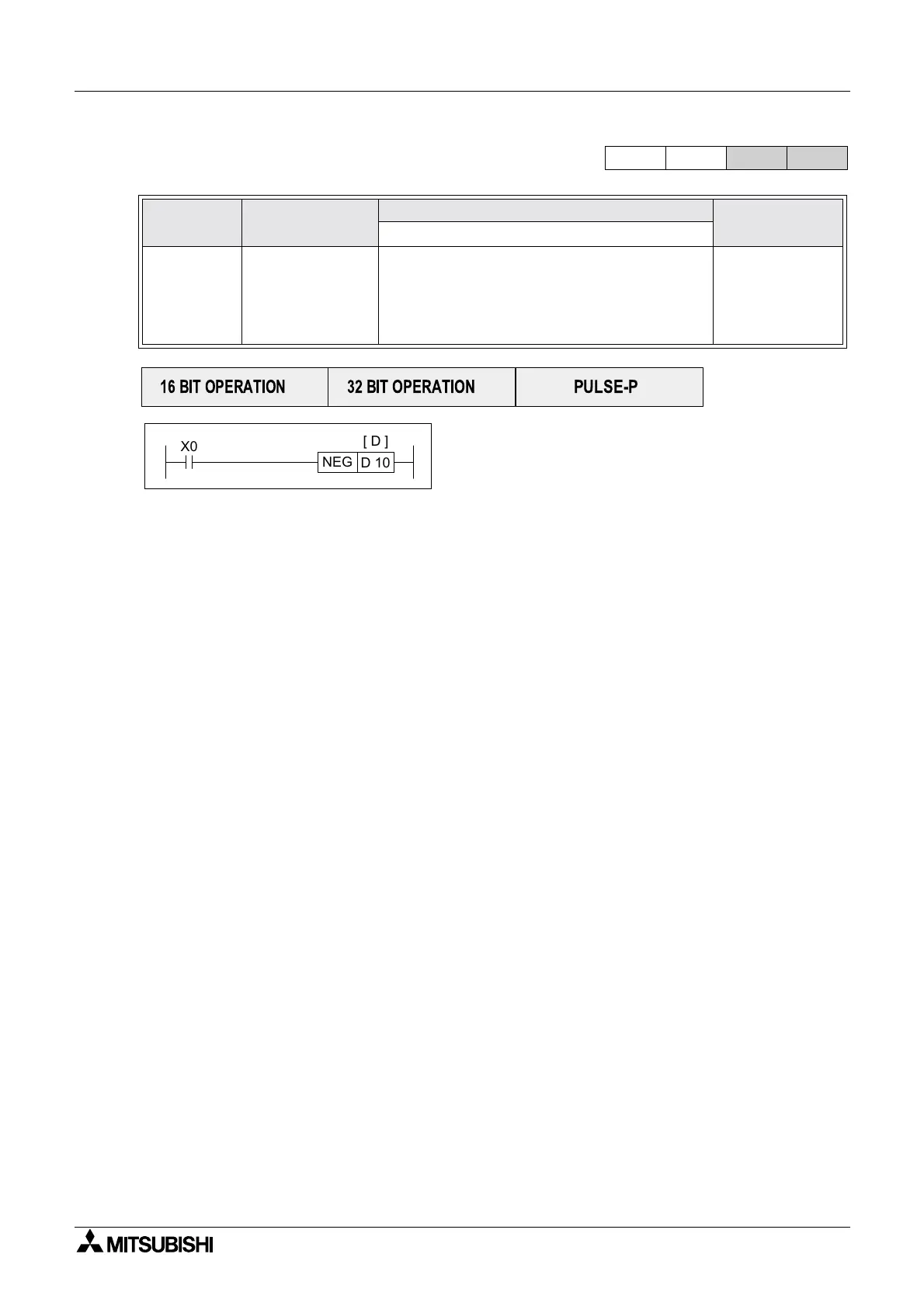

5.3.10 NEG (FNC 29)
Operation:
The bit pattern of the selected device is inverted.
This means any occurrence of a ‘1’ becomes a ‘0’
and any occurrence of a ‘0’ will be written as a ‘1’.
When this is complete, a further binary 1 is added to the bit pattern. The result is the total
logical sign change of the selected devices contents, e.g. a positive number will become a
negative number or a negative number will become a positive.
Mnemonic Function
Operands
Program steps
D
NEG
FNC 29
(Negation)

Logically inverts
the contents of
the designated
device
KnY, KnM, KnS,
T, C, D, V, Z
NEG,NEGP:
3steps
DNEG,
DNEGP:
5steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X0
[ D ]
D 10
NEG

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
