FX Series Programmable Controlers Applied Instructions 5
5-185

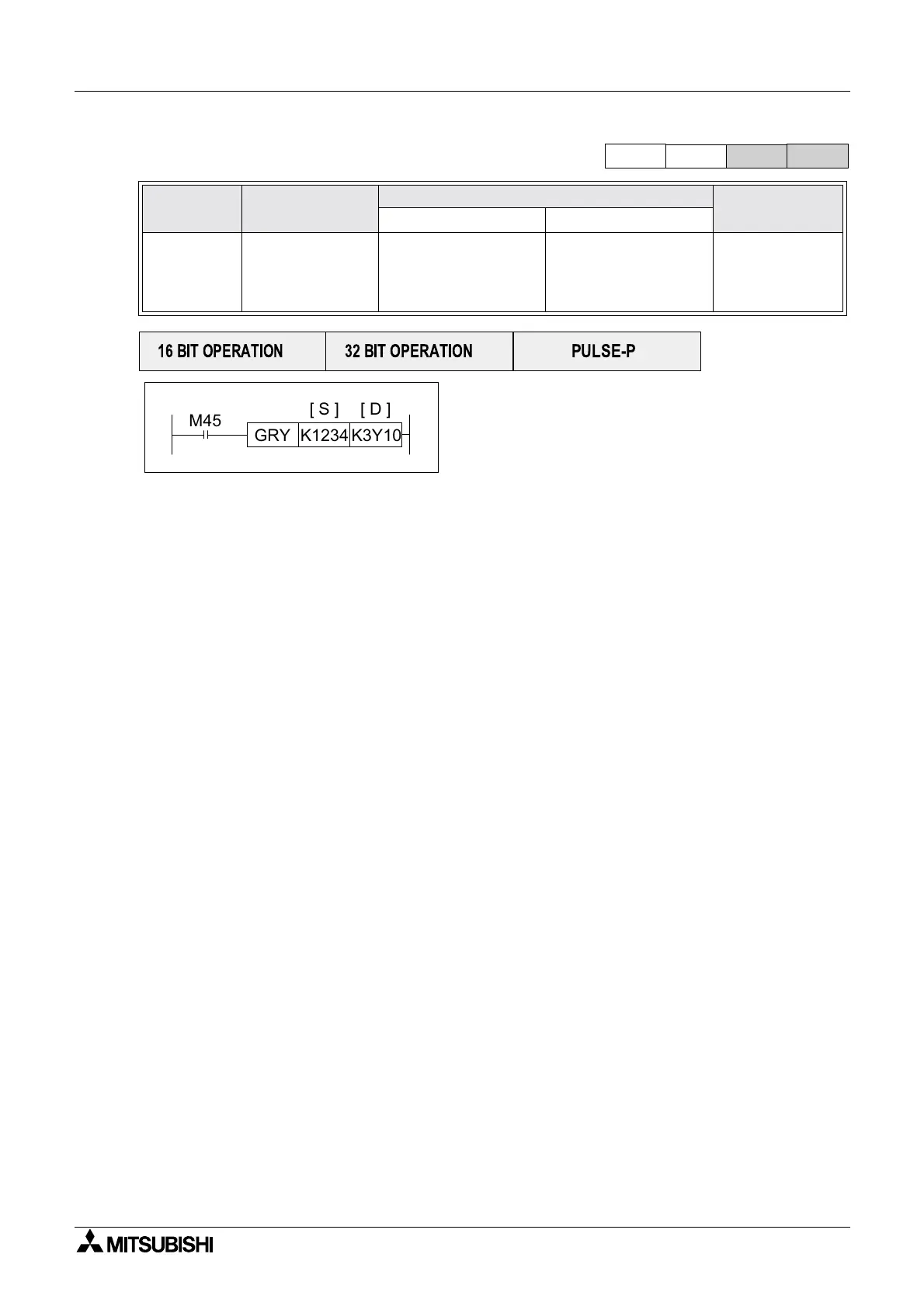

5.15.1 GRY (FNC 170)
Operation:
The binary integer value in S is converted to the
GRAY CODE equivalent and stored at D.
Points to Note:
The nature of gray code numbers allows numeric values to be quickly output without the need
for a strobing signal. For example, if the source data is continually incremented, the new output
data can be set each program scan.
Mnemonic Function
Operands
Program steps
SD
GRY
FNC 170
(Gray
Code)
Calculates the
gray code value
of an integer
K, H,
KnX, KnY, KnM, KnS,
T, C, D, V, Z
KnY, KnM, KnS,
T, C, D, V, Z
GRY,GRYP:
5steps
DGRY,DGRYP
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
M45
K1234 K3Y10GRY
[ S ] [ D ]

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
