c) The PRUN instruction enables data to be moved into the bit transmission area or out of the
(bit) data received area. The PRUN instruction differs from the move statement in that it
operates in octal. This means if K4X20 was moved using the PRUN instruction to K4M920,
data would not be written to M928 and M929 as these devices fall outside of the octal
counting system. This can be seen in the diagram below.
d) For more information please see page 9-6.

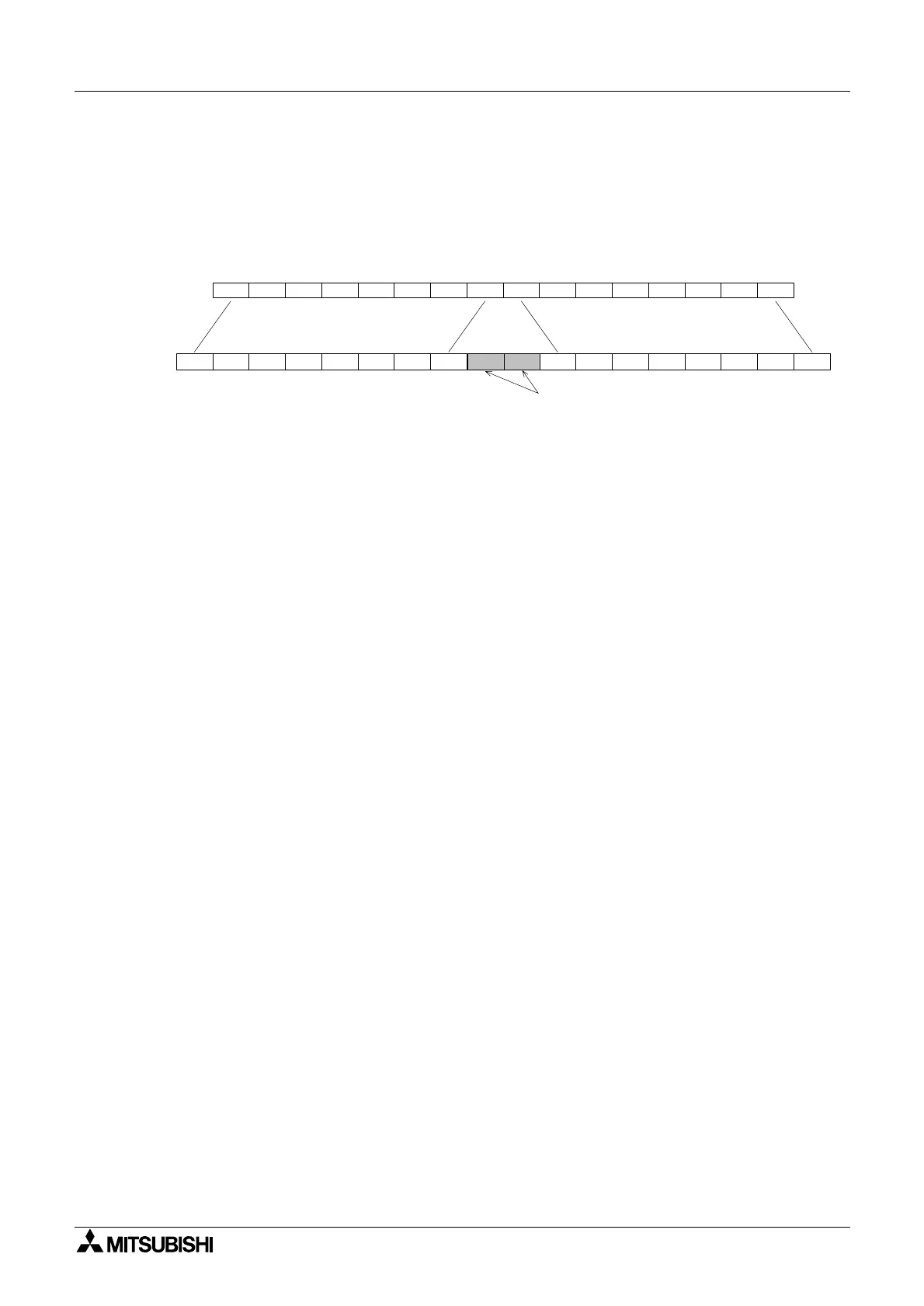

M936 M935 M934 M933 M932 M931 M930 M927 M926 M925 M924 M923 M922 M921
X37 X36 X35 X34 X33 X32 X31 X30 X27 X26 X25 X24 X23 X22 X21 X20
K4X20
K4M920
M937 M920
M928M929
These devices are not written to with
the PRUN instruction

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
