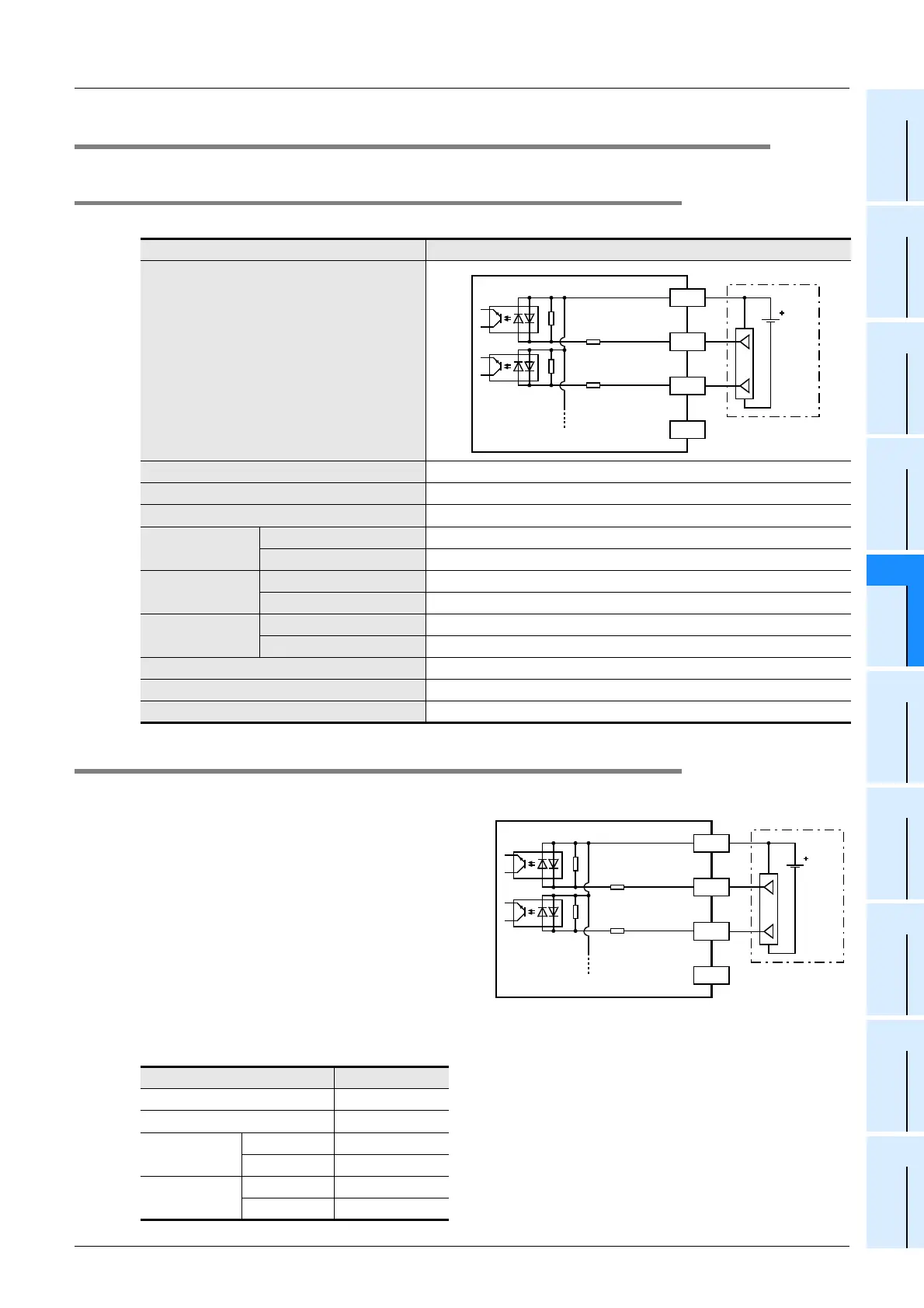

5.3 5V Input [FX2N-16EXL-C]
5.3.1 5V DC input specifications
The table below shows the input specifications of the FX2N-16EXL-C.
5.3.2 Handling of 5V DC Input
1. Input terminals
When an input terminal and the 5+ terminal are
connected with the 5V DC circuit (shown in the
figure on the right), the input turns ON. At this time,
the input indicator LED turns ON.
Multiple 5+ terminals are connected inside the PLC.
2. Input circuit
The primary and secondary circuits for input are
insulated with a photocoupler. Response delay of
approximately 1ms is given for a change in the input
("ON
→ OFF" or "OFF → ON").
3. Input sensitivity
The table below shows the input current and input sensitivity in this PLC.
Item 5V DC input specifications
Input circuit diagram
Input signal voltage 5V DC ±5%
Input impedance 2.2kΩ
Input signal current Max.40mA 5V DC (16 points)
Input sensitivity
current
ON (Low) 1mA or more
OFF (High) 0.4mA or less
Input sensitivity
voltage
ON (Low) 1.5V DC or less
OFF (High) 3.5V DC or more
Input response
time
OFF → ON (High → Low) 1ms +1ms, -0.5 ms
ON → OFF (Low → High) 1ms +1ms, -0.5 ms
Input signal type TTL input
Input circuit insulation Photo-coupler insulation
Input operation display Turning on the input will light the LED indicator lamp.
Item Specifications
Input voltage 5V DC ±5%
Input current Max.40mA
Input sensitivity
current
ON (Low) 1mA or more
OFF (High) 0.4mA or less
Input sensitivity
voltage
ON (Low) 1.5V DC or less
OFF (High) 3.5V DC or more
X000
FX 2N -16EXL-C
5+
Input
impedance
Input
impedance
X007
TTL
External unit
Photocoupler
X001
5V
DC
2.2k
Ω
2.2k Ω
X000
FX 2N -16EXL-C
5+
Input
impedance
Input
impedance
X007
TTL
External unit
Photocoupler
X001
5V
DC
2.2k
Ω
2.2k Ω
