170
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
6 Output Specification and External Wiring
6.2 Transistor Output
*1. The response time is as follows in the FX2N-8EYT-H and FX0N-8EYT-H.
OFF → ON: 0.2ms or less/1A
ON
→ OFF: 0.4ms or less/1A

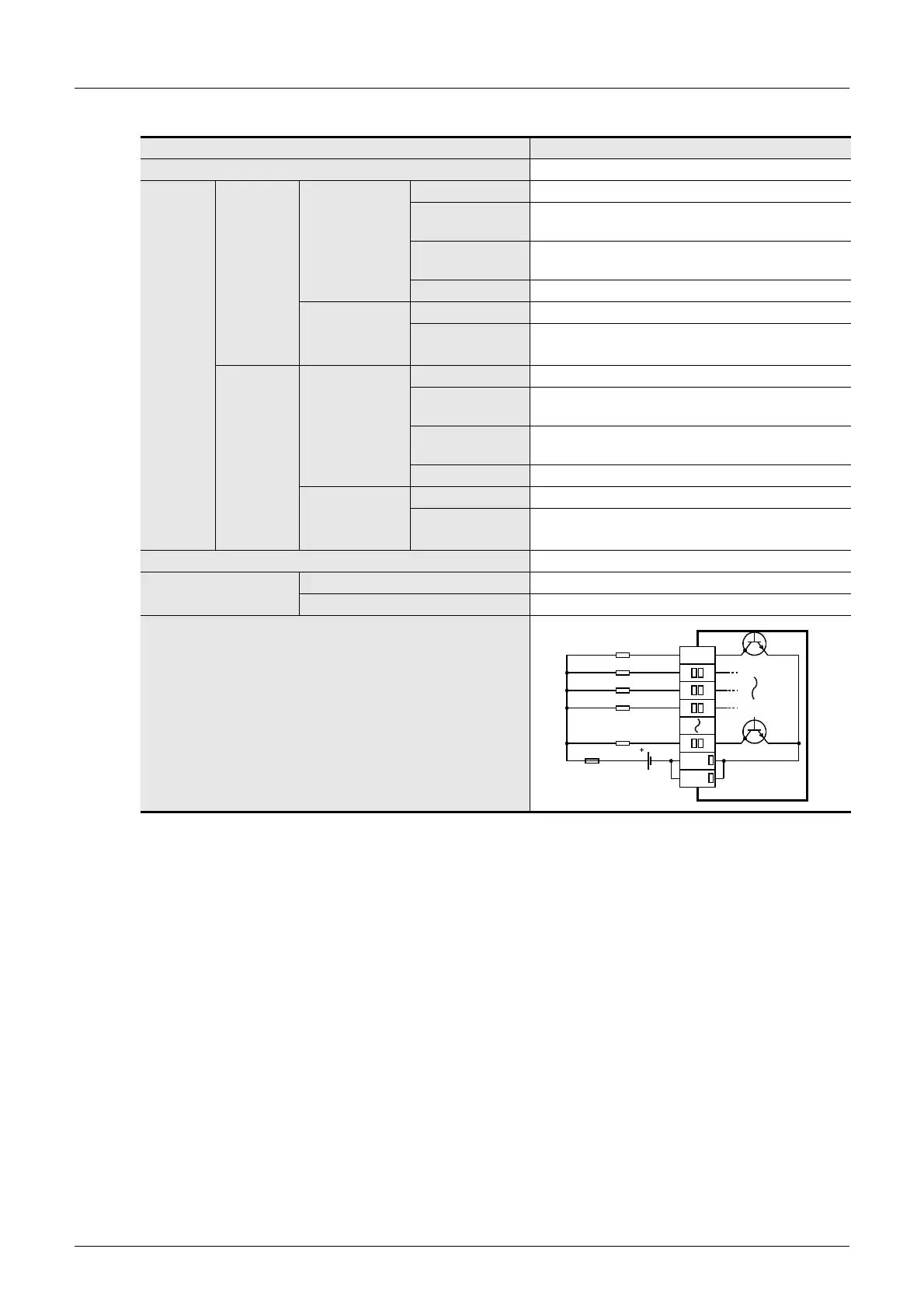

Item Transistor output (sink) specifications
ON voltage 1.5V or less
Response
time
OFF → ON
Main units
Y000 to Y002 5µs or less/10mA to 100mA (5 to 24V DC)
Y003
(FX
3UC-MT/D)
0.2ms or less/100mA (24V DC)
Y003
(FX
3UC-32MT-LT)
5µs or less/10mA to 100mA (5 to 24V DC)
Y004 or later 0.2ms or less/100mA (24V DC)
Extension
blocks
For FX2NC Series 0.2ms or less/100mA
For FX2N/FX0N
Series
*1
0.2ms or less/200mA
ON → OFF
Main units
Y000 to Y002 5µs or less/10mA to 100mA (5 to 24V DC)
Y003
(FX
3UC-MT/D)
0.2ms or less/100mA (24V DC)
Y003
(FX
3UC-32MT-LT)
5µs or less/10mA to 100mA (5 to 24V DC)
Y004 or later 0.2ms or less/100mA (24V DC)
Extension
blocks
For FX2NC Series 0.2ms or less/100mA
For FX2N/FX0N
Series
*1
0.2ms or less/200mA
Circuit insulation Photocoupler insulation
Output operation
display
FX3UC-MT/D, Extension blocks LED on panel lights when photocoupler is driven.
FX3UC-32MT-LT Monitor by the display module
Output circuit configuration
PLC
Y000
24V
DC
Load
Fuse
Y 1
Y 2
Y 3
Y 7
COM
COM
To Next Page
