FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
6 Output Specification and External Wiring
6.2 Transistor Output
6.2.3 Output Derating Curve

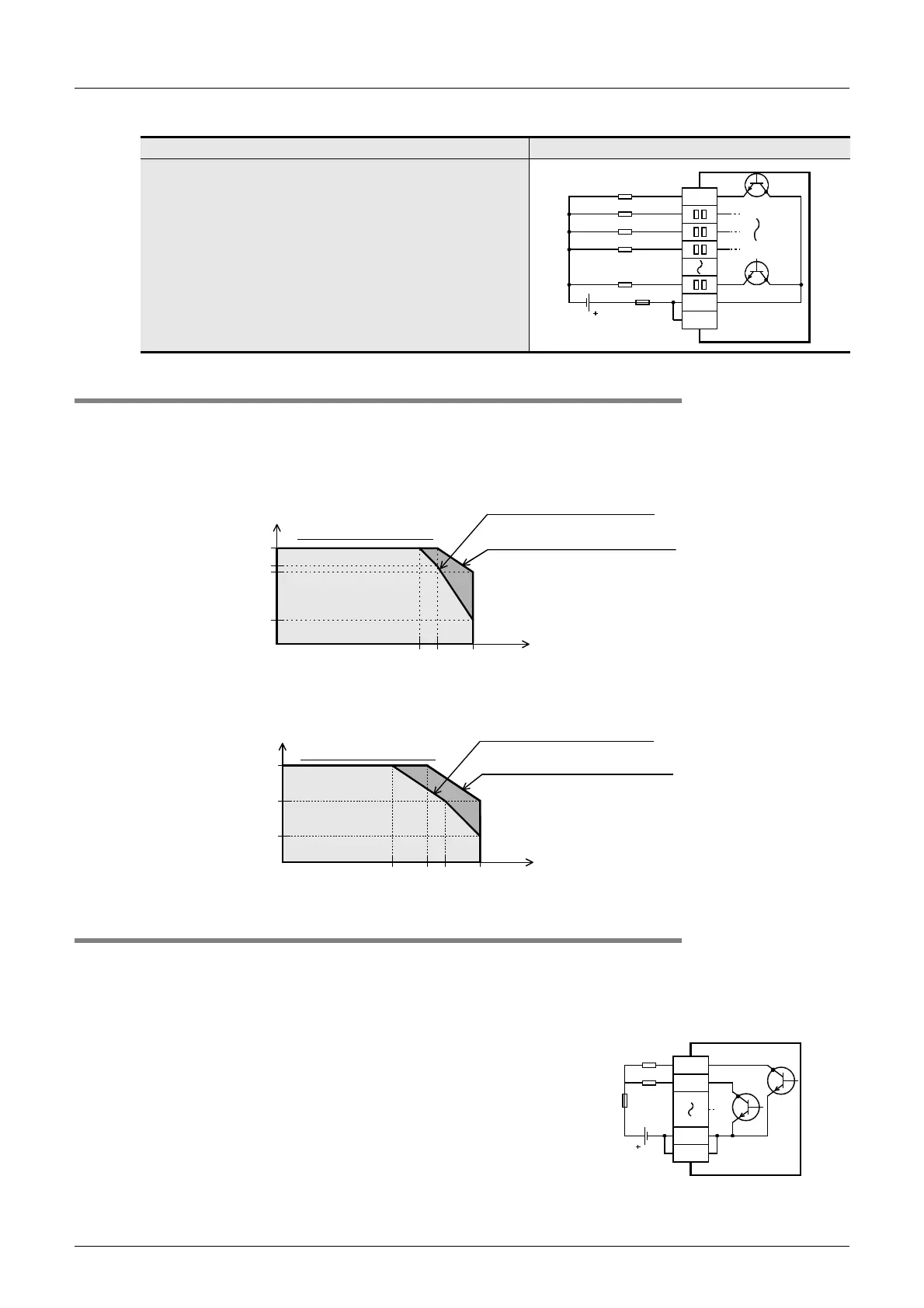

The derating curve below shows the simultaneous ON ratio of available PLC inputs with respect to the
ambient temperature. Use the PLC within the simultaneous input ON ratio range shown in the figure.
1. In case of the FX3UC-MT/D, DSS
2. In case of the FX
3UC-32MT-LT
6.2.4 Handling of transistor output
1. Output terminals
4, 8 or 16 transistor output points are covered by one common terminal.
Sink output
Two COM terminals connected each other inside the PLC
are provided for sink outputs in the FX
3UC main unit,
transistor output type extension blocks for FX
2NC and
FX
2N-16EYT-C.
For external wiring, connect two COM terminals outside
the PLC so that the load applied on each COM terminal
becomes smaller.
Item Transistor output (source) specifications
Output circuit configuration
PLC
Y000
+V0
Load
Y 1
Y 2
Y 3
Y 7
+V0
24V DC
Fuse
When only the main unit is used
(without extension blocks/units)
Derating curve
Simultaneous ON ratio
80%
55 ° C
Ambient temperature
applicable
20%
45 ° C
When extension blocks/units
are connected
Supply voltage:24V DC
40 ° C
65%
60%
Simultaneous ON ratio
80
° C
55 ° C
Ambient temperature
applicable
30 ° C 40 ° C
50 ° C
20 ° C
45 ° C
When extension blocks/units
are connected
When only the main unit is used
(without extension blocks/units)
Supply voltage:24V DC
Derating curve
PLC
Y000
Load
5 to 30V
DC
Fuse
COM1
COM1
Y001
Sink output type
