9 CC-Link/LT Built-in master ability (Only FX3UC-32MT-LT)
9.13 Editing the detailed remote station information
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)
3 Setting the Detailed remote station information
(Setting in GX Developer)

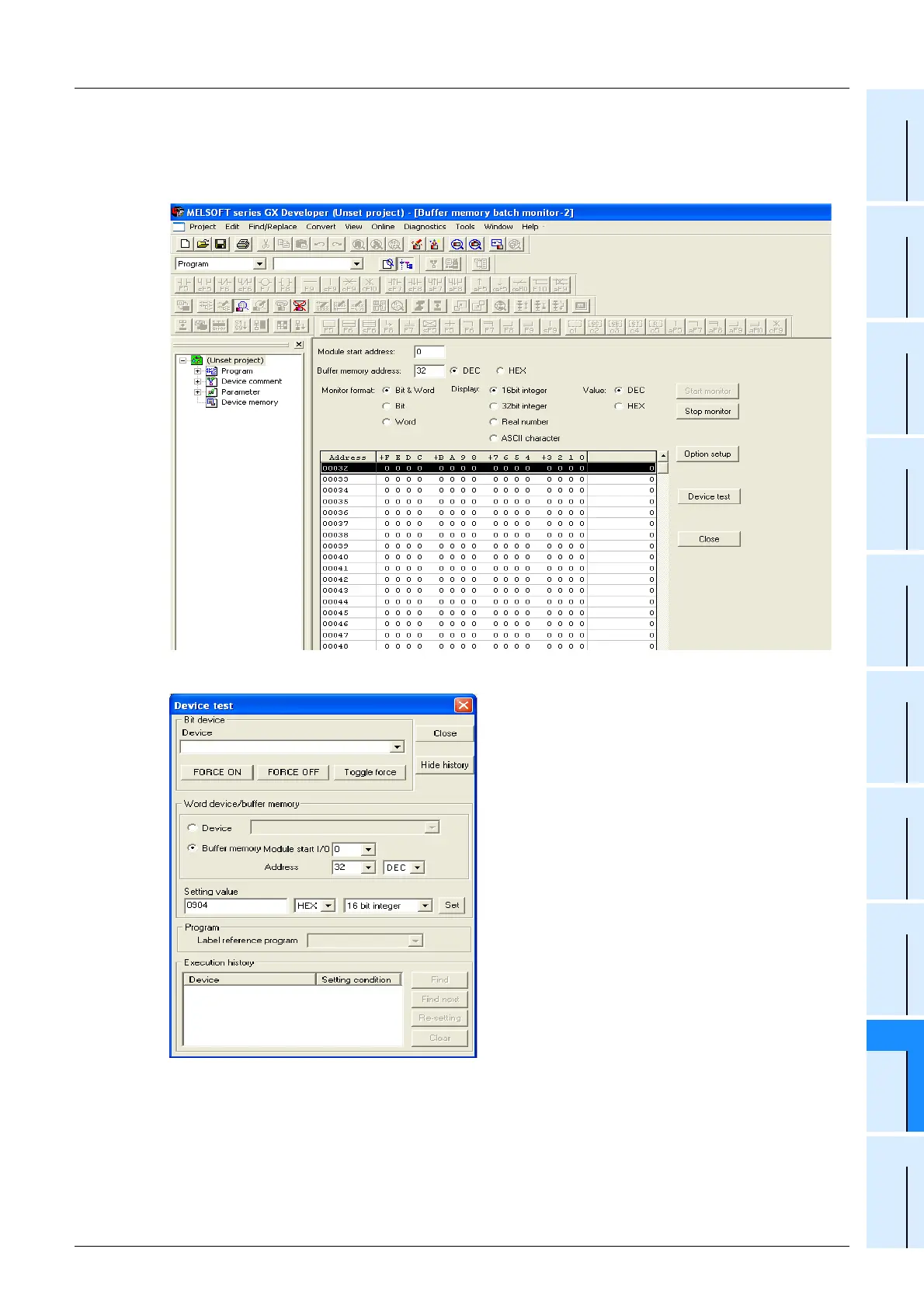

1) Input the unit head address (0: Fixed) and buffer memory address to be set, and click [Start monitor].
2) Click [Buffer memory batch...] - [Device test].
Click [Device test], input the detailed remote station information to [Setting value], and click [Set].
In "Example 1", set [Setting value] to "0904", [Hex] and [16 bit integer], and click [Set].
Repeat the steps 1) and 2) until the station No. 6.
