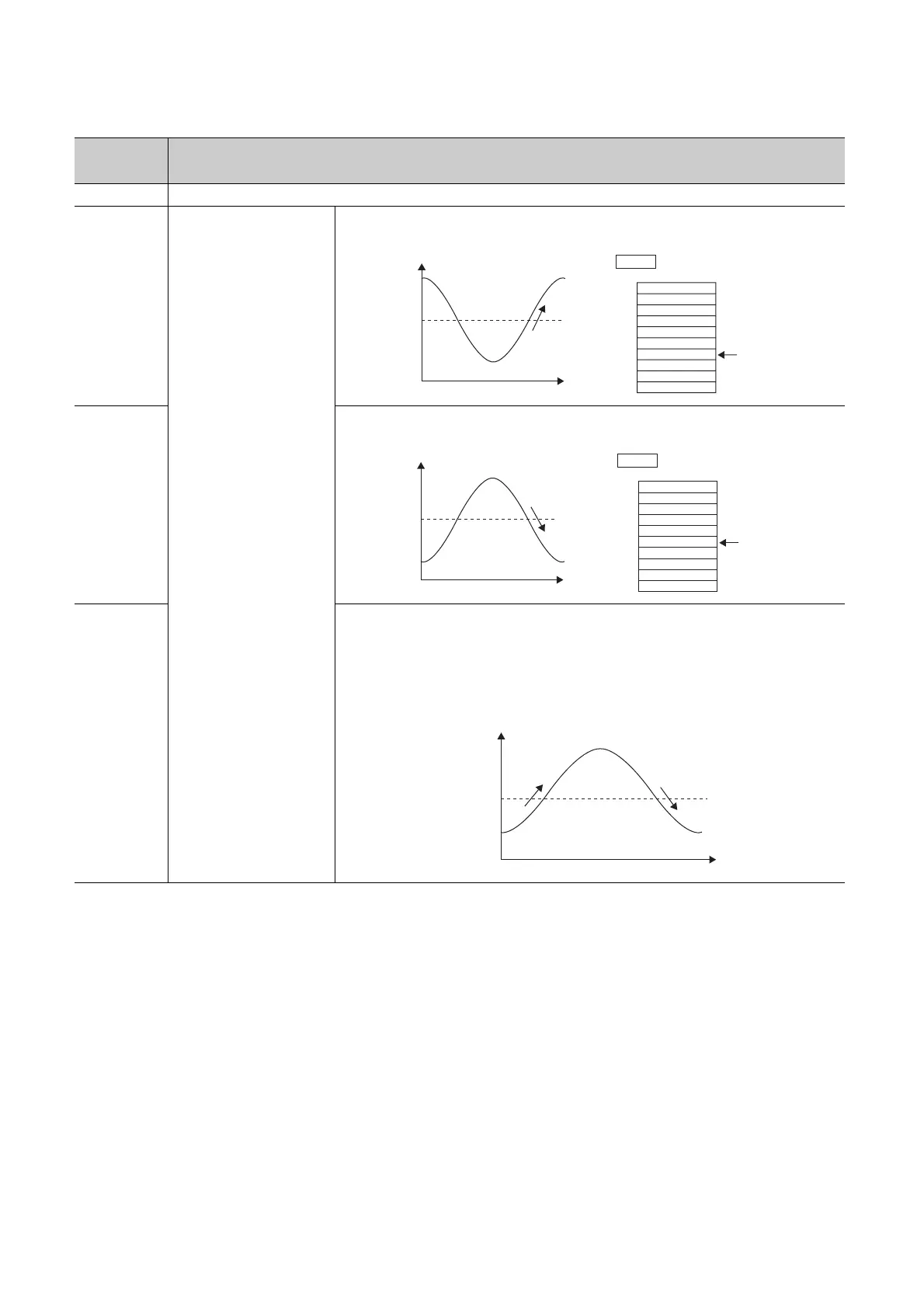

7. In "Level trigger condition setting", select any of the following.
Setting
value
Description
0: Disable Select when a stop condition of logging is not set. (Logging can be stopped at any timing.)
1: Above
Select a value to set a stop
condition of logging.
(Logging stops when the
value in the buffer memory
satisfies the set condition.)
Logging stops when the status of "Trigger data < Trigger setting value" turns to that of
"Trigger data > Trigger setting value"
2: Below
Logging stops when the status of "Trigger data > Trigger setting value" turns to that of
"Trigger data < Trigger setting value"
3: Pass
Through
Logging stops when the trigger data passes the trigger setting value. (Either of the following
(1) or (2))
(1) When the status of "Trigger data < Trigger setting value" turns to that of "Trigger data
> Trigger setting value"
(2) When the status of "Trigger data > Trigger setting value" turns to that of "Trigger data
< Trigger setting value"
Trigger data
Trigger
occurrence
Example When the trigger
setting value is 70
Trigger occurs
at this point
Time
Trigger
setting value
Trigger data
64
66
67
69
70
71
72
74
...
Trigger data
Trigger
occurrence
Example When the trigger
setting value is 70
Trigger occurs
at this point
Time
Trigger
setting value
Trigger data
74
72
71
70
69
67
66
64
...
Trigger data
Trigger
occurrence
(1)
Time
Trigger
setting value
Trigger
occurrence
(2)
