CHAPTER 8 FUNCTIONS
8
8.19 Saving and Restoring Offset/Gain Values

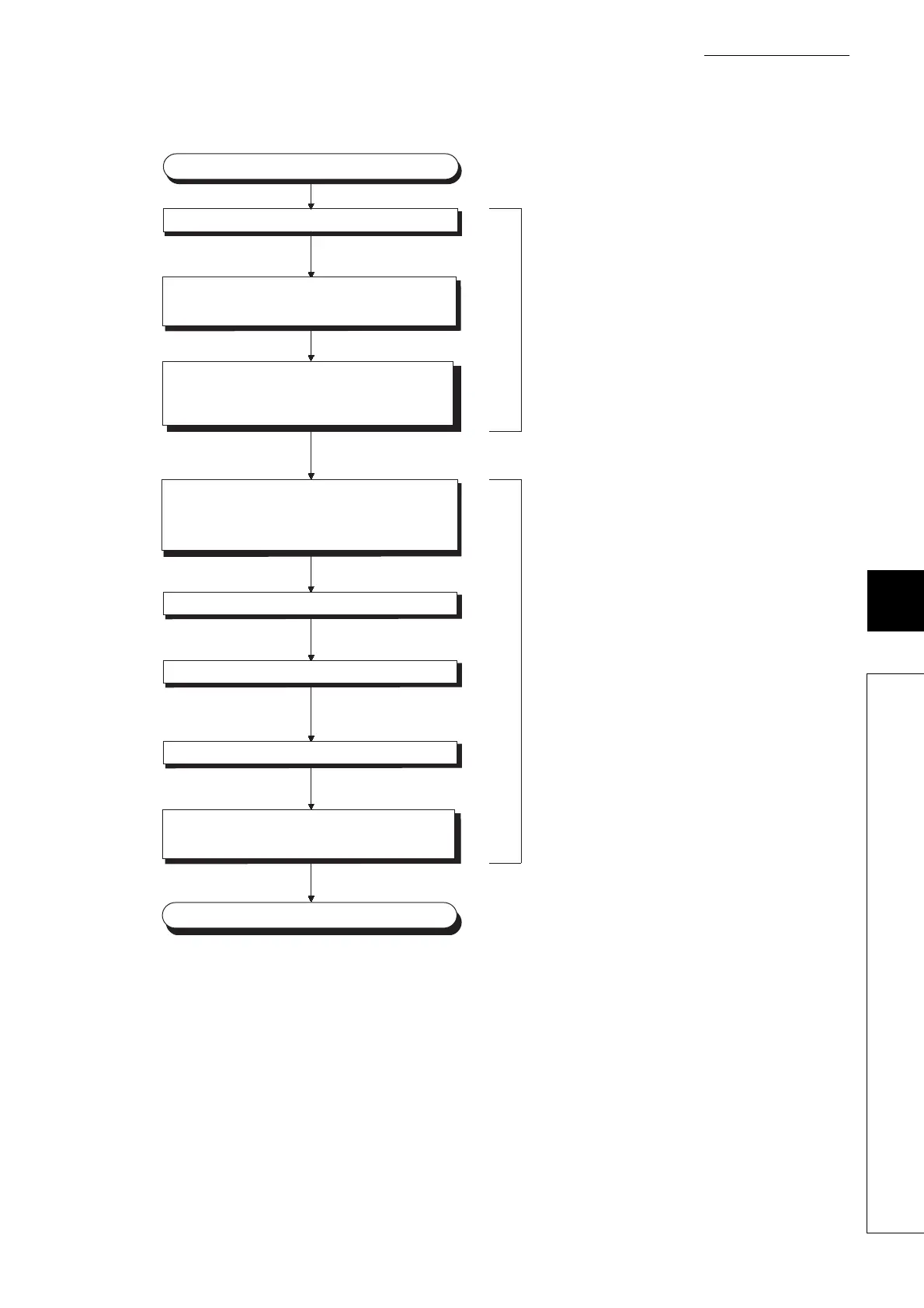

• To apply the offset/gain values of one module to the other modules:
Records the data stored in Pass data classification
setting (Un\G200) and CH1 Industrial shipment
settings offset value (L) (Un\G202) to CH4 User
range settings gain value (H) (Un\G233).
Turns off User range write request (YA).
Checks that Offset/gain setting mode flag (XA) is on.
Turns on User range write request (YA).
Checks that the replaced A/D converter module
operates with the restored offset/gain values.
End
For the destination A/D converter module
Writes the recorded data to Pass data classification
setting (Un\G200) and CH1 Industrial shipment
settings offset value (L) (Un\G202) to CH4 User
range settings gain value (H) (Un\G233).
Start
Sets values in Pass data classification setting (Un\G200).
Turns off, then on, and off again Operating
condition setting request (Y9).
