(2) A/D conversion enable/disable setting
Select "ENABLE" or "DISABLE" in the "A/D CONVERSION" screen.
(3) Averaging process setting
In the "AVE PROCESSING" screen, select whether to perform sampling processing or averaging processing
(time average, count average, moving average).
Table of input items
The display unit allows you to input between 2 to 62500 for any type of averaging processing, however, if the value is outside
the setting range of the averaging processing that you selected, an error will occur on the A/D converter module side.

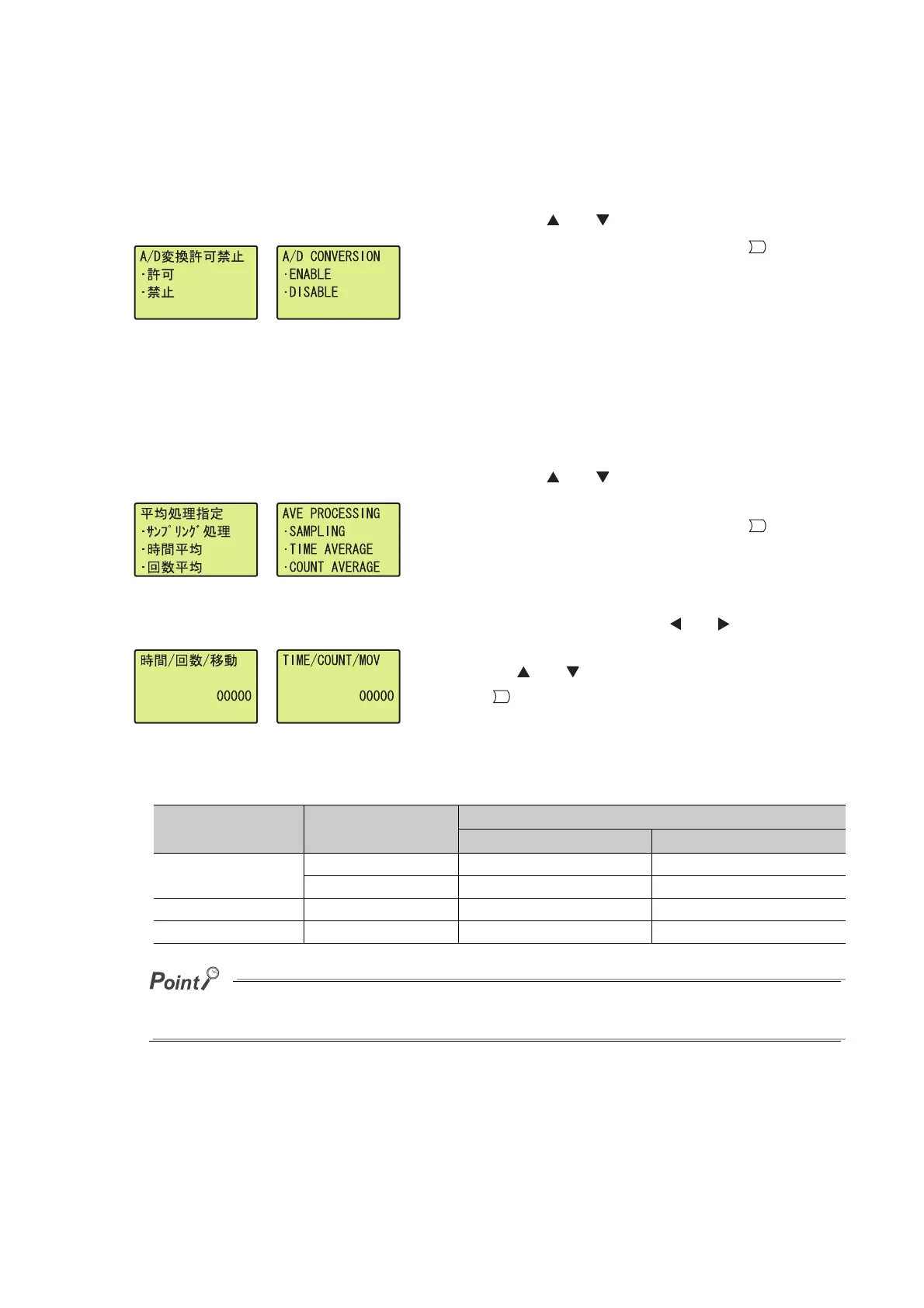

"A/D CONVERSION" screen
1. Use the and buttons to select "ENABLE" or
"DISABLE", and then confirm with the button.
"AVE PROCESSING" screen
1. Use the and buttons to select "SAMPLING",
"TIME AVERAGE", "COUNT AVERAGE", or "MOVING
AVERAGE", and then confirm with the . (If you
selected any item other than "SAMPLING", proceed
to step 2.)
↓
"TIME/COUNT/MOV" screen
2. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
Input item Conversion speed
Input range
Input upper limit Input lower limit
TIME
20µs 1500 2
80µs/1ms 5000 2
COUNT 20µs/80µs/1ms 62500 4
MOV 20µs/80µs/1ms 1000 2
OK
OK
OK
To Next Page
