CHAPTER 9 DISPLAY UNIT
9
9.3 List of Setting Value Change Screens
(4) Warning output setting
Select "DISABLE" or "ENABLE" in the "PROCESS ALARM" screen.
Table of input items

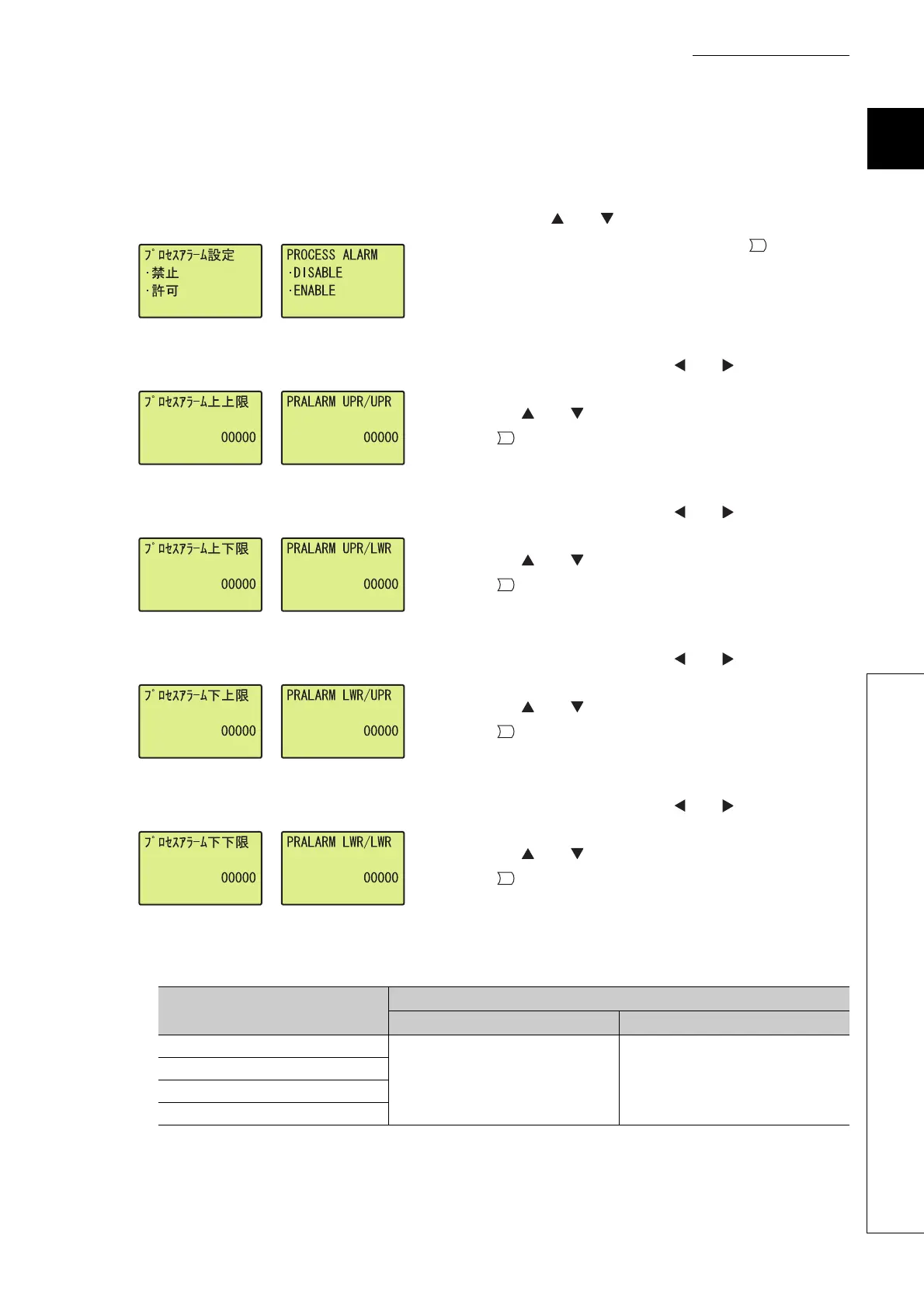

"PROCESS ALARM" screen
1. Use the and buttons to select "DISABLE" or
"ENABLE", and then confirm with the button. (If
you selected "ENABLE", follow the rest of the
procedure.)
↓
"PRALARM UPR/UPR" screen
2. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
↓
"PRALARM UPR/LWR" screen
3. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
↓
"PRALARM LWR/UPR" screen
4. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
↓
"PRALARM LWR/LWR" screen
5. Move the cursor using the and buttons, then
increment or decrement the value at the cursor, using
the and buttons, respectively. Confirm with the
button.
Input item
Input range
Input upper limit Input lower limit
PRALARM UPR/UPR
32767 -32768
PRALARM UPR/LWR
PRALARM LWR/UPR
PRALARM LWR/LWR
OK
OK
OK
OK
OK
