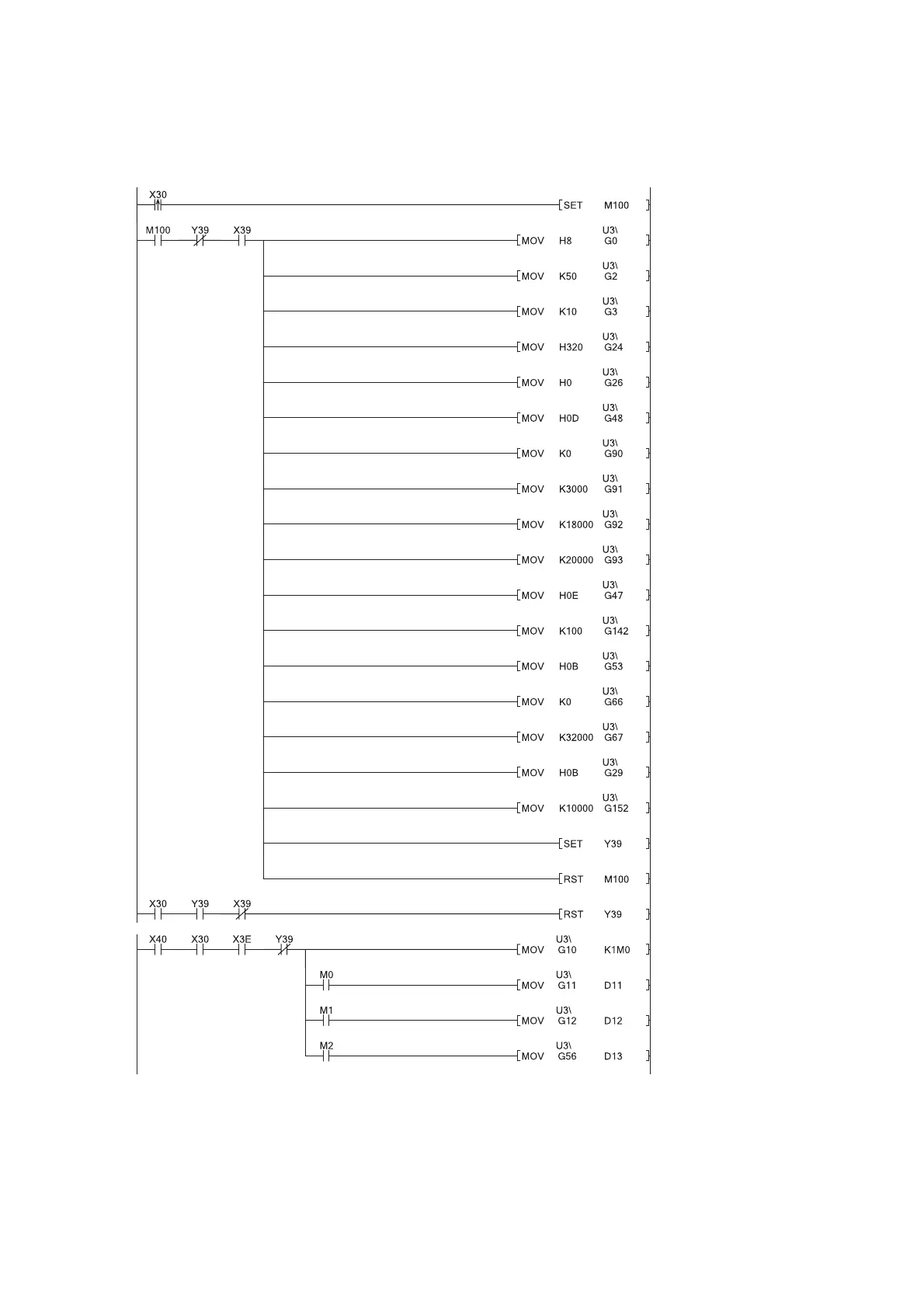

(6) Program example when not using the parameter of intelligent function module
Reads CH1 Digital output value.
Reads CH2 Digital output value.
Reads CH3 Scaling value
(digital operation value).
Enables CH3 digital clipping function.
Sets CH3 shifting amount to
conversion
Turns on Operating condition setting
request.
Turns off Operating condition setting
request.
Reads A/D conversion completed flag.
Enables CH1 to CH3 A/D conversion.
Sets CH1 to CH3 averaging
processing.
Sets conversion speed.
Sets CH2 warning output.
Sets CH2 process alarm lower lower
limit value.
Sets CH2 process alarm lower upper
limit value.
Sets CH2 process alarm upper lower
limit value.
Sets CH2 process alarm upper upper
limit value.
Activates CH1 input signal error
detection.
Sets CH1 input signal error detection
value.
Sets CH3 scaling setting
Sets CH3 scaling lower limit value.
Sets CH3 scaling upper limit value.
Sets CH2 time/count/moving average.
Sets CH3 time/count/moving average.
Initial settings
Read digital output values
