APPENDICES
A
Appendix 1 Details of I/O Signals Appendix 1.1 Input signal
(4) Offset/gain setting mode flag (XA)
(a) Offset/gain setting mode
When registering the value, which was adjusted with the offset/gain setting, to the module, use Offset/gain setting
mode flag (XA) as an interlock condition to turn User range write request (YA) OFF → ON → OFF.
For the offset/gain setting, refer to the following.
• Offset/gain setting ( Page 54, Section 7.5)
(b) Normal mode
In the user range restoration, use Offset/gain setting mode flag (XA) as an interlock condition to turn User
range write request (YA) OFF → ON → OFF.
For user range restoration, refer to the following.
• Save/restoration of offset/gain value ( Page 124, Section 8.19)
(5) Channel change completed flag (XB)
When changing a channel to perform the offset/gain setting, use Channel change completed flag (XB) as an
interlock condition to turn Channel change request (YB) OFF → ON → OFF.
For the offset/gain setting, refer to the following.
• Offset/gain setting ( Page 54, Section 7.5)

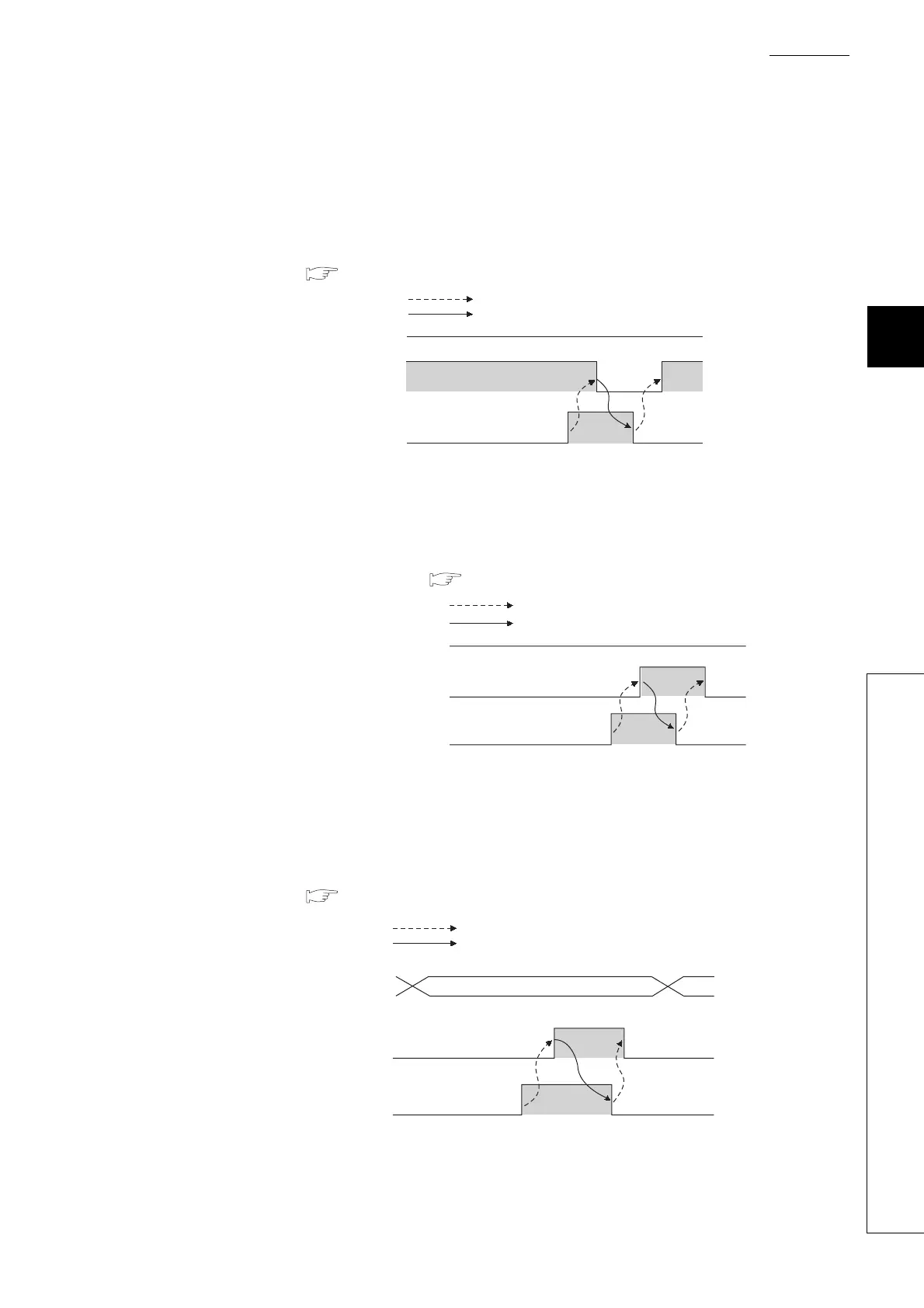

Module READY (X0)
OFF
Offset/gain setting mode
flag (XA)
User range write request (YA)
Controlled by the A/D converter module
Controlled by the program
OFF
OFF
OFF
ON
ON
ON
ON
Module READY (X0)
Offset/gain setting mode flag (XA)
User range write request (YA)
Controlled by the A/D converter module
Controlled by the program
ON
ON
OFF
OFF
Offset/gain setting mode Offset
specification (Un\G22),
Gain specification (Un\G23)
Channel change completed
flag (XB)
Channel change request (YB)
Controlled by the A/D converter module
Controlled by the program
OFF
OFF
ON
ON
OFF
OFF
