APPENDICES
A
Appendix 1 Details of I/O Signals Appendix 1.1 Input signal
(7) Maximum value/minimum value reset completed flag (XD)
Maximum value/minimum value reset completed flag (XD) turns ON after resetting the maximum or minimum
values stored in CH Maximum value (Un\G30, Un\G32, Un\G34, Un\G36) and CH Minimum value (Un\G31,
Un\G33, Un\G35, Un\G37) by turning Maximum value/minimum value reset request (YD) OFF → ON → OFF.
(8) A/D conversion completed flag (XE)
A/D conversion completed flag (XE) turns ON when all A/D conversion-enabled channels are converted.
(9) Error flag (XF)
Error flag (XF) turns ON when an error occurs.
(a) Clearing the latest error code and Error flag (XF)
Turn Error clear request (YF) OFF → ON → OFF.

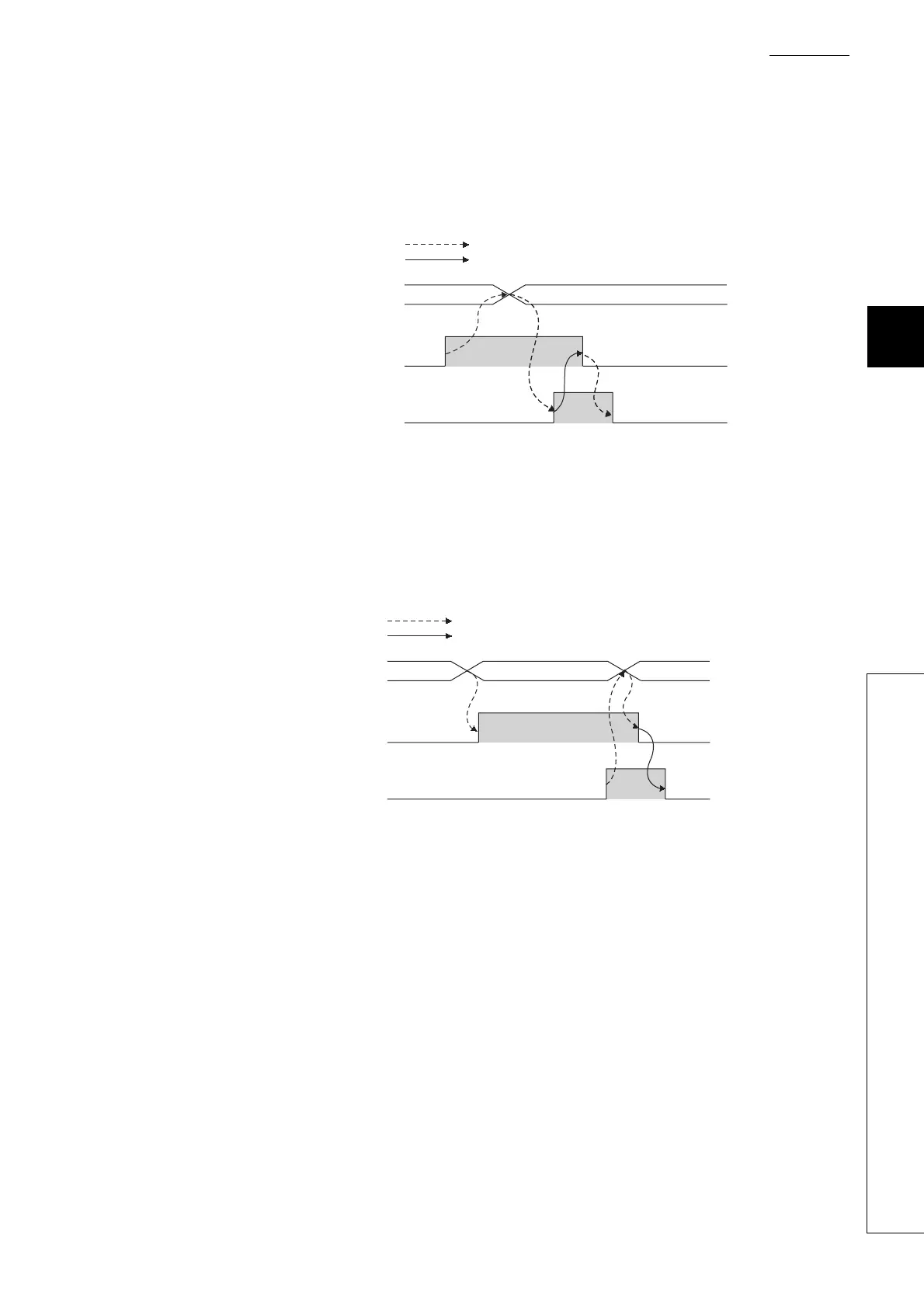

Maximum value/minimum value
storage area (Un\G30 to Un\G37)
Maximum value/minimum value
reset request (YD)
Maximum value/minimum value
reset completed flag (XD)
Controlled by the A/D converter module
Controlled by the program
ON
ON
OFF
OFF
Error
Latest error code (Un\G19)
Error flag (XF)
Error clear request (YF)
Controlled by the A/D converter module
Controlled by the program
OFF
OFF
ON
00
ON
