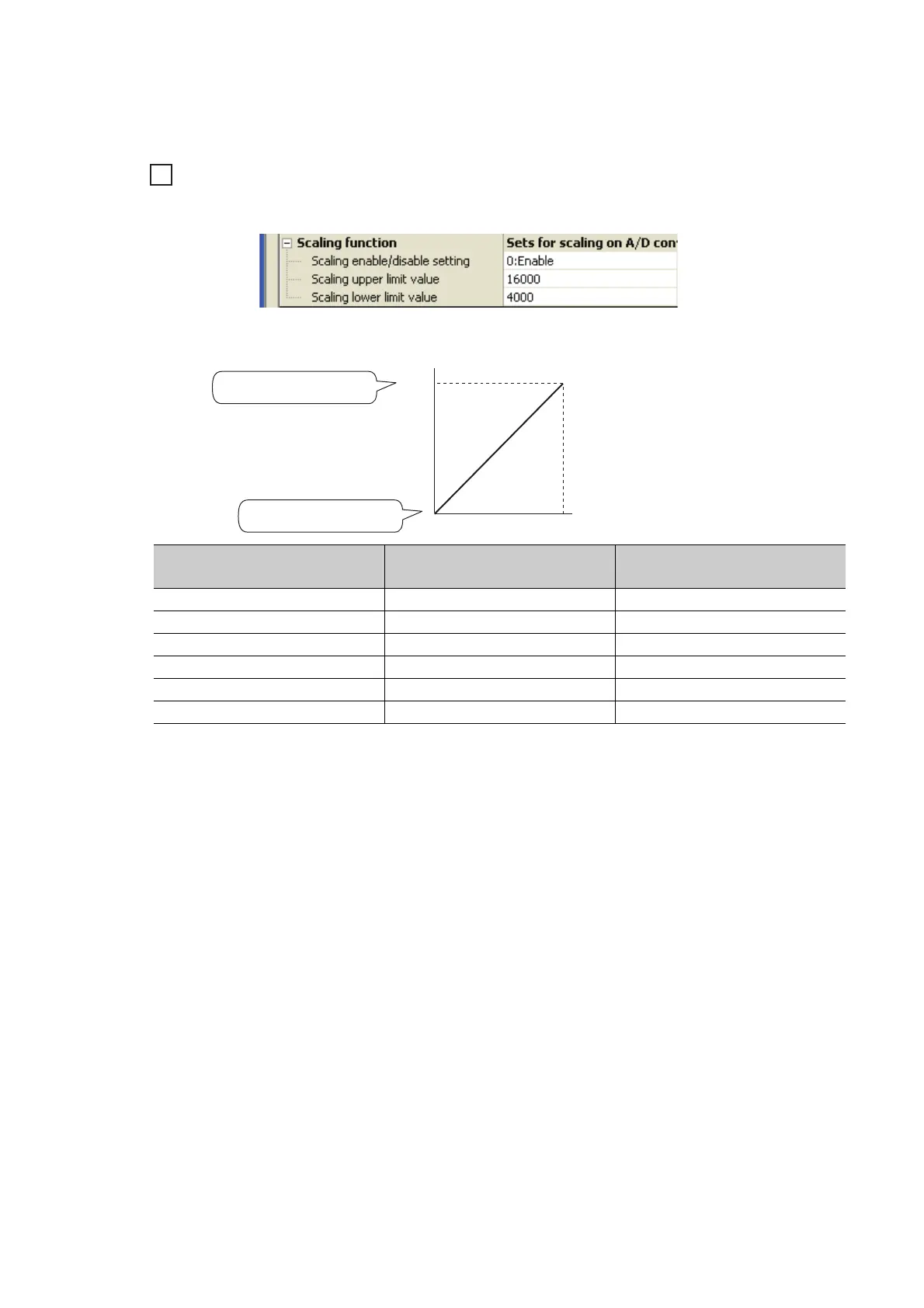

(4) Example of scaling setting
1. When values are set for a channel with input range of 0 to 5V as follows:
• "Scaling upper limit value": 16000
• "Scaling lower limit value": 4000
The digital output values and scaling values (digital operation values) are as follows:
Analog input voltage (V) Digital output value
Scaling value
(digital operation value)
0 0 4000
1 4000 6400
2 8000 8800
3 12000 11200
4 16000 13600
5 20000 16000
Ex.
Digital output value
20000
0
50
Analog input voltage (V)
Scaling upper limit value 16000
Scaling lower limit value 4000
