CHAPTER 8 FUNCTIONS
8
8.11 Shift Function
The initial value of the shifting amount to conversion value is 0.
If the digital output value exceeds the range of -32768 to 32767 as a result of shift addition, the digital output value is fixed to
the lower limit value (-32768) or the upper limit value (32767).
(3) Setting example
When the following settings are used for a channel with input range of -10 to 10V:
• "Shifting amount to conversion value": 20000

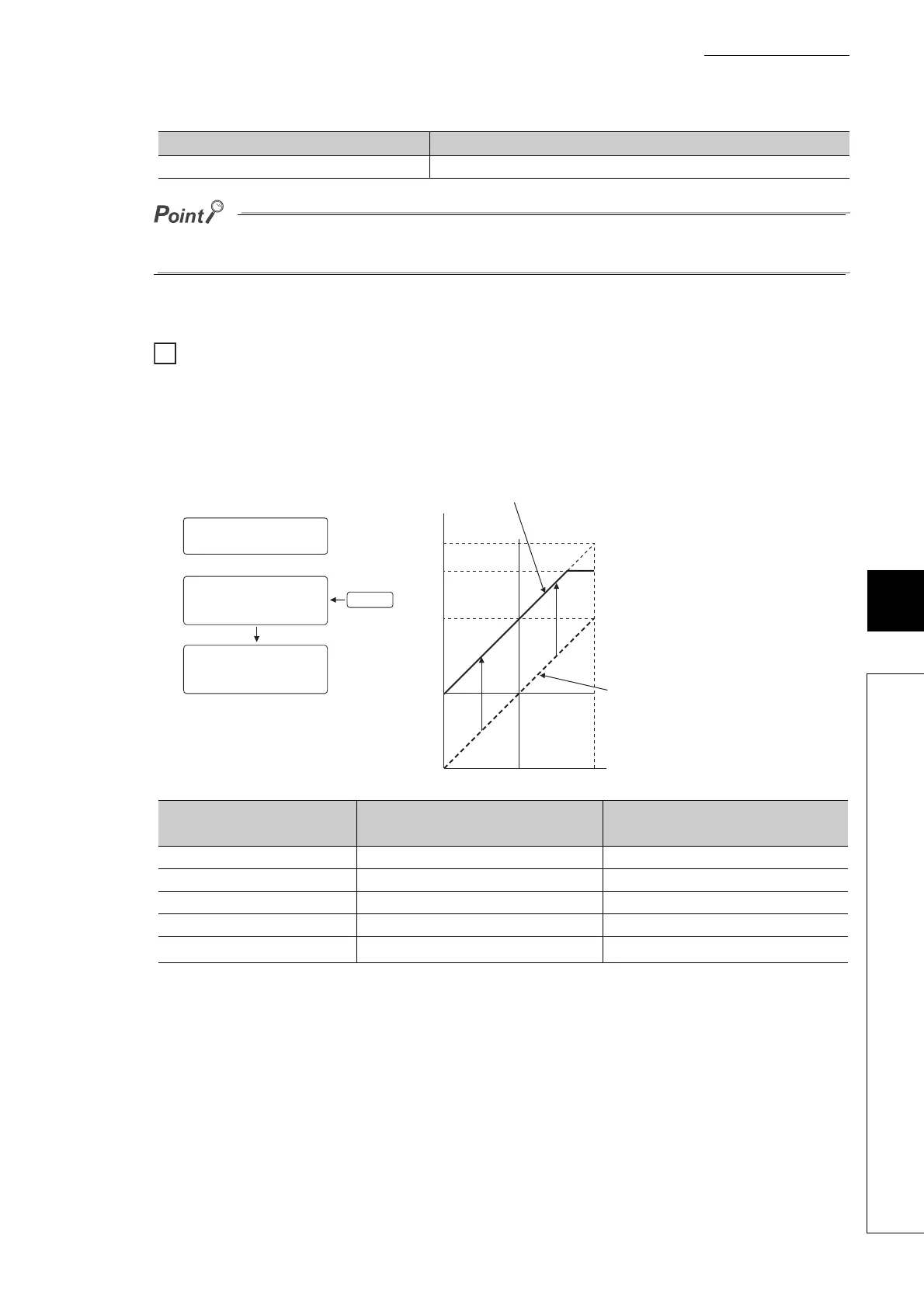

The following figure and table show CH1 Digital output value (Un\G11) and CH1 Scaling value (digital operation
value) (Un\G54).
*1 Since the value exceeds the range of -32768 to 32767, it is fixed to 32767 (the upper limit value).
Item Setting range
Shifting amount to conversion value -32768 to 32767
Input voltage (V) CH1 Digital output value (Un\G11)
CH1 Scaling value (digital
operation value) (Un\G54)
-10 -20000 0
-5 -10000 10000
0 0 20000
5 10000 30000
10 20000
32767
*1
Ex.
1) Digital output value
(before adjustment)
20000
32767
40000
0
-20000
1050-5-10
Analog input voltage (V)
2) Scaling value
(digital operation value)
(after adjustment)
CH1 Shifting amount
to conversion value
(Un\G150)
2) CH1 Scaling value
(digital operation value)
(Un\G54)
1) CH1 Digital output value
(Un\G11)
+20000
+
