TORQUE SPRING GOVERNOR SYSTEM
24.4 Inspection
Remove the gear case and inspect the governor. When
removing the gear case, be sure to remove the tie-rod
cover by the side of the fuel pump and disconnect the
tie-rod from the rack. If any parts are found defective,
replace them.
Model A B C Identification color
L3A-61TG, L3A-61ES, L3C-61DA, L3C-61ES,
L3E-61DA, L3E-31NSA, L3E2-61ES, L3E2-62ES,
L3E2-63ES, L2E-61GS, L3E2-63ESA, L2A-61DA,
L2E–61ES, L2E–61DA
570 570 550 Green
L2E–62PL 1520 1520 1500 Red
L3E-61TG, L3A-61A, L3C-61A, L3C-61TG, L3E-61A,
L3E-61SC, L3E-61SA, L3E-61DS, L3E-61SHS,
L3E-61LS, L3E-61KL, L2A-61A, L2C-61A, L2C-61CV,
L2E-61A, L2E-61SC, L2E-61SA, L2E-61WH,
L2E–61HMG, L2E–61IR
970 970 950 Yellow
L3C2–62TG, L3E2–62TG, L3A–61RG, L3E–61RG 1270 1270 1250 Purple
Table 44 Applying loads
NOTE
The applying loads (A, B, C) differ depending on
engine model.

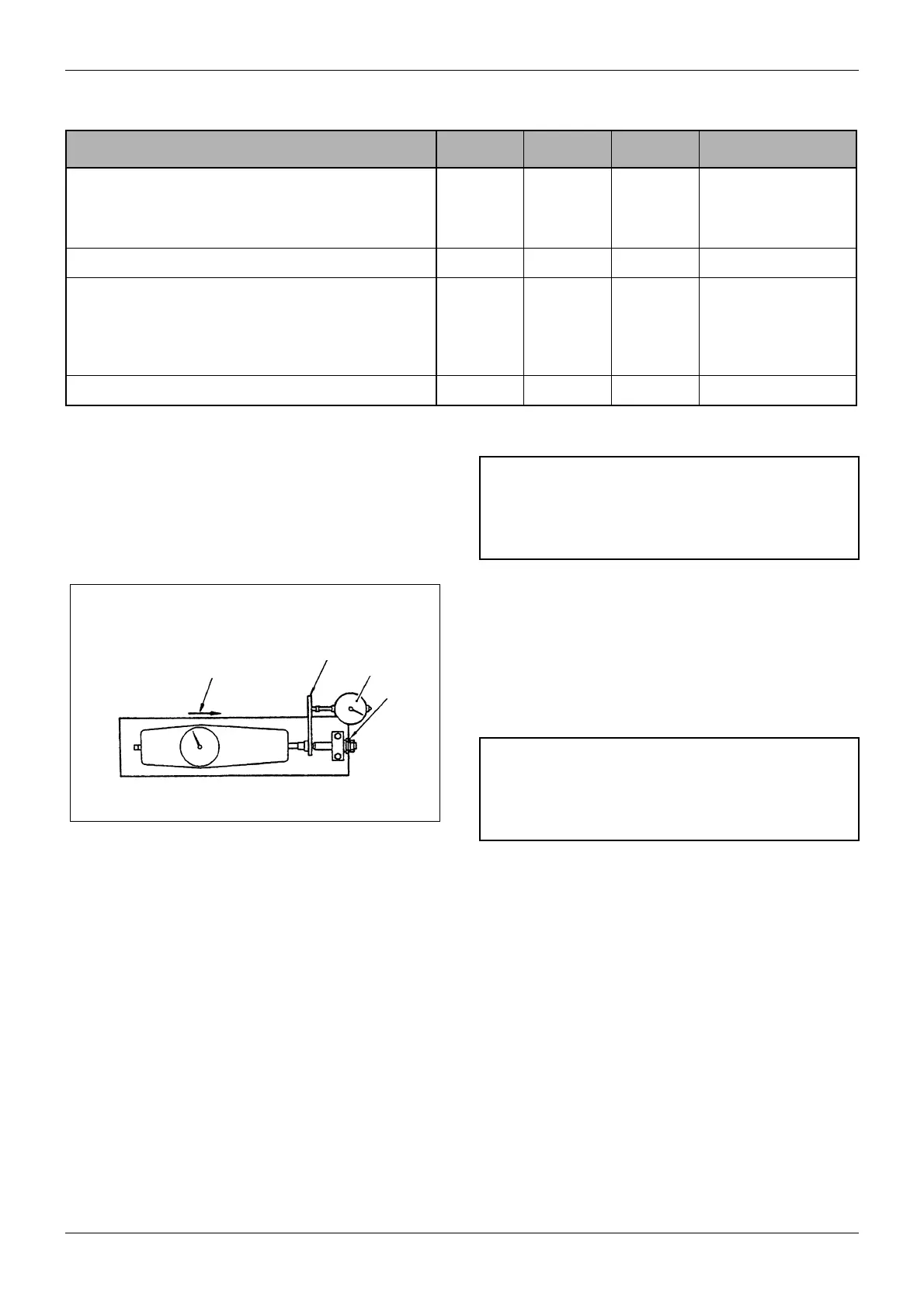

Figure 107 Inspecting torque spring
Slideable scale
Block gage
Dial
gage
Special
nut
CAUTION
When the governor is assumed to be malfunctioning,
check the bearing on the gear case side, too.
