Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
GENERAL
ENGLISH
COOLING SYSTEM
25.2 Disassembly
Disassembly sequence
1. Cooling fan
2. Water pump pulley
3. Water pump assembly
4. V-belt
5. Thermostat
6. Thermostat fitting
7. Thermoswitch
8. Bypass pipe

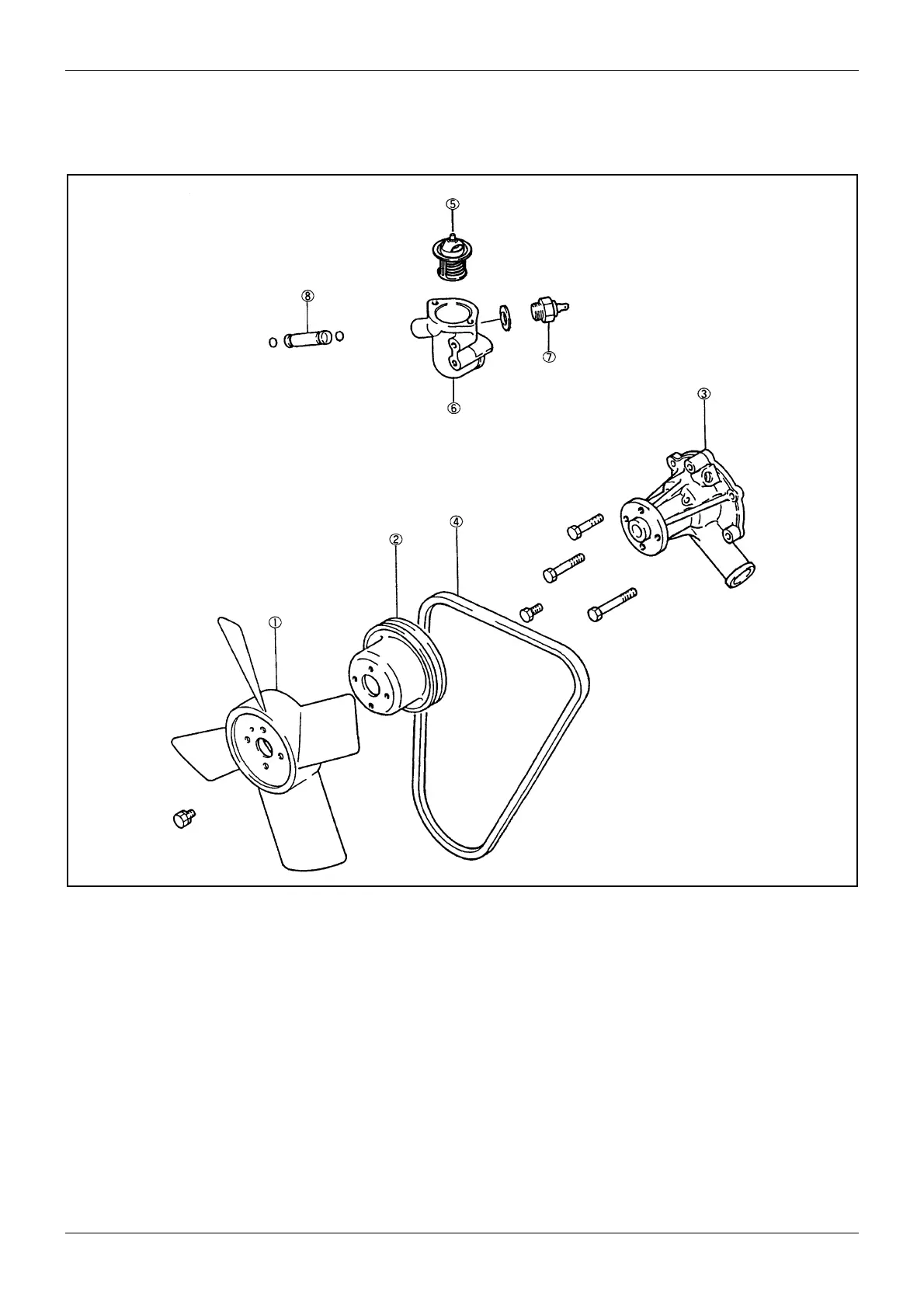

Figure 110 Cooling system component parts
