ALTERNATOR AND DYNAMO ELECTRICAL SYSTEM
5. Unsolder the stator coil lead wires. Remove the
stator assembly.
6. Disconnect the capacitor from terminal ìBî.
7. Loosen the rectifier mounting screws and remove
the rectifier.
33.7 Inspection
Inspect the disassembled parts. If any part is found
defective, replace.
CAUTION
a. Soldering must be done in short time.
b. Never heat the lead wires too long to prevent
damage to diodes.
Break and short circuit
Crack and damage
Crack and damage
Break and short circuit
Wear
Wear to limit line
Wear and roughness

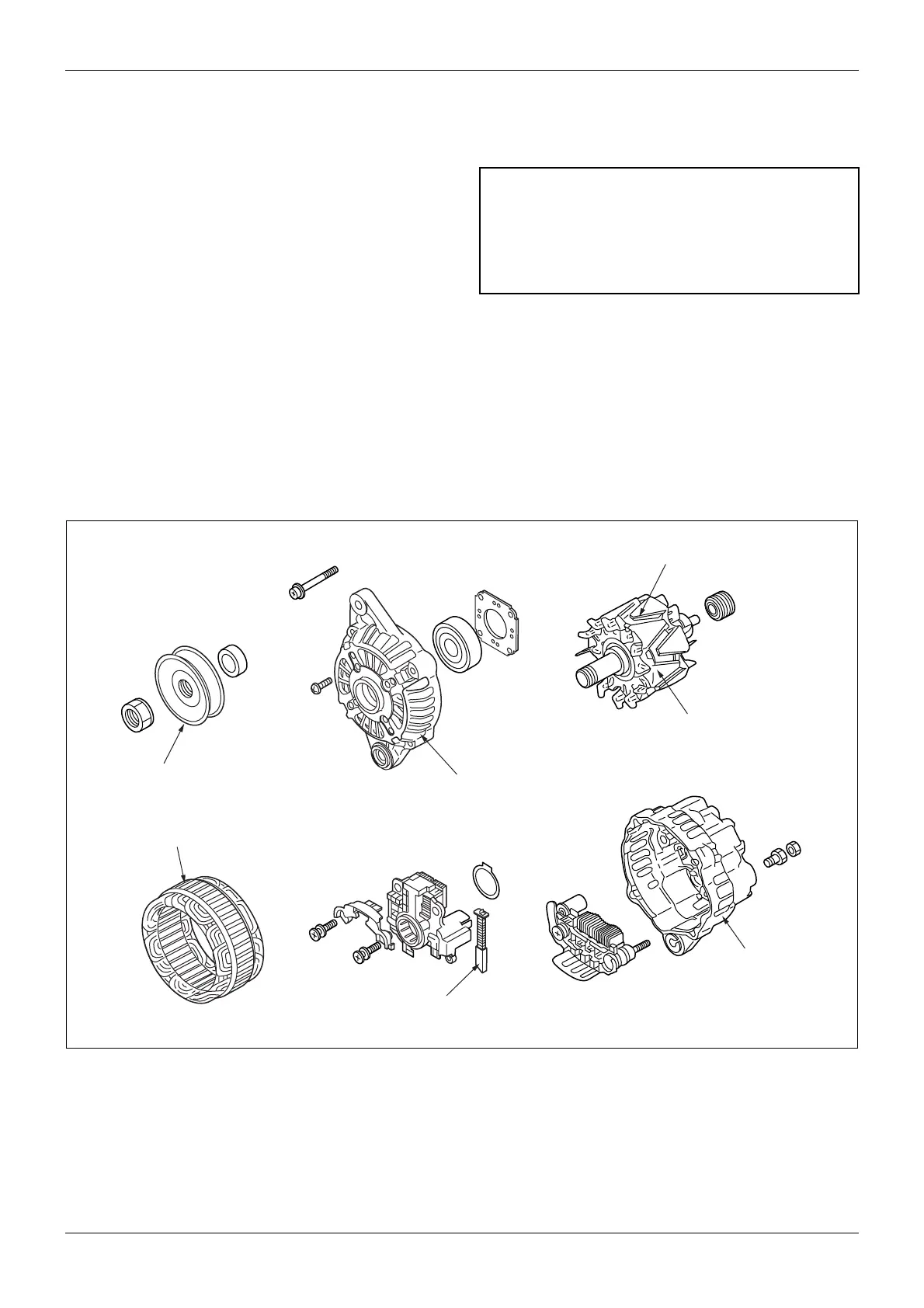

Figure 138 Inspection of alternator

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
