Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
CYLINDER HEAD ENGINE MAIN PARTS
9.6 Installation
Installation sequence of the cylinder head is reverse
order of removal. Pay attention to the following:
1. Renew the cylinder head gasket. Any sealant is
not necessary. The engine model is printed on the
upper front of the gasket. Be careful not to confuse
with a gasket for other engine model.
2. Tighten the cylinder head bolts in the numerical
order shown in the figure at right. Tighten each bolt
a little two or three times in total until all are
tightened to the specified torque.
3. When connecting the injection pipe assembly,
loosen the pipe clamp first.
When tightening the nut at each end of pipe, hold
the nozzle holder or delivery valve holder with a
wrench to prevent from being turned together with
the nut.
Also, be careful not to allow dust to enter the fuel
line.

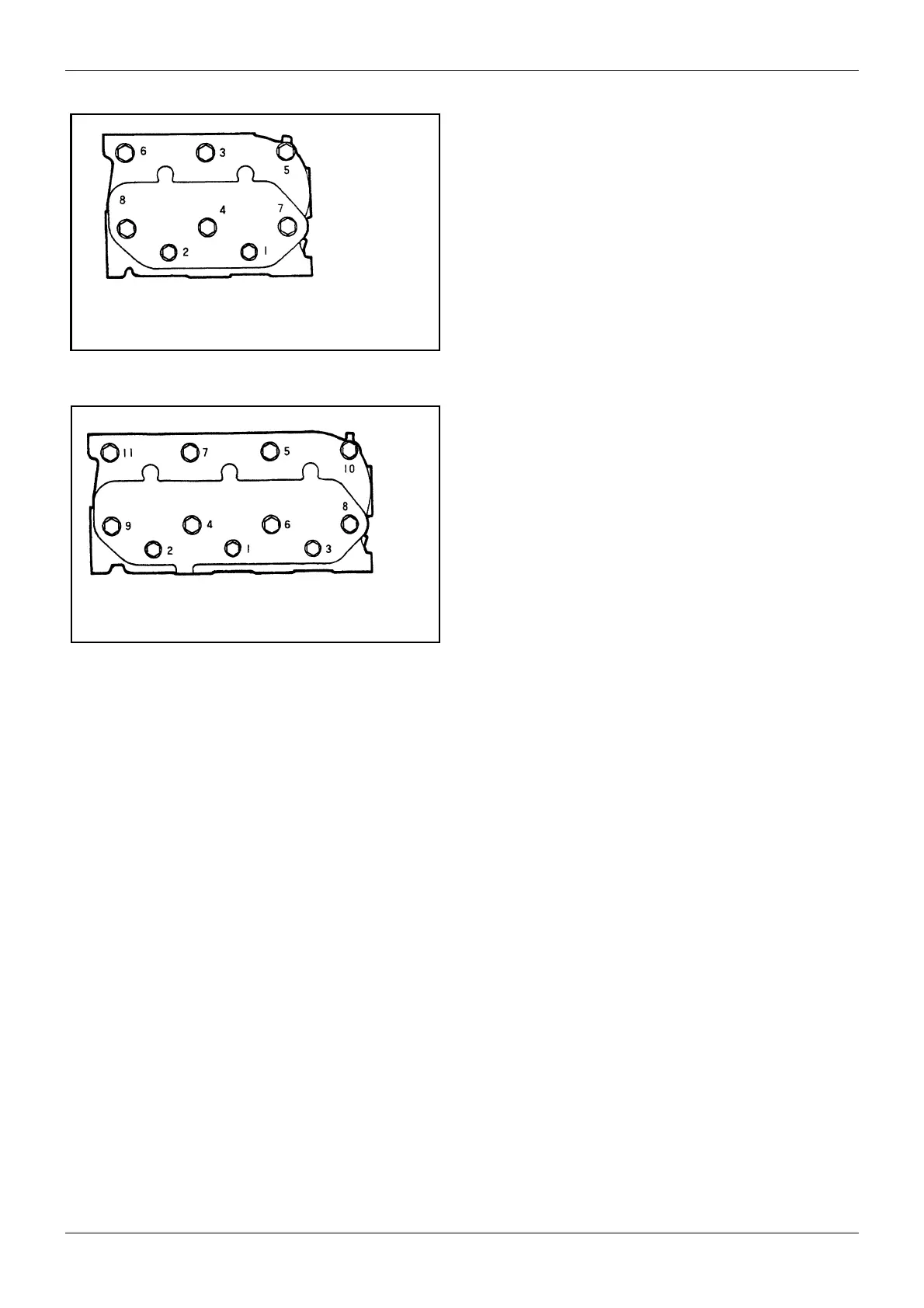

Figure 41 Sequence for tightening cylinder head
bolts (L2)
Figure 42 Sequence for tightening cylinder head
bolts (L3)
