Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
CYLINDER HEAD ENGINE MAIN PARTS
ENGINE MAIN PARTS
9 CYLINDER HEAD
9.1 Disassembly
Disassembly sequence
1. Cylinder head
2. Valve guide
3. Cylinder head bolt (main bolt)
4. Cylinder head bolt (sub-bolt)
5. Seat ring (3600 min
-1
specification engine)
6. Water outlet fitting
7. Cylinder head gasket
8. Mouth piece
9. Thermostat
10. Thermostat fitting
Cylinder head cross section

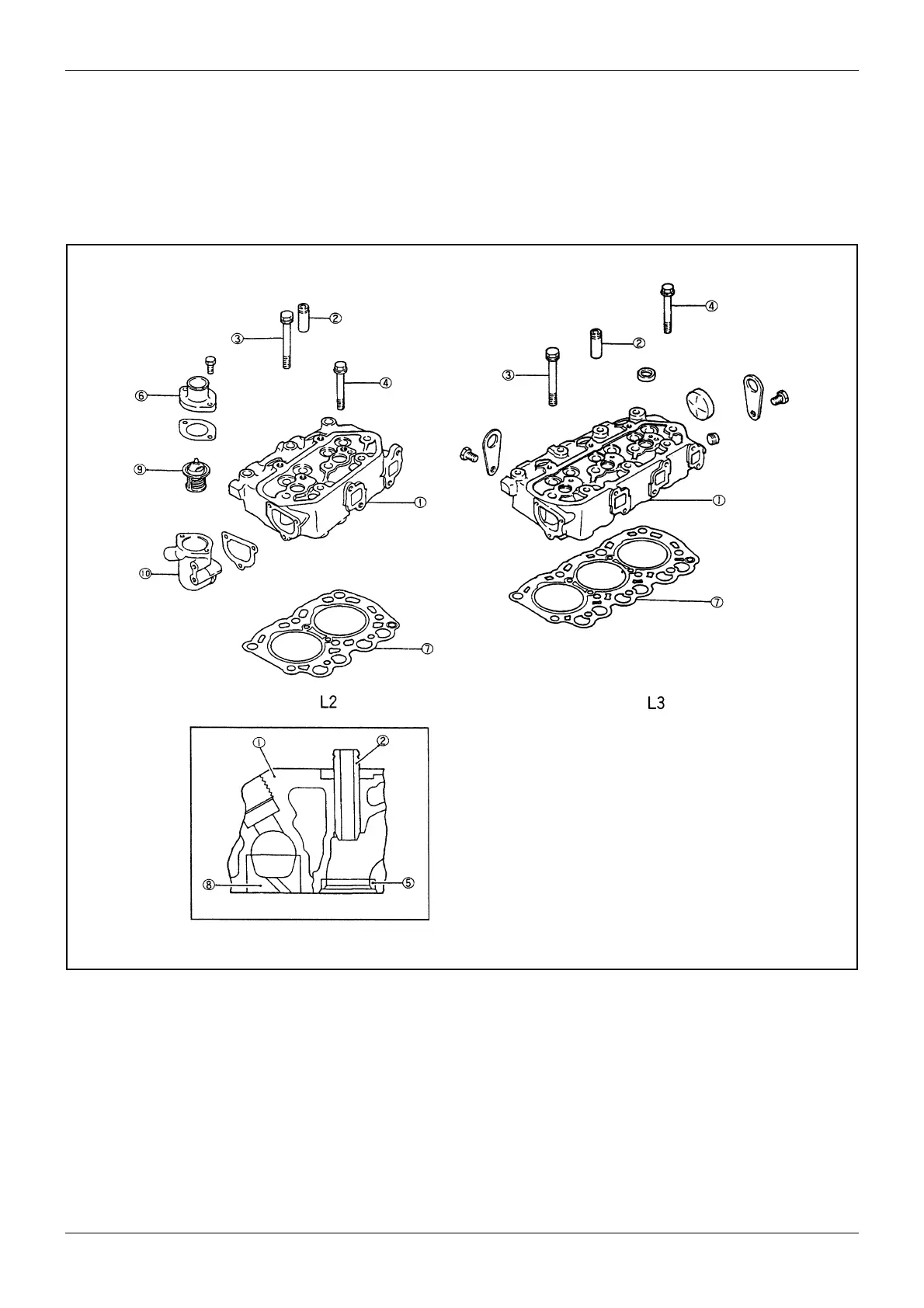

Figure 33 Cylinder head component parts
