Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
TIMING GEARS
ENGLISH
ENGINE MAIN PARTS
13.4 Installation of timing gears
1. Press-fit the crankshaft gear onto the shaft.
2. Press-fit the gears to the camshaft (valve camshaft
and injection pump camshaft).
3. Install the gears in the following sequence.
a Turn the crankshaft to set the No. 1 cylinder to
top dead center on compression stroke.
b Install the valve camshaft and injection pump
camshaft.
c Install the idle gear aligning with the timing
marks of other gears.
d Confirm the positions of timing gears again.

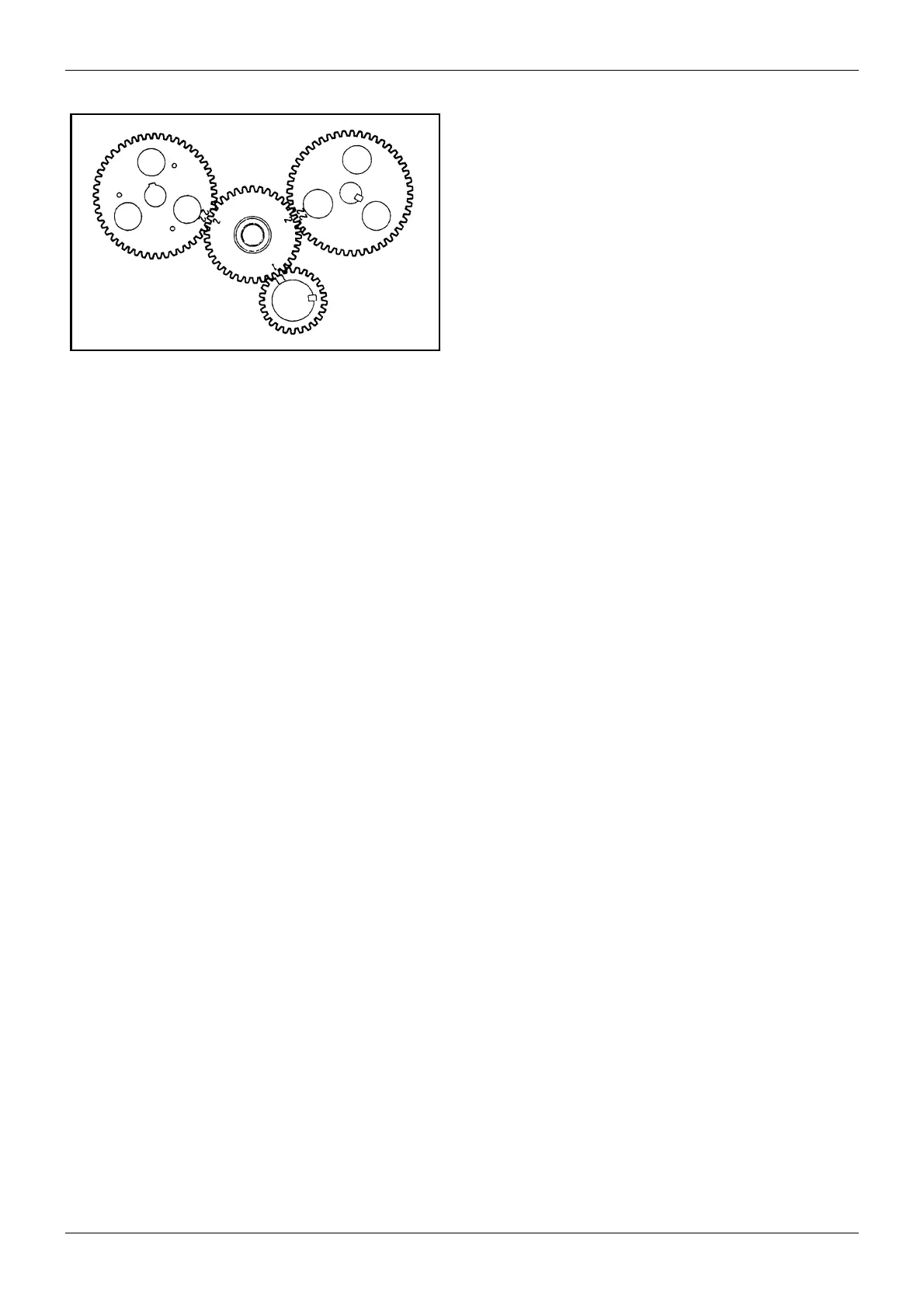

Figure 61 Timing gears in alignment

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
