Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
ROCKER ARMS AND ROCKER SHAFT ENGINE MAIN PARTS
ENGINE MAIN PARTS
8 ROCKER ARMS AND
ROCKER SHAFT
8.1 Disassembly
Disassembly sequence
1. Oil filter cap
2. Breather hose
3. Rocker cover
4. Rocker cover gasket
5. Rocker shaft
6. Rocker spring
7. Adjust screw
8. Rocker arm
2
2
3
4
5
6
3
7
8
9
4
5
6
8
7
L2
L3
9
1

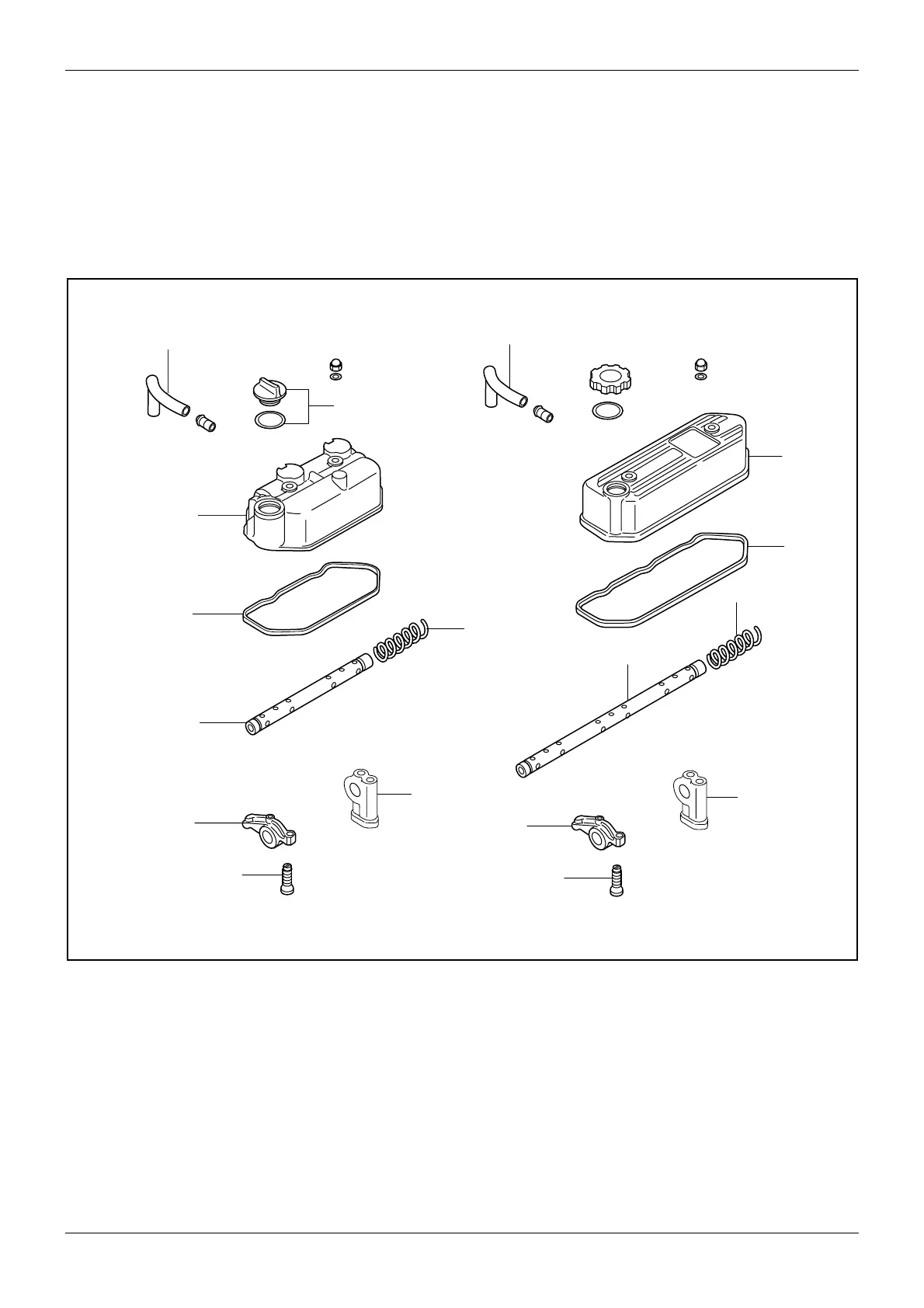

Figure 30 Rocker system components parts
