INLET MANIFOLD AND EXHAUST
MANIFOLD ENGINE MAIN PARTS
ENGINE MAIN PARTS
11 INLET MANIFOLD AND
EXHAUST MANIFOLD
11.1 Disassembly
Disassembly sequence
1. Inlet pipe
2. Inlet manifold
3. Exhaust manifold
4. Inlet manifold gasket
5. Exhaust manifold gasket
11.2 Inspection
Check the following matters. If any defect is found,
repair or replace the manifold.
Tightening torque:
7.85 to 9.80 N²m
(0.8 to 1.0 kgf²m)
[5.79 to 7.23 lbf²ft]
Tightening torque:
14.7 to 21.6 N·m
(1.5 to 2.2 kgf·m)
[10.85 to 15.91 lbf·ft]
1
2
2
4
4
5
5
3
3
L2
L2
L3
L3

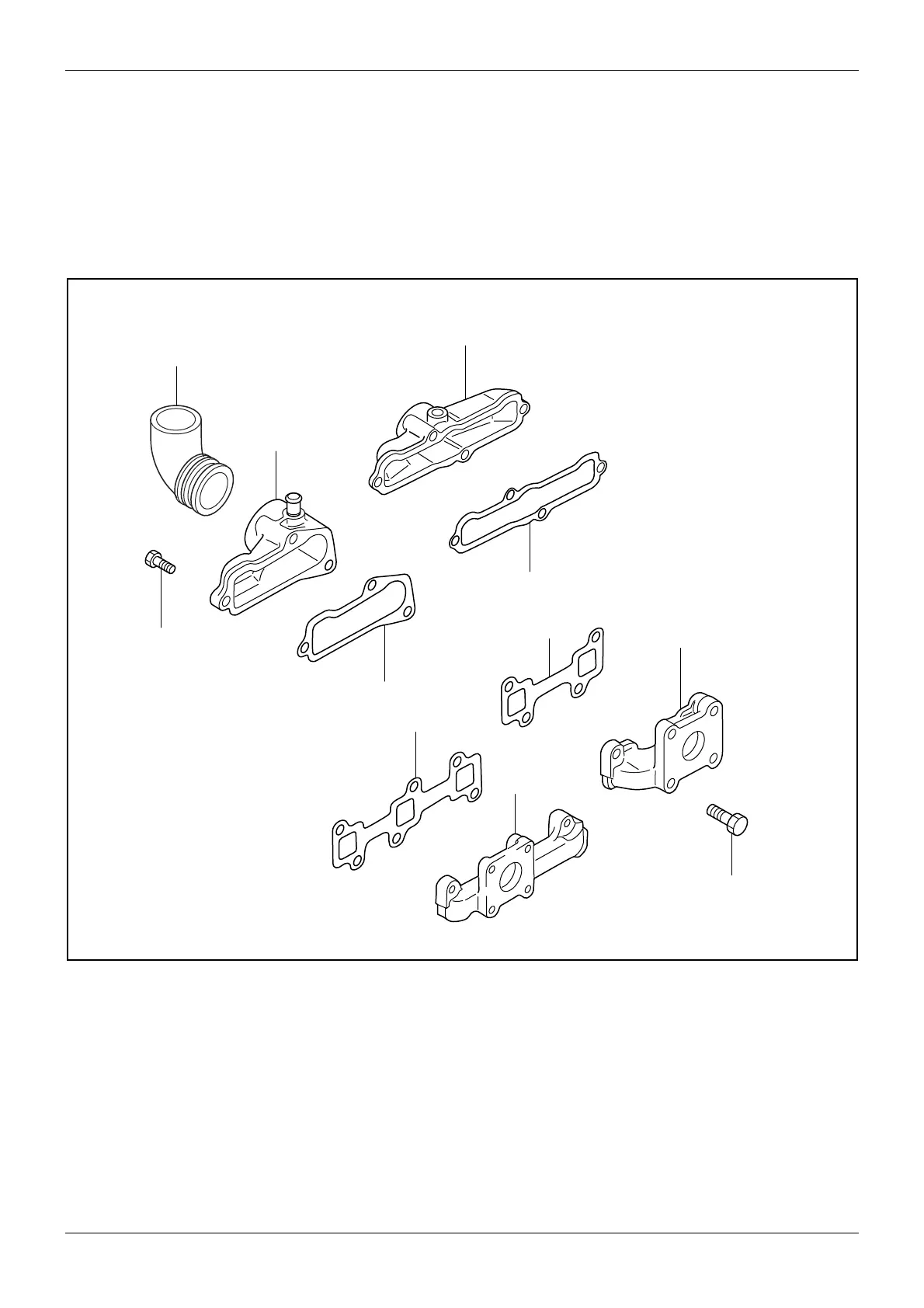

Figure 49 Manifold component parts

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
