Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
PISTON AND CONNECTION ROD ENGINE MAIN PARTS
ENGINE MAIN PARTS
15 PISTON AND
CONNECTION ROD
15.1 Disassembly
Disassembly sequence
1. Piston ring No. 1
2. Piston ring No. 2
3. Oil ring
4. Piston
5. Piston pin
6. Connecting rod
7. Connecting rod bearing
8. Connecting rod cap
9. Connecting rod bolt
10. Connecting rod nut
1
2
3
4
5
6
7
8
9
10

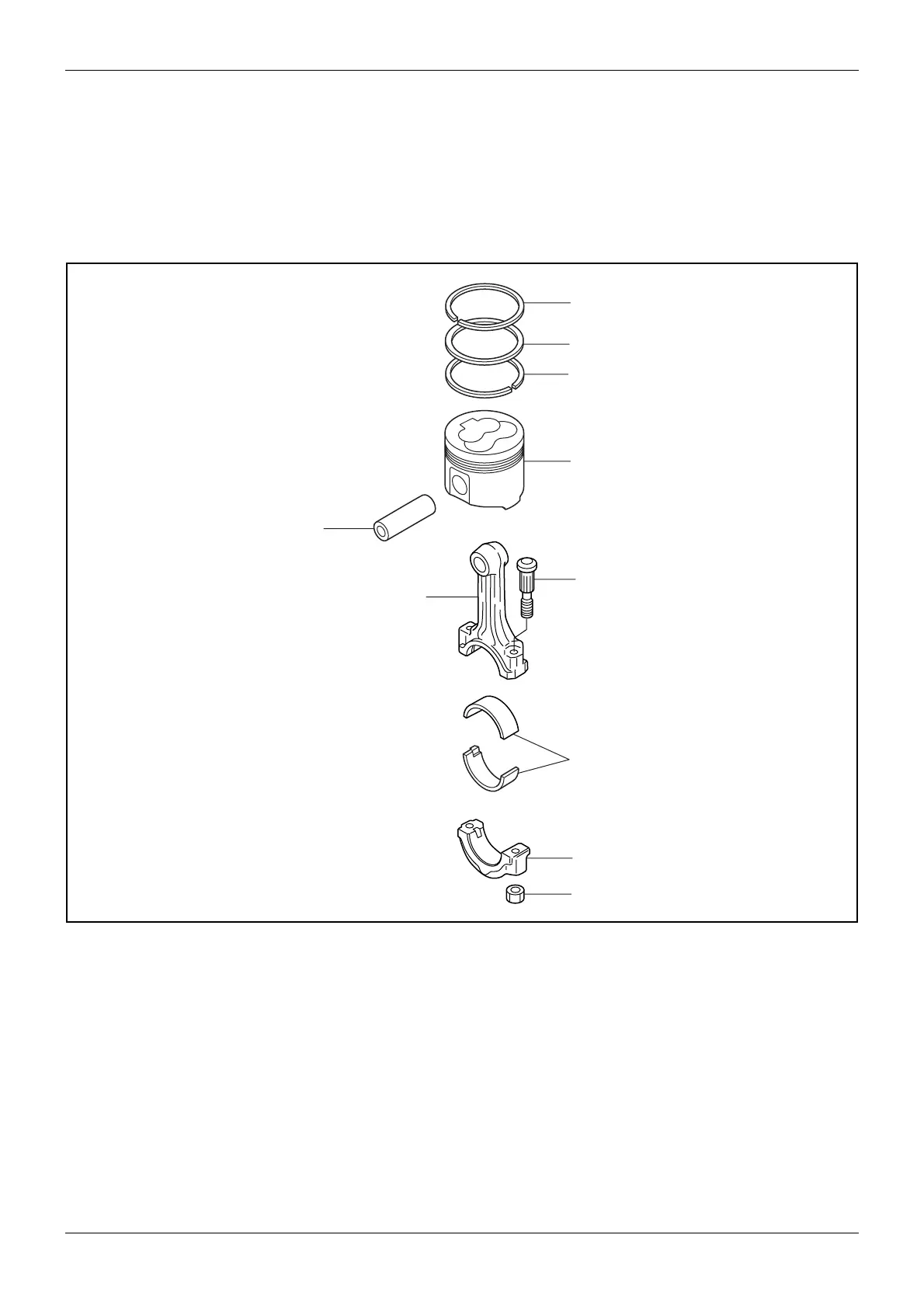

Figure 66 Piston and connecting rod component
parts
