Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
GEAR CASE AND OIL PUMP ENGINE MAIN PARTS
ENGINE MAIN PARTS
12 GEAR CASE AND OIL
PUMP
12.1 Disassembly
Common to L2 and L3
Disassembly sequence
1. Bushings
2. Plug
3. Gear case
4. Front oil seal
5. Relief plunger
6. Relief spring
7. Oil pump inner gear
8. Oil pump outer gear
9. Oil pump housing
10. Gear case gasket
11. High-pressure pump gear housing
12. Housing gasket

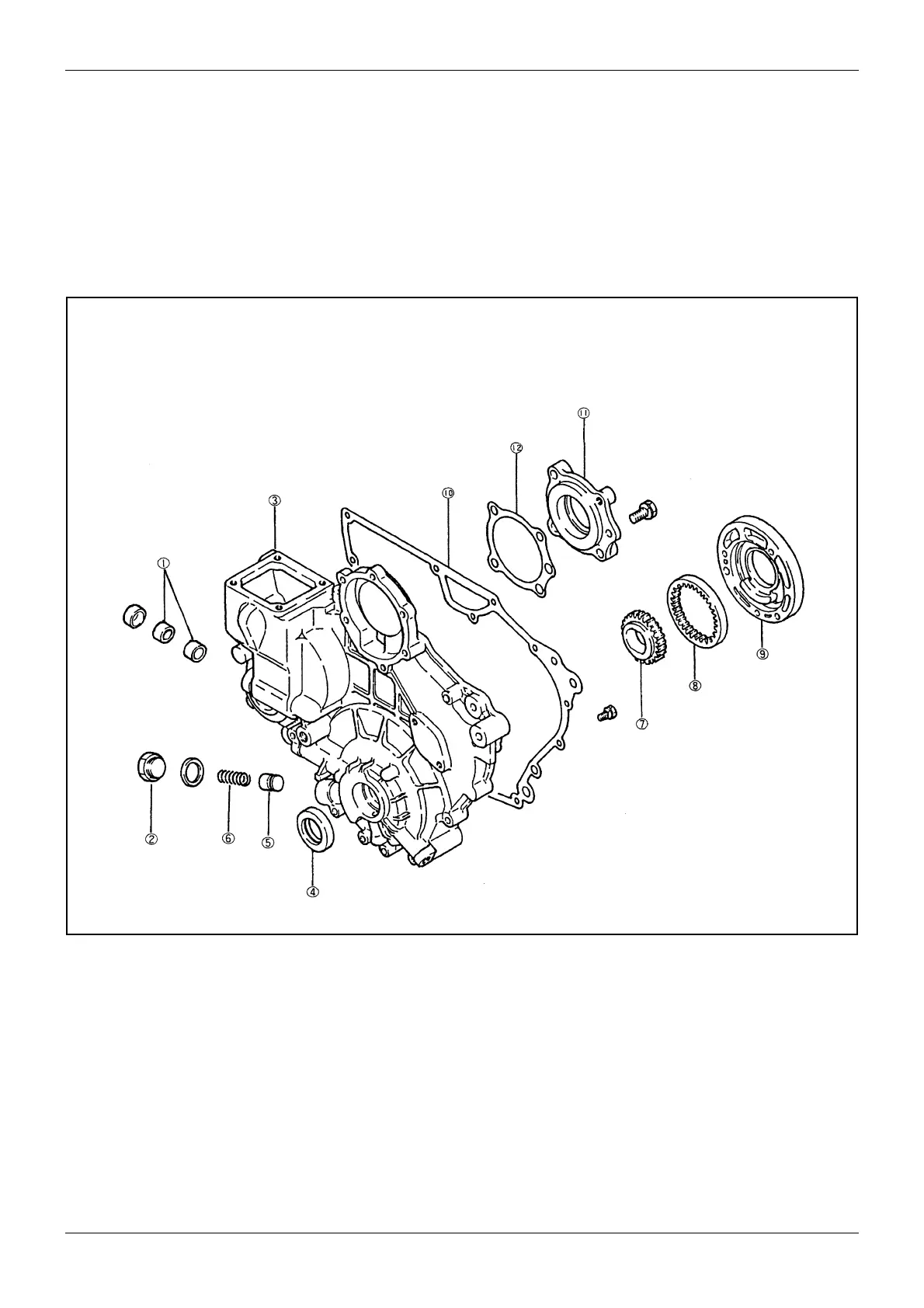

Figure 50 Gear case component parts
