Mitsubishi L2E Service Manual

125 / 155
Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
STARTER
ENGLISH
ELECTRICAL SYSTEM
32.3 Disassembly
1. Disconnect wire from the magnetic switch terminal
“M”.
2. Loosen two screws fastening the magnetic switch.
Remove the magnetic switch assembly.
3. Remove two through bolts and two screws
fastening the brush holder. Remove the rear
bracket.
4. With two brushes brought in floating state, remove
the yoke-and-brush holder assembly. Then, pull
the armature out.
5. Remove the cover, pry the snap ring out and
remove the washer.
6. Unscrew the bolts and remove the center bracket.
At the same time, washers for opinion shaft end
play adjustment will be removed.
7. Pull out the reduction gear lever and lever spring
from the front bracket.
8. On the pinion side, pry the snap ring out, and pull
out the pinion and pinion shaft.
9. At each end of the armature, remove the ball
bearing with a bearing puller.
It is impossible to replace the ball bearing press-
fitted in the front bracket. If that bearing has worn,
replace the whole front bracket assembly.

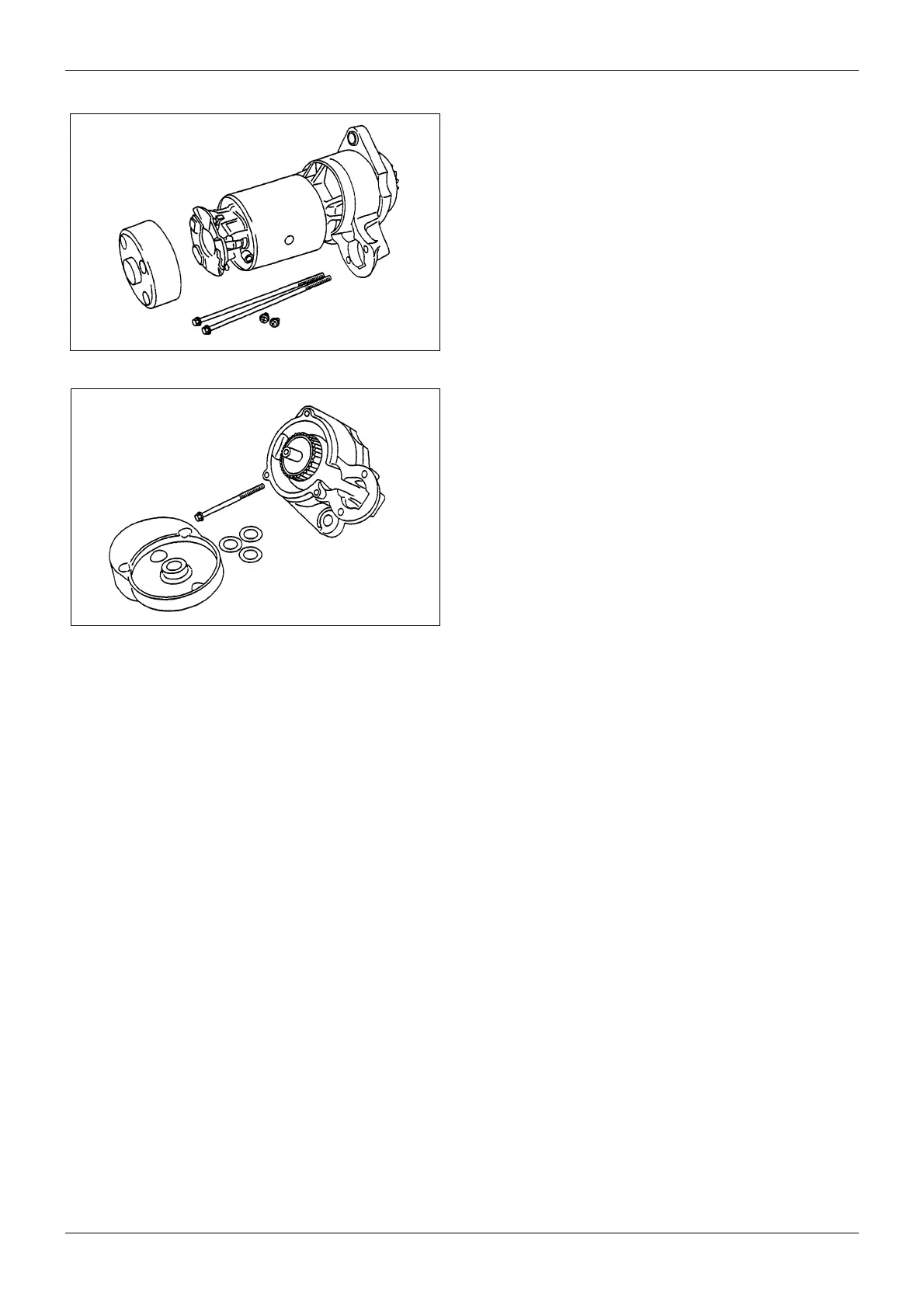

Figure 125 Removing brush holder assembly
Figure 126 Removing reduction gear

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
