STARTER ELECTRICAL SYSTEM
2. Attraction test. Connect a battery to the magnetic
switch terminal S and M. The pinion must protrude.
3. Holding test. With a battery connected to the
magnetic switch terminal “S” and to the starter
body, manually pull out the pinion fully. The pinion
must remain at that position when released from
holding by hand.
4. Return test. With a battery connected to the
magnetic switch terminal “M” and to the starter
body, manually pull out the pinion fully. The pinion
must return to its original position when released
from holding by hand.

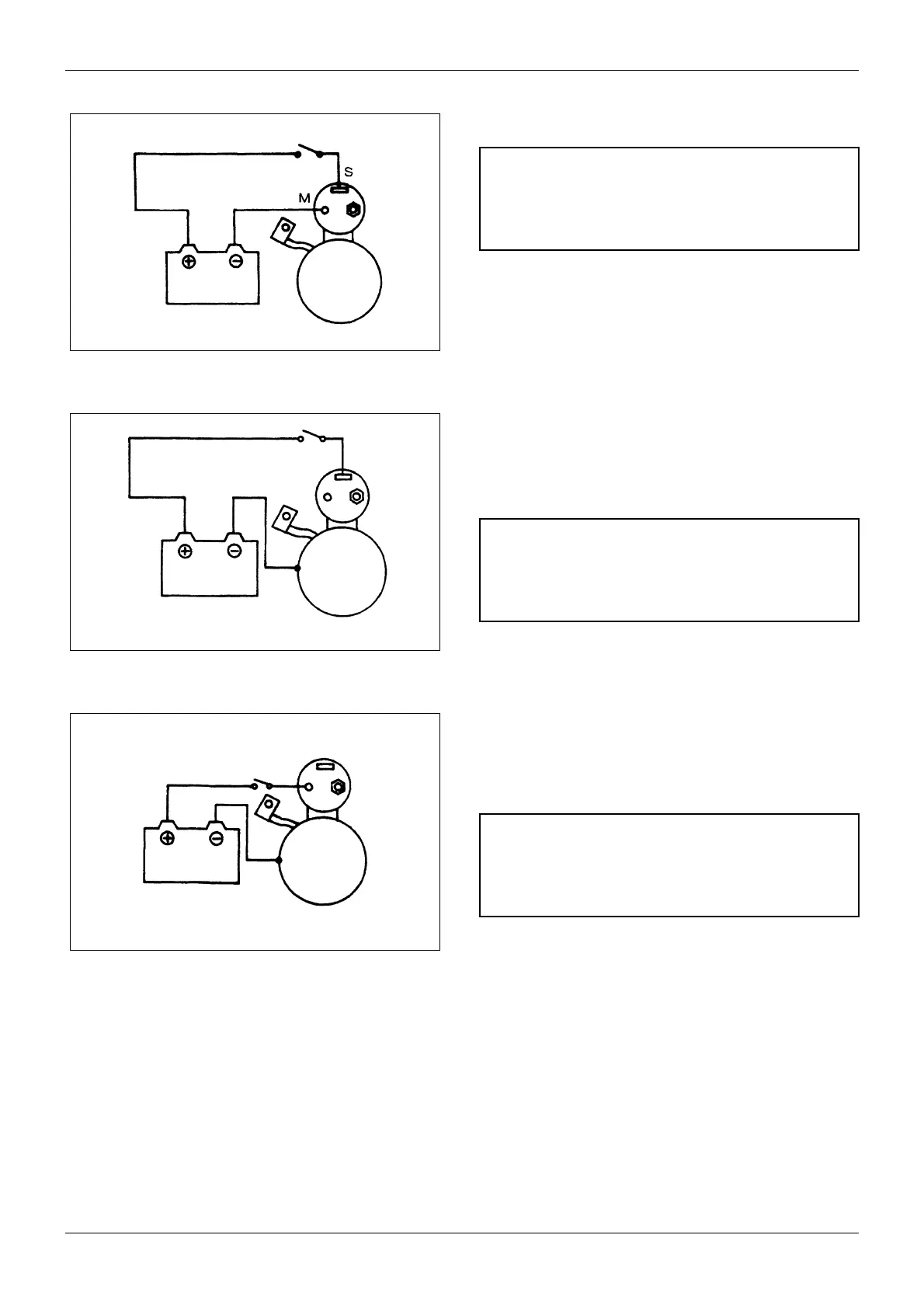

Figure 122 Attraction test
Starter
Battery
CAUTION
Do not apply battery current for more than 10
seconds.
Figure 123 Holding test
Body
Battery
Starter
CAUTION
Do not apply battery current for more than 10
seconds.
Figure 124 Return test
Body
Battery
Starter
CAUTION
Do not apply battery current for more than 10
seconds.

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
