FAN AND FAN BELT COOLING SYSTEM
COOLING SYSTEM
26 FAN AND FAN BELT
26.1 Fan belt inspection
For fan belt tension, see Maintenance (page xx).
I
26.2 Fan inspection
Check the fan for cracks, damage and deformation. If
any, replace the fan.

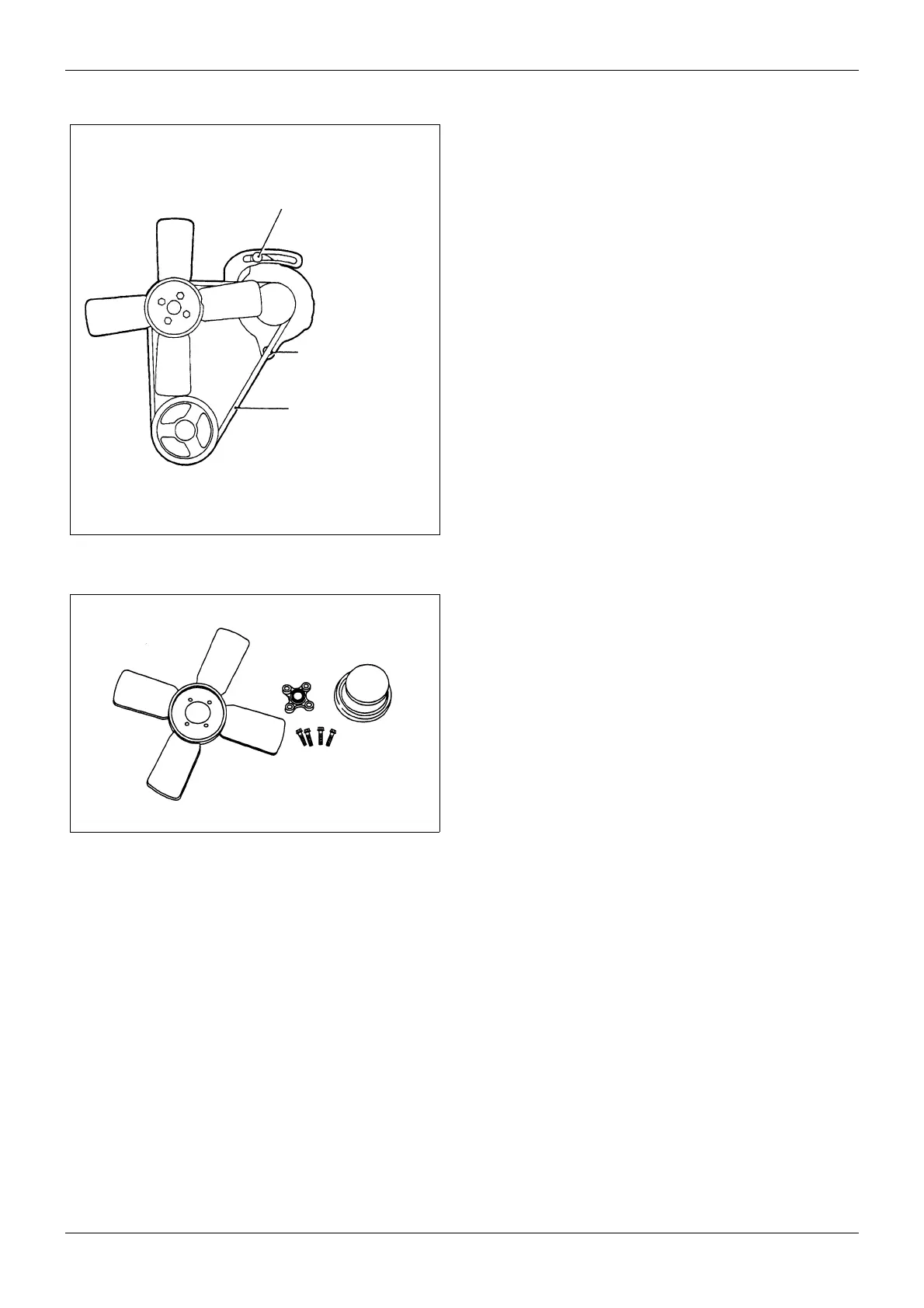

Figure 111 Inspecting fan belt
Wear of pulley
groove
11.8 to 14.7 N·m
(1.2 to 1.5 kgf·m)
[8.68 to 10.85 lbf·ft]
Elongation, aging,
wear and damage
19.6 to 24.5 N·m
(2 to 2.5 kgf·m)
[14.47 to 18.08 lbf·ft]
Tension
Figure 112 Inspecting fan

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
