Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
TIMING GEARS
ENGLISH
ENGINE MAIN PARTS
ENGINE MAIN PARTS
13 TIMING GEARS
13.1 Disassembly
Disassembly sequence
1. Crankshaft gear
2. Idle gear
3. Camshaft gear
4. Injection pump camshaft gear

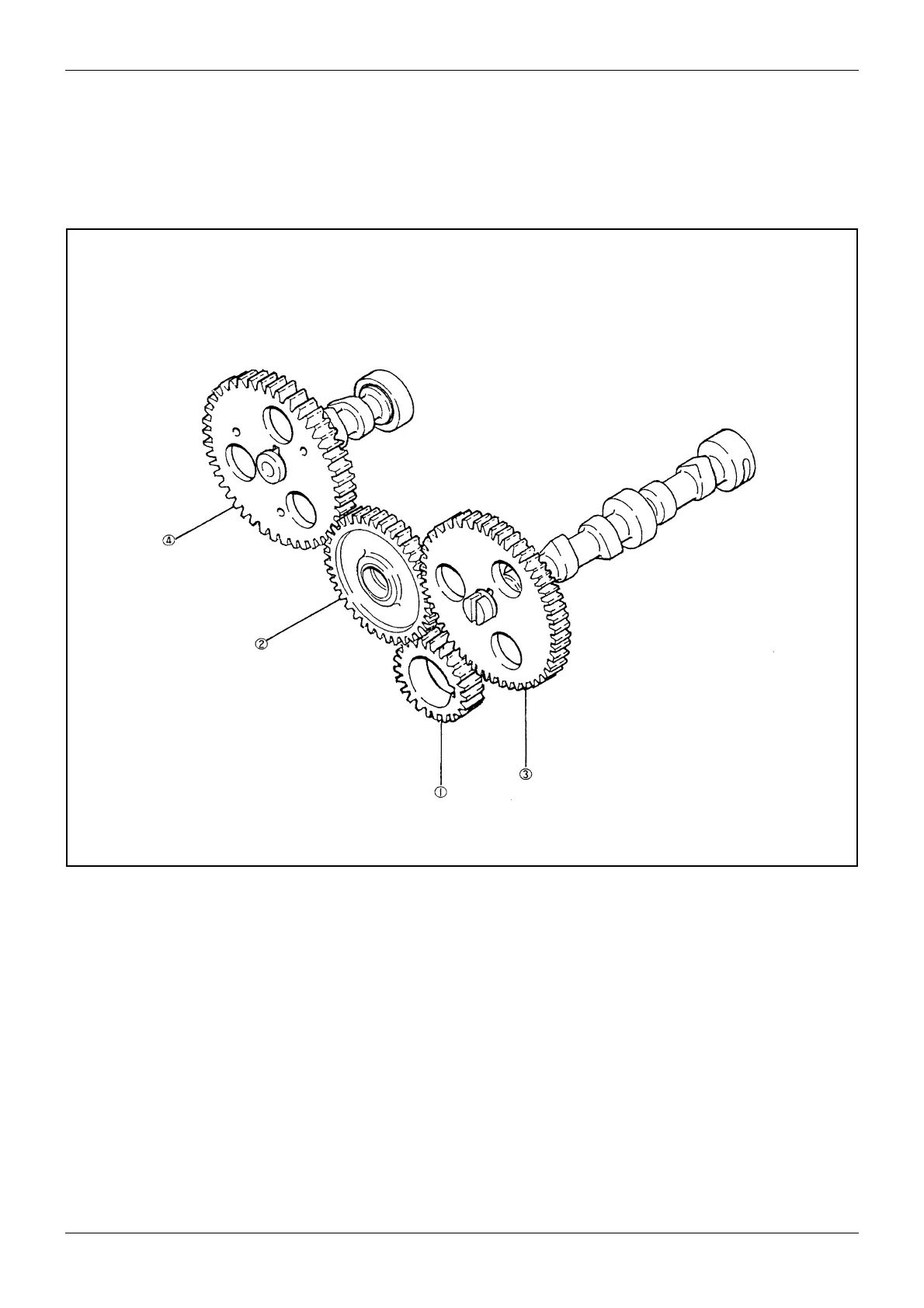

Figure 57 Timing gear component parts
