MAINTENANCE
ENGLISH
GENERAL
2. Thoroughly clean the filter mounting surface of the
filter bracket. Install the new filter with the O-ring
coated with engine oil and tighten securely by
hand.
3. Run the engine for several minutes and make sure
that no oil leaks.
4. After stopping the engine, check the oil level. If
necessary, add oil.
5.2 Retightening the cylinder head
bolts
When retightening the cylinder head bolts, drain out
coolant, loosen the bolts slightly, and then retighten the
bolts to the specified torque in the numerical order
illustrated at right.
The rocker assembly (the rocker arms, shaft and stays)
is to be kept removed when the cylinder head bolts are
retightened.
Unit: N·m (kgf·m) [lbf·ft]
Tightening torque 10.8 to 12.7 (1.1 to 1.3) [7.96 to 9.40]
Table 7 Tightening torque
CAUTION
Be careful not to twist the O-ring.

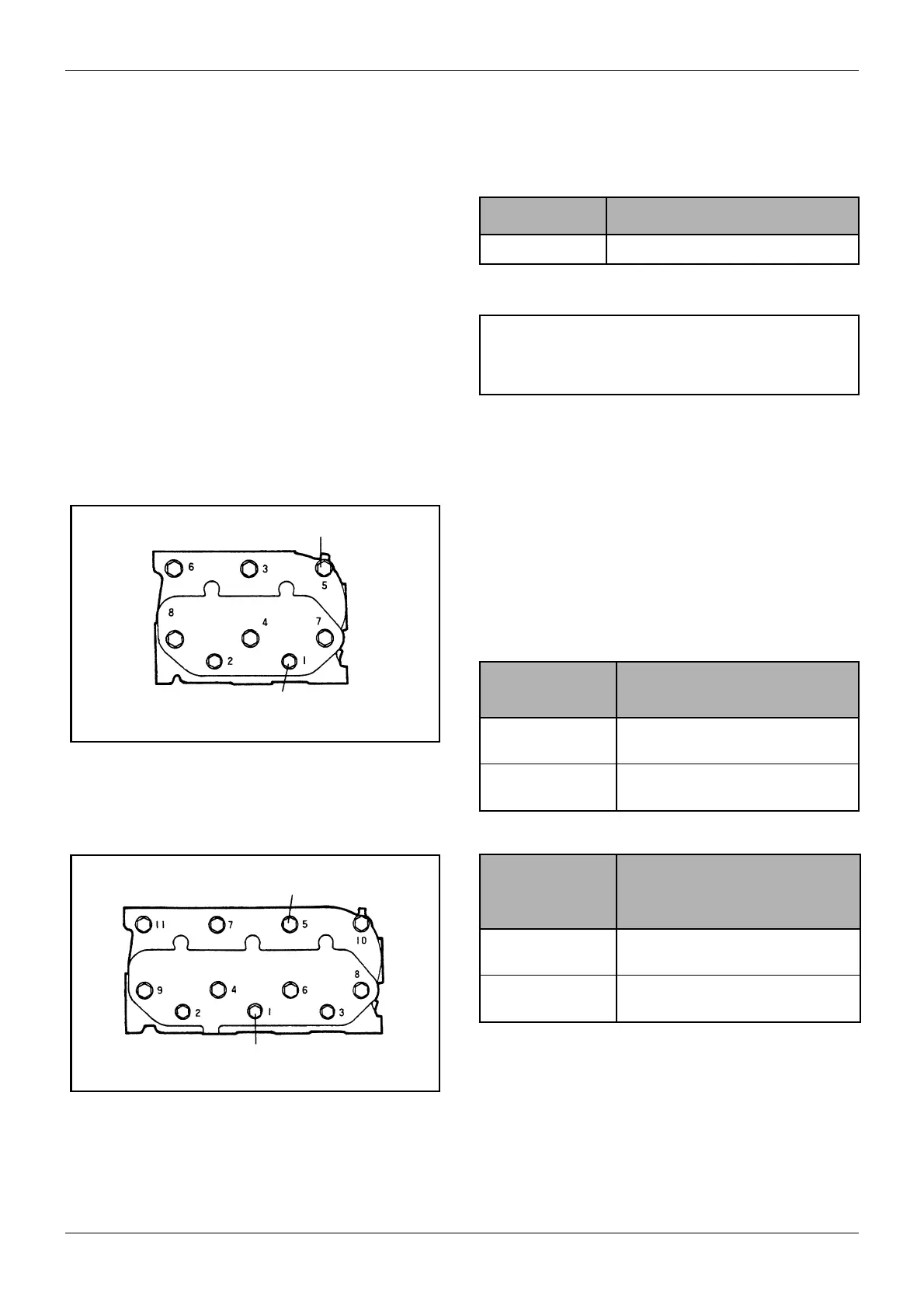

Figure 8 Cylinder head bolt tightening sequence
(L2)
M10 bolt: 73.5 to 83.4 N·m (7.5 to 8.5 kgf·m)
[54.25 to 61.48 lbf·ft]
M8 bolt: 19.6 to 29.4 N·m (2.0 to 3.0 kgf·m)
[14.47 to 21.70 lbf·ft]
Tightening
torque
Unit: N·m (kgf·m) [lbf·ft]
M10 bolt 73.5 to 83.4 (7.5 to 8.5)
[54.25 to 61.48]
M8 bolt 19.6 to 29.4 (2.0 to 3.0)
[14.47 to 21.70]
Table 8 Tightening torque
Figure 9 Cylinder head bolt tightening sequence
(L3)
M10 bolt: 73.5 to 83.4 N·m (7.5 to 8.5 kgf·m)
[54.25 to 61.48 lbf·ft]
M8 bolt: 19.6 to 29.4 N·m (2.0 to 3.0 kgf·m)
[14.47 to 21.70 lbf·ft]
Rocker stay
tightening
torque
Unit: N·m (kgf·m) [lbf·ft]
M10 bolt 73.5 to 83.4 (7.5 to 8.5)
[54.25 to 61.48]
M8 bolt 19.6 to 29.4 (2.0 to 3.0)
[14.47 to 21.70]
Table 9 Rocker stay tightening torque

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
