Mitsubishi L2E Service Manual

126 / 155
Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
STARTER ELECTRICAL SYSTEM
32.4 Inspection
Inspect the following:
Insulation
Break and short circuit
Bearing: Play, noise
and rough rotation
One-way mechanism
Break and short circuit
Wear and
chipping
Bearing: Play, noise
and rough rotation

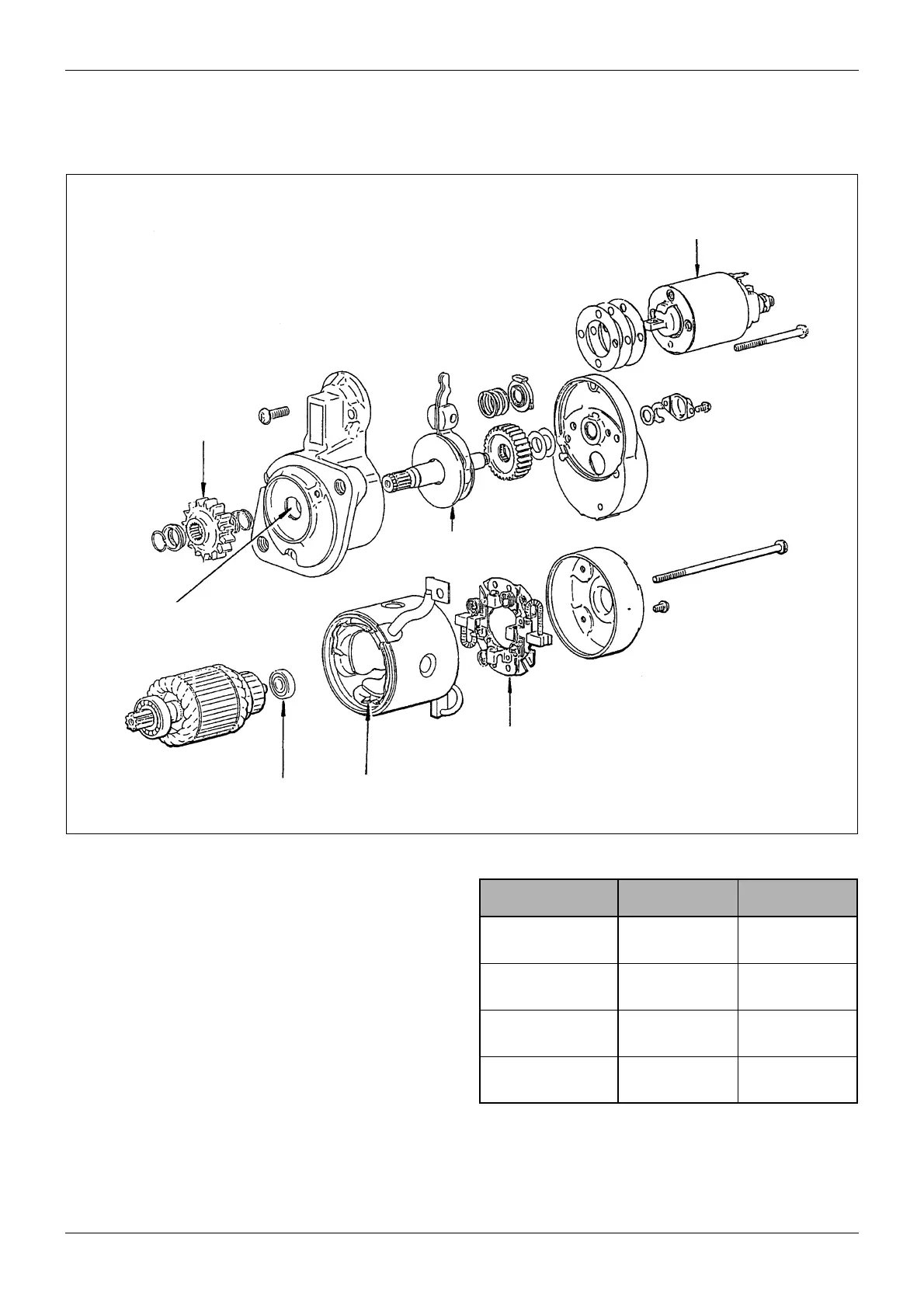

Figure 127 Inspecting starter
Description Standard Service Limit
Depth of under cut
0.5 mm
[0.0197 in.]
0.2 mm
[0.0079 in.]
Commutator O. D.
38.7 mm
[1.5236 in.]
–1.0 mm
[0.0394 in.]
Height of brush
17 mm
[0.6693 in.]
6 mm
[0.2362 in.]
Spring pressure
29.4 N (3 kgf)
[6.61 lbf]
Table 50 Inspection

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
