Mitsubishi L2E Service Manual

127 / 155
Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
STARTER
ENGLISH
ELECTRICAL SYSTEM
32.4.1 Inspecting the magnetic switch
Check the magnetic switch for continuity between
terminal S and M, and between terminal S and body. If
zero-ohm is indicated (as an evidence of short circuit),
replace the magnetic switch.
32.4.2 Inspecting the armature
1. Check the armature with a growler tester. If short-
circuited, replace the armature. Also, check for
insulation between the commutator and its shaft.
Replace the armature if there is continuity.
2. Measure the outside dimension of the commutator
and the depth of undercut. Repair or replace if
exceed the service limit. Also, check the
commutator outside surface for dirtiness and
roughness. If it is rough, polish the commutator
with fine-grain sandpaper.
32.4.3 Brush holder inspection
1. Check the brushes. If worn out nearly to the
service limit, replace the brushes.
2. Check the brush spring tension. If any defect is
found, replace springs.
3. Check for insulation between the positive brush
holder and holder base. If there is continuity,
replace the holder assembly. Also, check the brush
holder if itís firmly coaking the brushes.

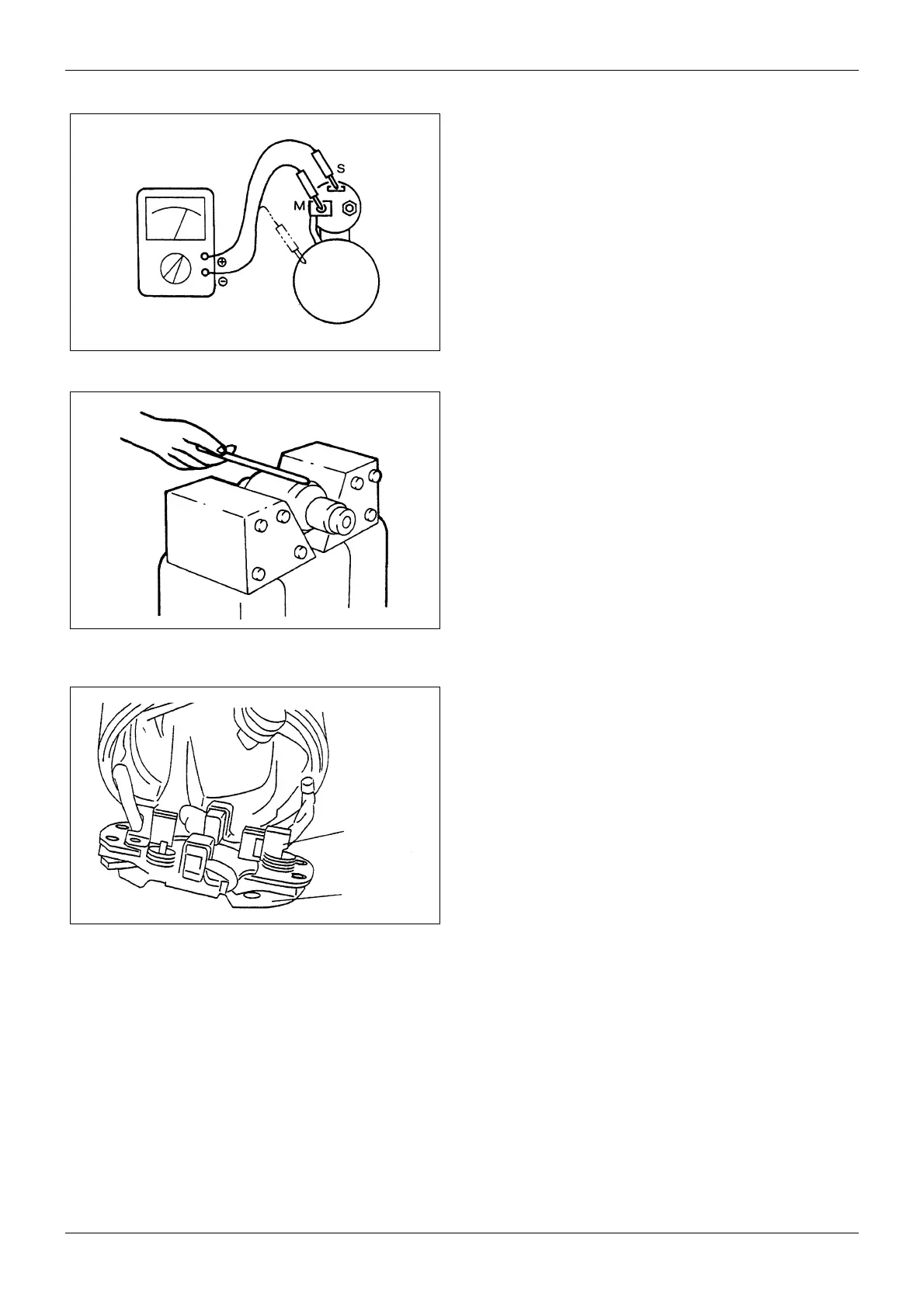

Figure 128 Checking magnetic switch
Body
Figure 129 Checking armature coil
Figure 130 Checking brush holders
Brush
holder
Holder base

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
