Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
ENGLISH
STARTER ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
32 STARTER
32.1 Structure
Disassembly sequence
1. Front bracket assembly
2. Lever assembly
3. Spring set
4. Center bracket assembly
5. Switch assembly
6. Through bolt
7. Armature
8. Rear bearing
9. Pinion
10. Pinion shaft assembly
11. Gear
12. Yoke assembly
13. Brush holder assembly
14. Rear bracket
12
4
6
13
14
3
2
1
5
11
10
8
9
7

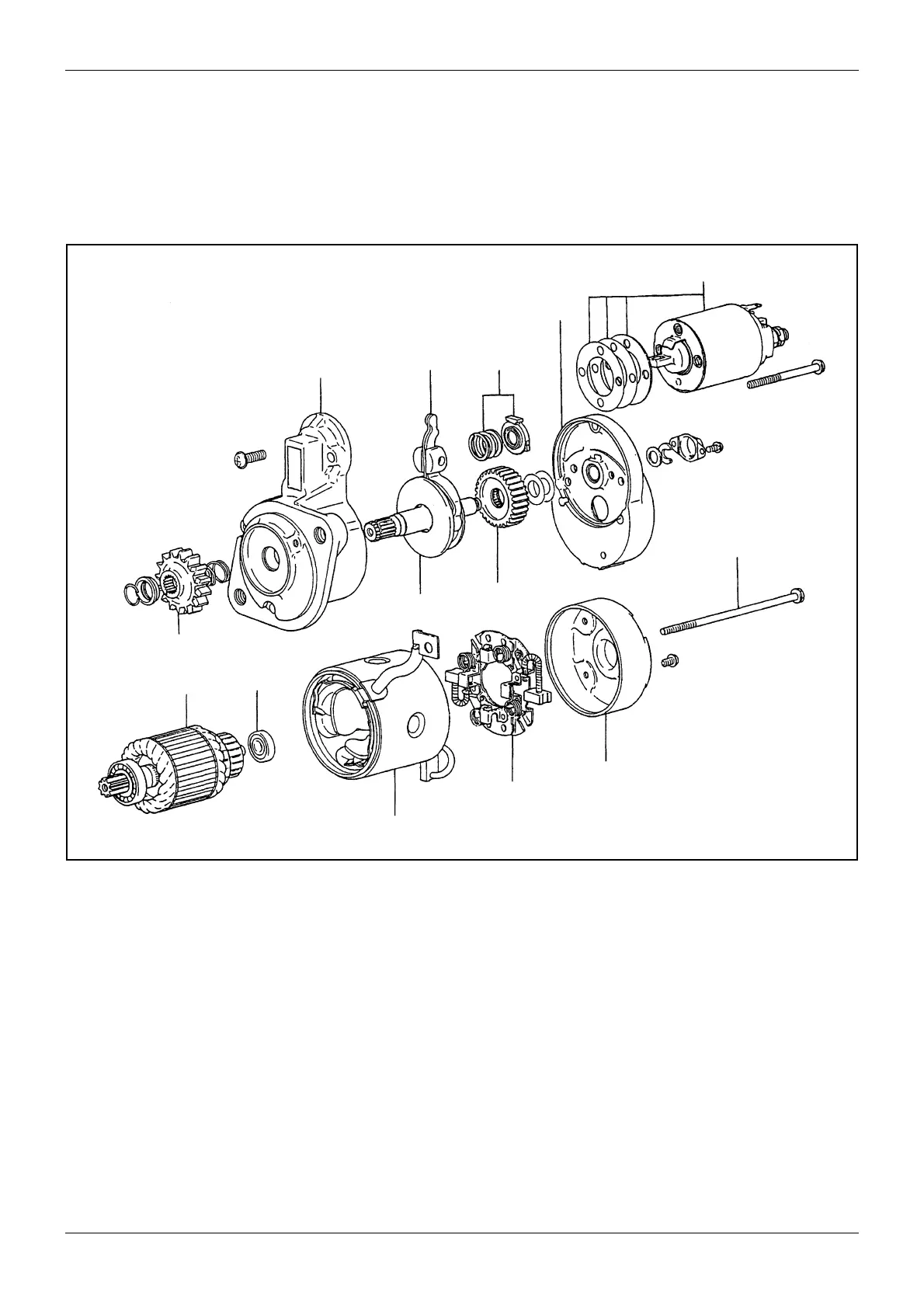

Figure 119 Starter component parts
