GEAR CASE AND OIL PUMP
ENGLISH
ENGINE MAIN PARTS
12.6 Inspection of governor system
Check the governor system in the gear case. If any
parts are found defective, repair or replace them.
12.7 Disassembly and reassembly
of governor levers
12.7.1 Disassembling shaft
1. Remove the expansion plug, paying attention not
to scratch the gear case.
2. Pull out the grooved pin.
12.7.2 Reassembling Shaft
1. Reassemble the shaft in the reverse sequence of
disassembly.
2. After reassembling the shaft, press-fit the
expansion plug into the shaft hole in the gear case.

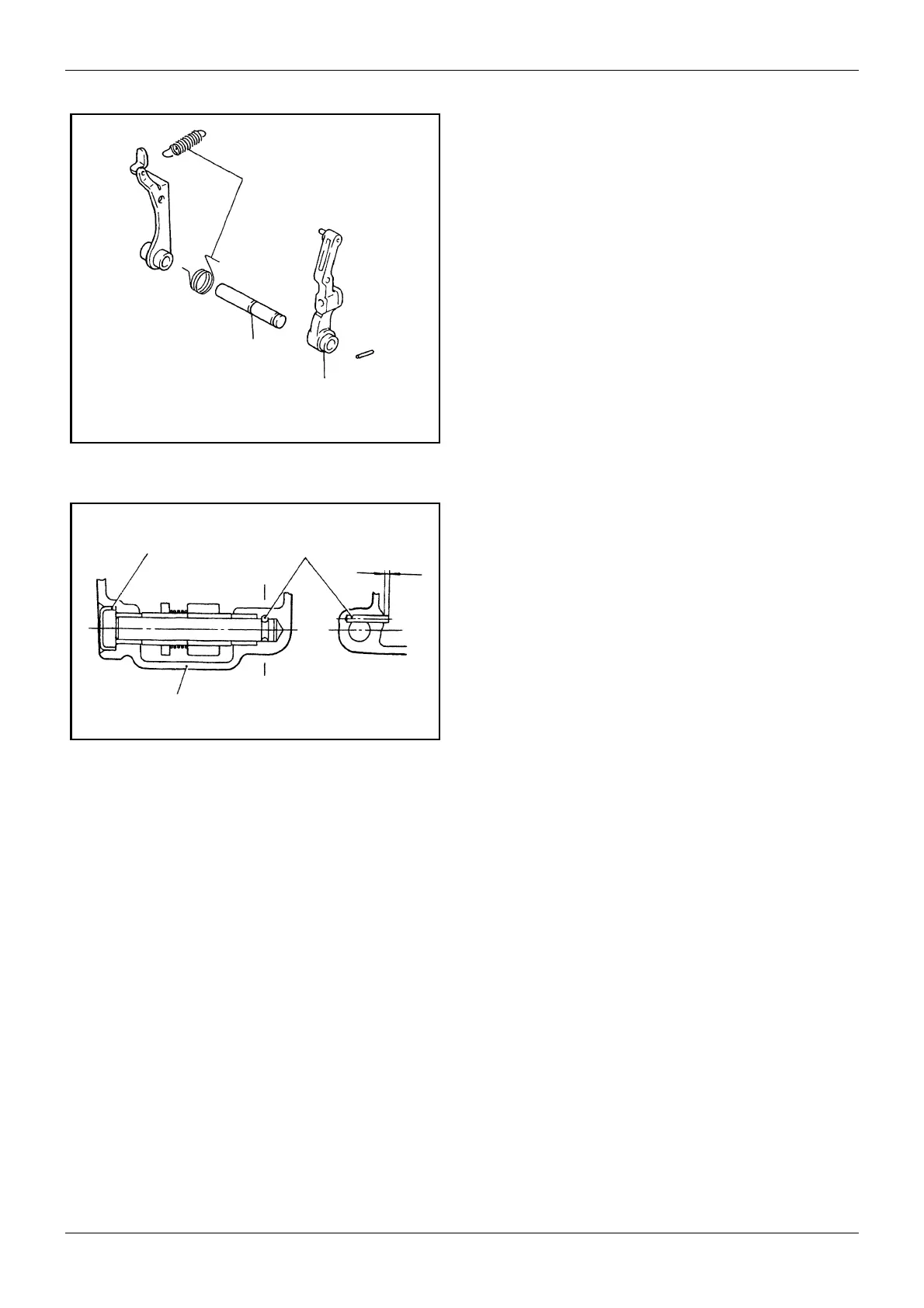

Figure 53 Check governor system
Check sliding
sleeve joint for
wear and damage.
Check springs
for fatigue.
Check shaft
for flaws.
Figure 54 Reassembling governor shaft
Expansion
plug
Gear case
Grooved pin
A
A
Protrusion
approx. 2 mm
[0.0787 in.]
Section A-A

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
