Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
GLOW TIMER SYSTEM
ENGLISH
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
36 GLOW TIMER SYSTEM
36.1 General
The glow plugs are used to help easy start of a cold
engine by preheating the combustion chamber.
In the standard-specification engines, it is necessary to
keep the starter key at the “glow” position for 20 to 30
seconds by hand in order to heat the glow plugs.
The glow timer system eliminates the necessity of
keeping the key switch at the “glow” position and
shortens the glow plug heating time (6 seconds). This
system remarkably simplifies the glow plug operation.
36.2 Glow timer
36.3 Glow relay

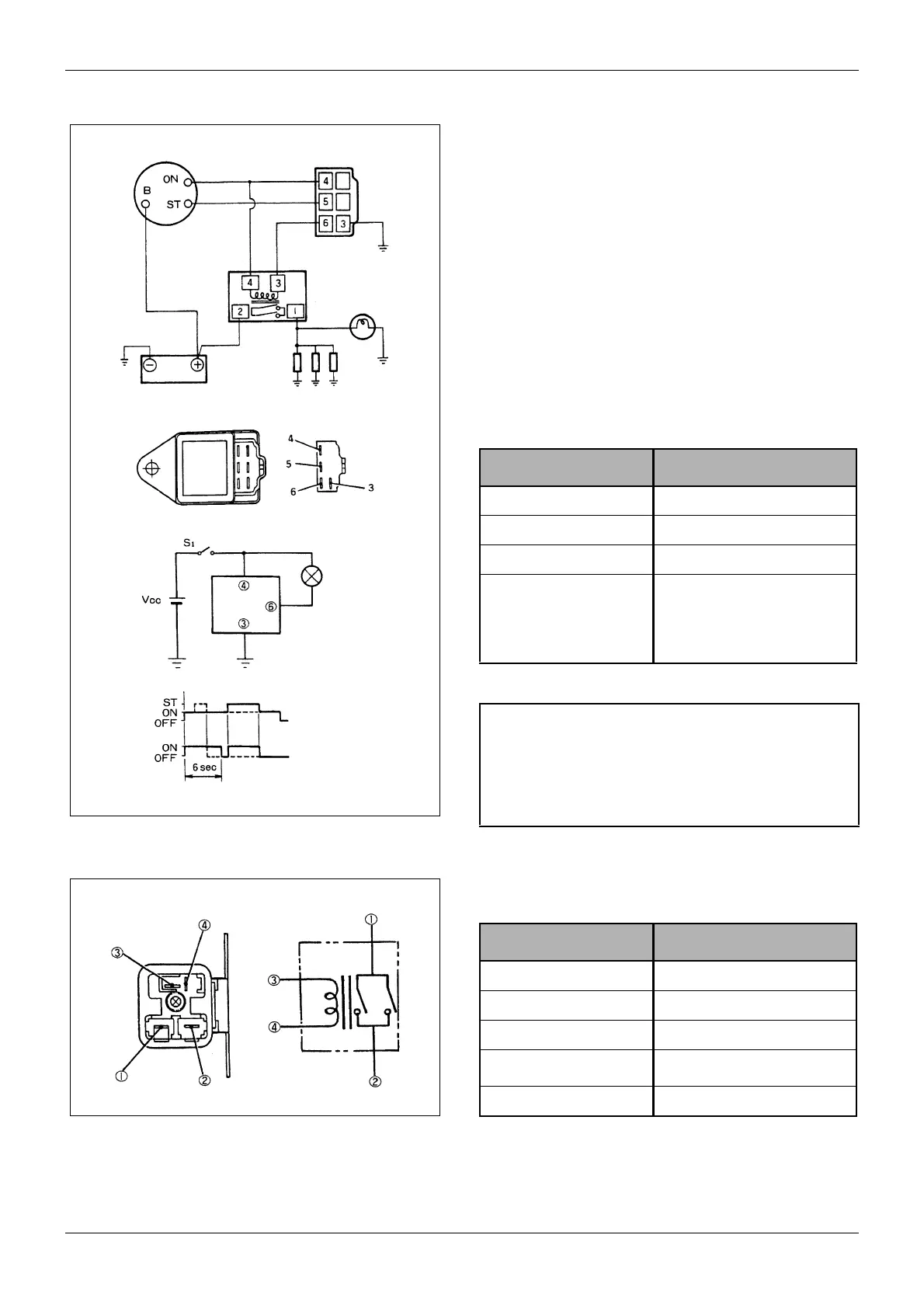

Figure 154 Glow timer system
Glow indicator
Glow relay
Battery
Glow timer
Key switch
Glow plugs
Glow timer
Operation chart
Glow relay
Test circuit
Description Specification
Model p/n MM431762
Rated voltage 12V DC
Working temperature 20°C [68°F]
Initial performance (at
normal temperature,
normal humidity, VCC:
12V)
6 sec. (*1)
NOTE
*1 Using the test circuit shown, measure the time
spent until the glow relay trips to ON after the switch
S1 is closed.
+1.4
-0
Figure 155 Glow relay
Internal wire
connection
Description Specification
Model p/n MM43128201
Rated voltage 12V DC
Continous rating 1 min
Coil resistance
13
Inductance 24 mH (at 1 kHz)
