KEY-OFF STOP SYSTEM ELECTRICAL SYSTEM
35.4.2 Solenoid installation
In this solenoid, under the switch key is turned to the
OFF position, the solenoid shaft is pulled in when the
solenoid is functioned and the shaft is returned
(protruded). Install the solenoid while it is not
functioned (its shaft is protruded), using the same
procedure as mentioned before for the push type, so
that the specified clearance between the solenoid shaft
and injection-pump rack can be obtained.
Stroke
13.5±0.5 mm
[0.5315±0.0197 in.]
Rated current, pull 55A
Rated current, hold 1A
Description Specification

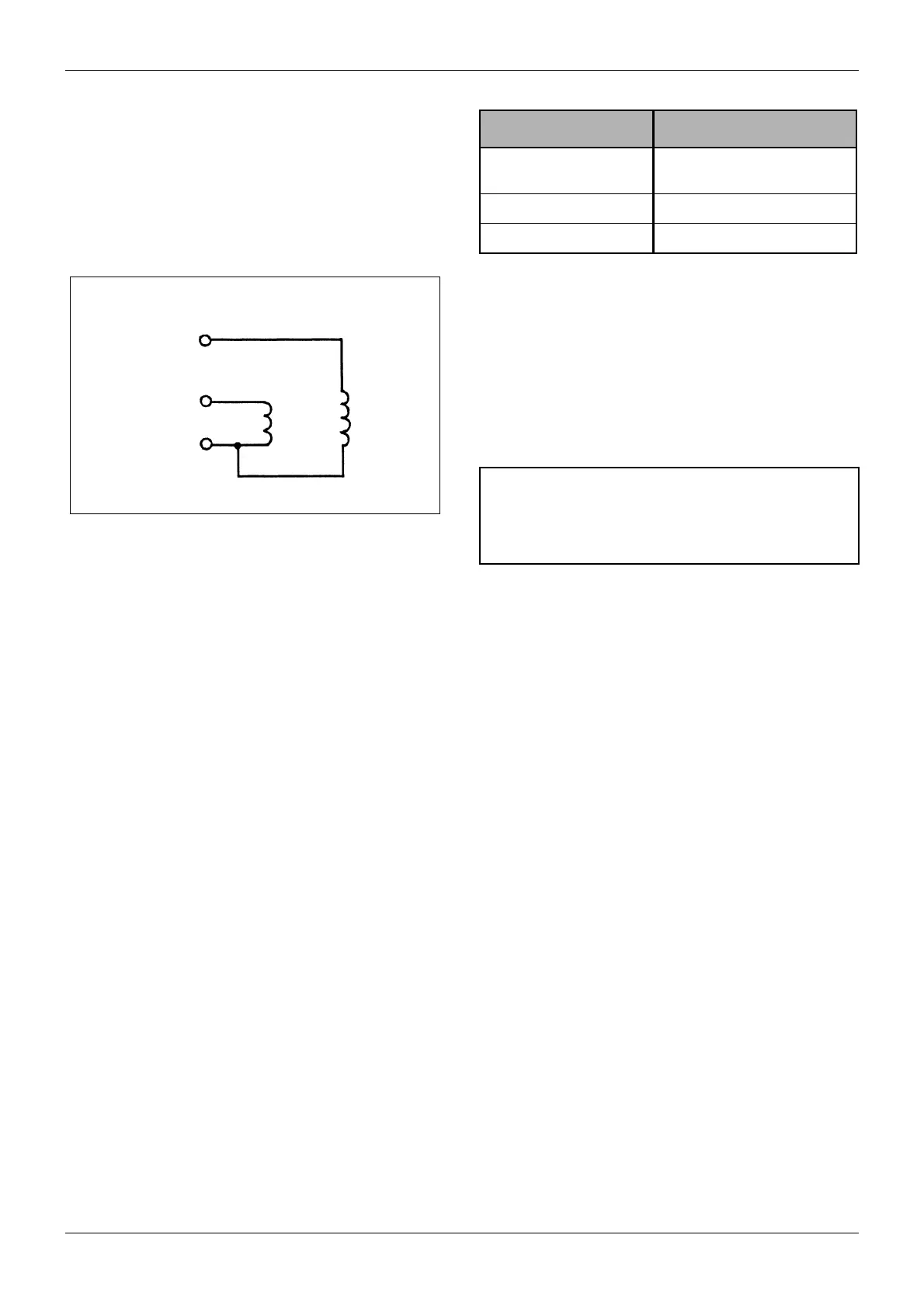

Figure 153 Fuel cutoff solenoid (ETR type) diagram
Red
Hold
White
Blue
Pull
NOTE
It will take about 10 seconds to restart an engine
which was shut down by the key shutoff device.

Mitsubishi L2E Specifications

General

Engine Model	L2E
Number of Cylinders	2
Starting System	Electric starter
Lubrication System	Forced lubrication by trochoid pump
Cooling System	Water-cooled
