Service Manual Mitsubishi L-Series diesel engines
Version 08/2004
FUEL INJECTION PUMP
ENGLISH
FUEL SYSTEM
FUEL SYSTEM
21 FUEL INJECTION PUMP
21.1 Disassembly
Disassembly sequence
1. Union collar
2. Air vent screw
3. Delivery valve holder
4. Valve spring
5. Holder stopper
6. Housing
7. O-ring
8. Delivery valve
9. Gasket
10. Seat valve
11. Plunger barrel
12. Sleeve
13. Upper seat
14. Plunger spring
15. Plunger
16. Lower seat
17. Adjusting shim
18. Tappet roller
19. Pin
20. Control rack
21. Stop wire bracket

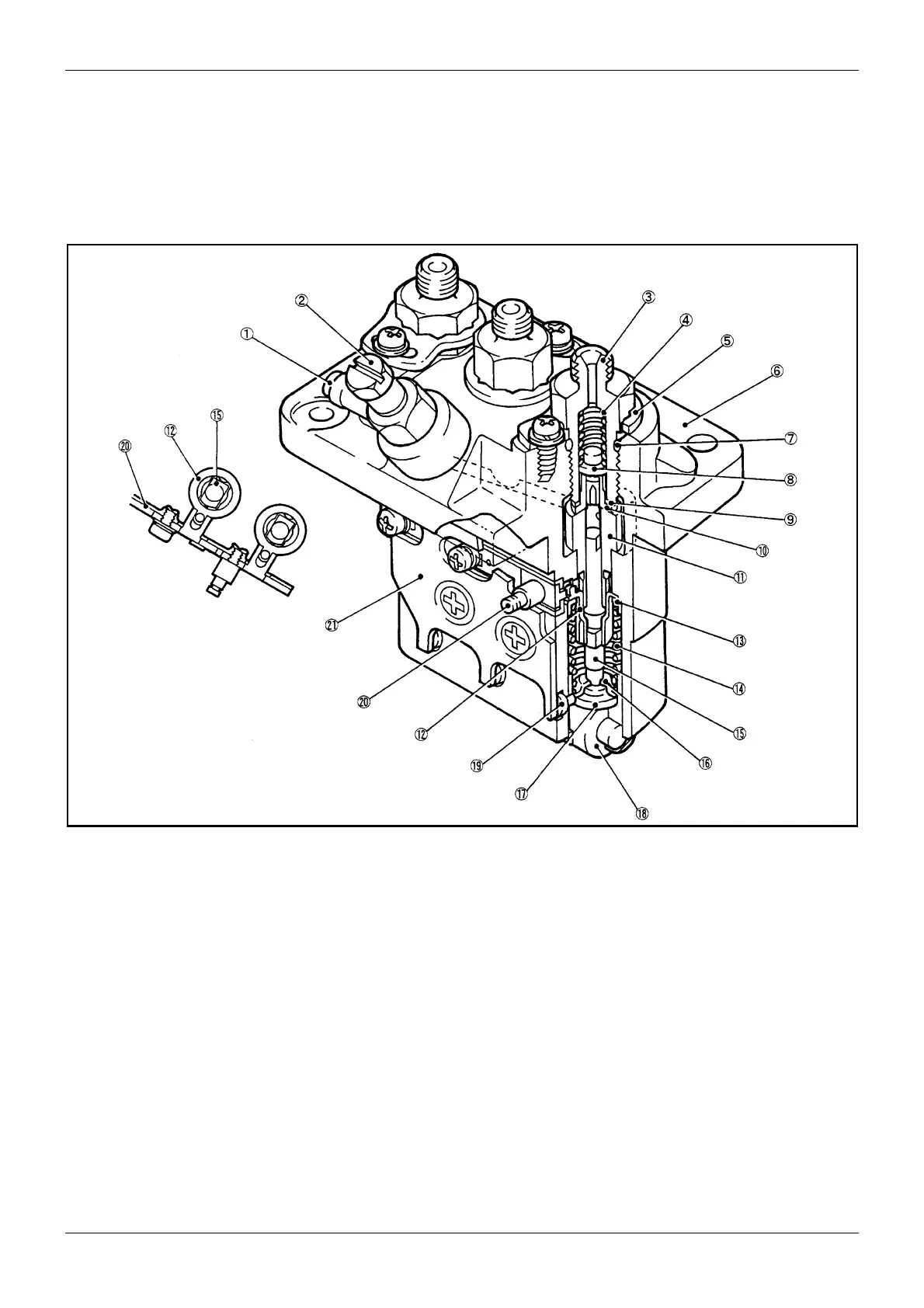

Figure 92 Injection pump component parts
