Modification mode

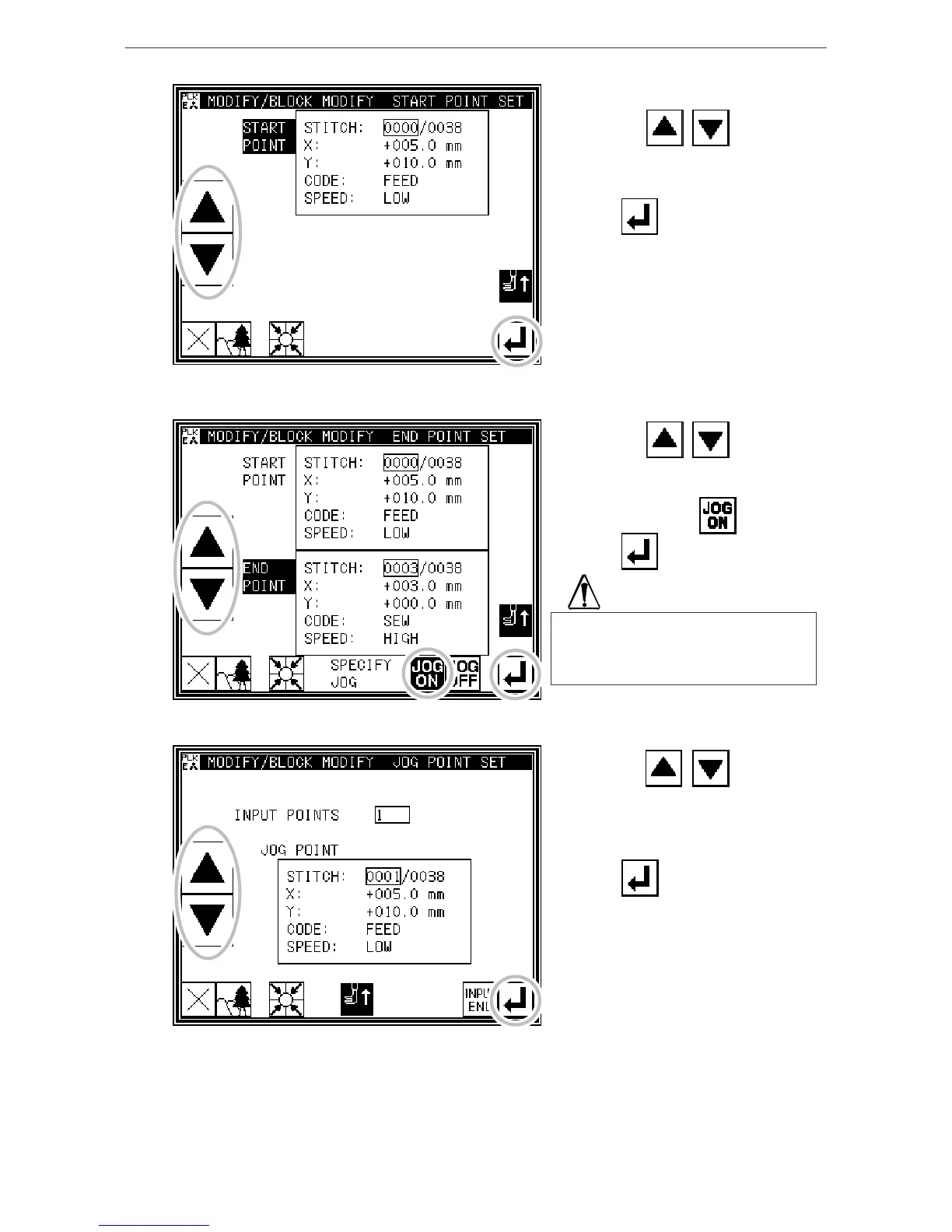

3. Determining the block modification range (start point)
* Using Jog , , determine
the start point position.
(Home position)
* Press .
4. Determining the block modification range (end point)
* Using Jog , , determine
the end point position.(A point)
* Press Jog Validity .
* Press .
5. Moving and setting the modification origin jog position
* Using Jog , , move to
the position to be modified.
(E point in this example.)
* Press .
When the end point is determined, the
work holder will automatically return to
the start point. Take care when the
needle is lowered, etc.
