Modification mode



[12]-45

(20) Modifying stitch length (All After designated stitch)

[Example] The stitch length from stitching data point A to the end of stitching is modified as

shown below. (3.0mm → 9.0mm)



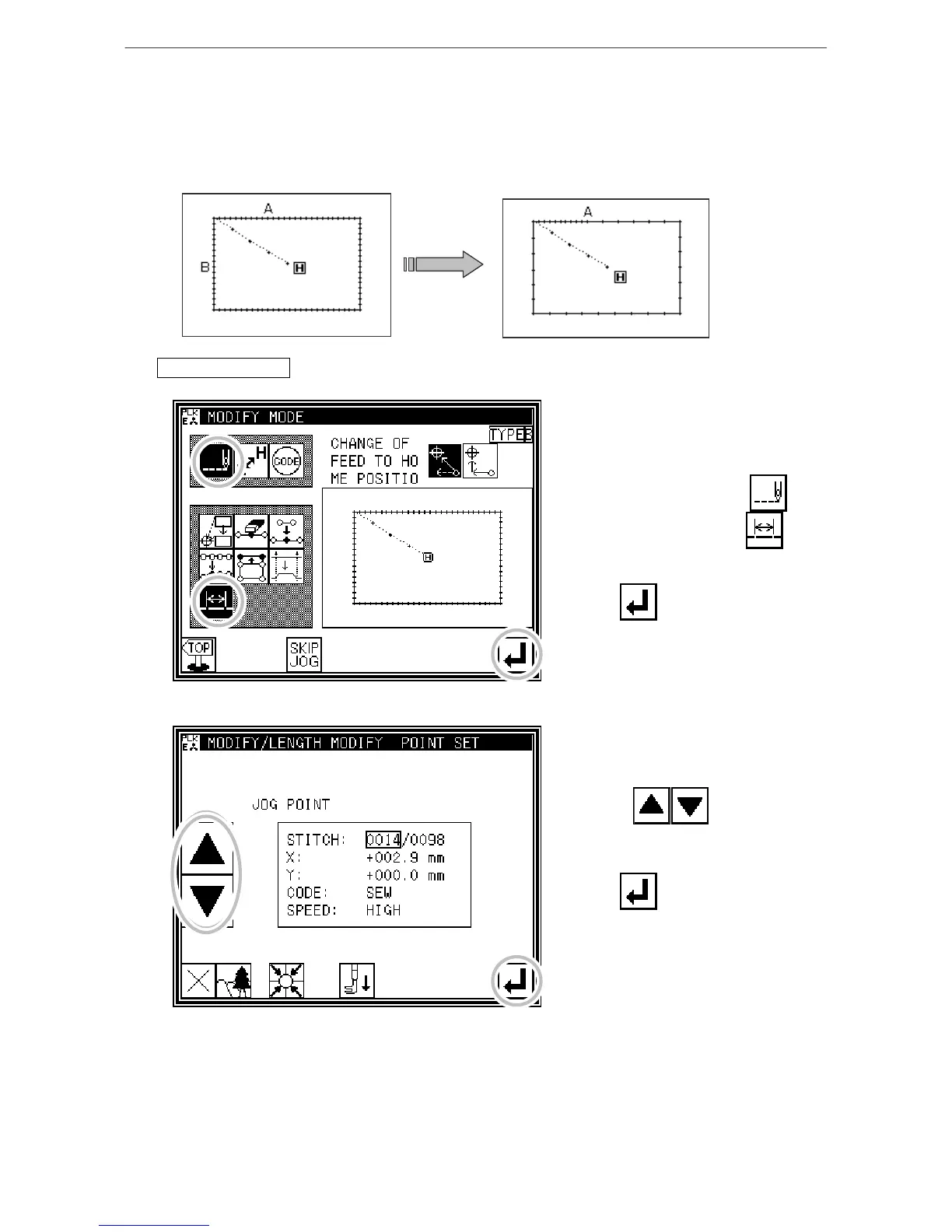

Operation details

1. Selecting the stitch length modification



* Enter the modification mode. (Refer to

the methods for entering the

modification mode.)

* Press Stitch Data Change and

Stitch length modification .

* Press to open the next screen.



2. Determining the modification start position



* Determine the position to be modified

with jog . Set to the

position

to start modification (point A).

* Press


