Modification mode

[12]-44

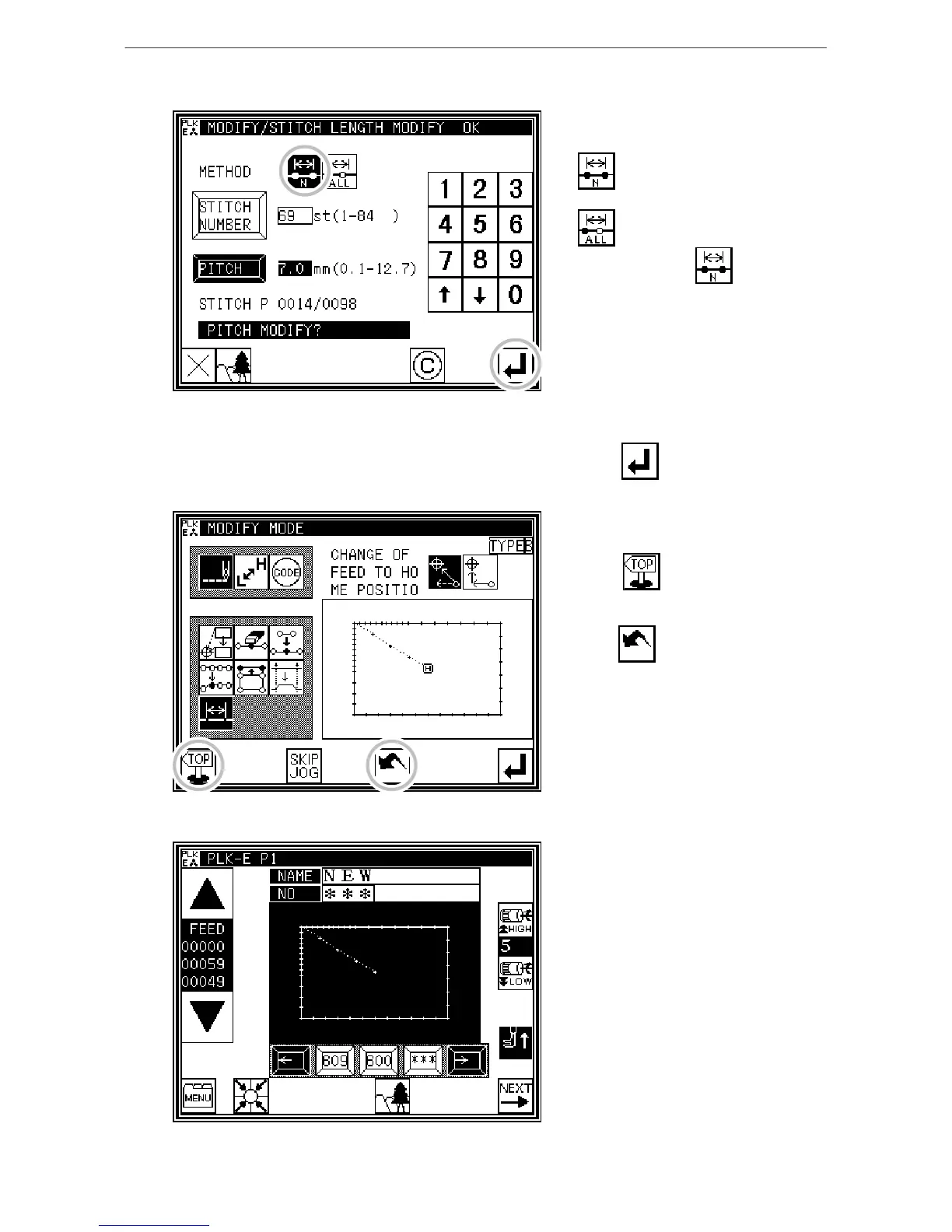

3. Setting the modification method



* Set the method.



: Designated distance

modification



:All After designated stitch



(In this case, press )



* When modifying in a designated

distance, set the No. of modification

stitches. (This will be "69 stitches"

here.)

Set the stitch length. (This will be

"7.0mm" here.)



* Press



4.Confirming the modifications



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)



5.Confirming with the Standard screen



* The stitch length has been modified.


