Monitor MB206 - Jp22; Jp64

To Next Page

To Previous Page

Hardware Specifications14

JP22

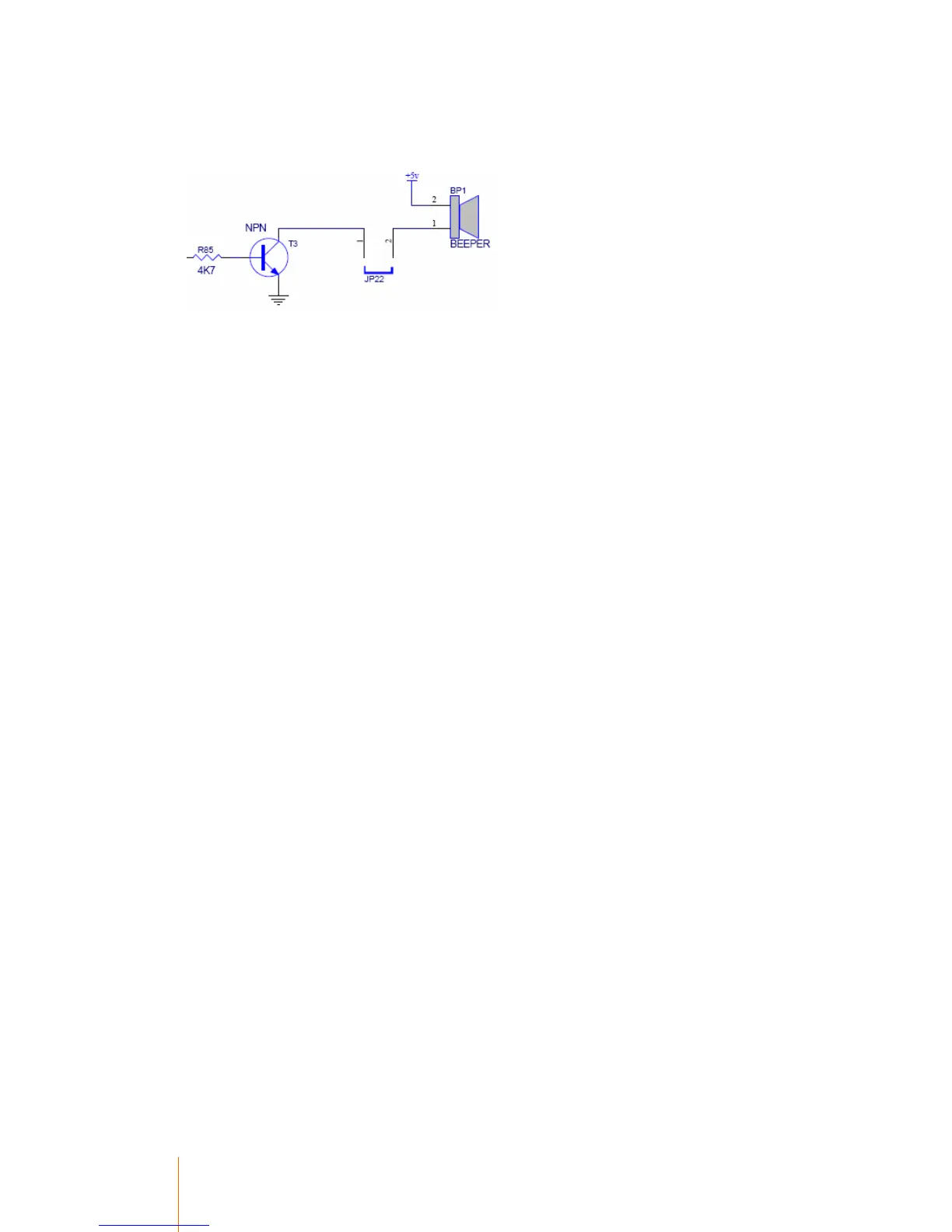

JP22 is a hardware enable / disable for the beeper. By default the jumper is hard-wired to enable

the beeper. The beeper can also be enabled and disabled via software in the terminal setup menu.

JP64

JP64 is an I

C Bus connector reserved for future use by MBM.
