Motorola APX 7000 Basic Service Manual

Sec 1: 8-28 Disassembly/Reassembly Procedures: Serviceable Components of the Main Sub-Assemblies
8.8.9.2 FM Label (50)
NOTE: There is no need to remove any components in order to service the
FM Label (50).
1. Scrape off the FM Label (50) with the Black Stick.
2. Clean the area once the FM Label is completely removed to ensure it is free of adhesive and
debris.
3. Replace with a new FM Label.
4. Remove the liner and place the label in the recess.
5. Press the new label.
NOTE: There are No Other serviceable components on the Main Housing Assembly (D).
8.8.10 Servicing Main Housing (L) – Top Display Version

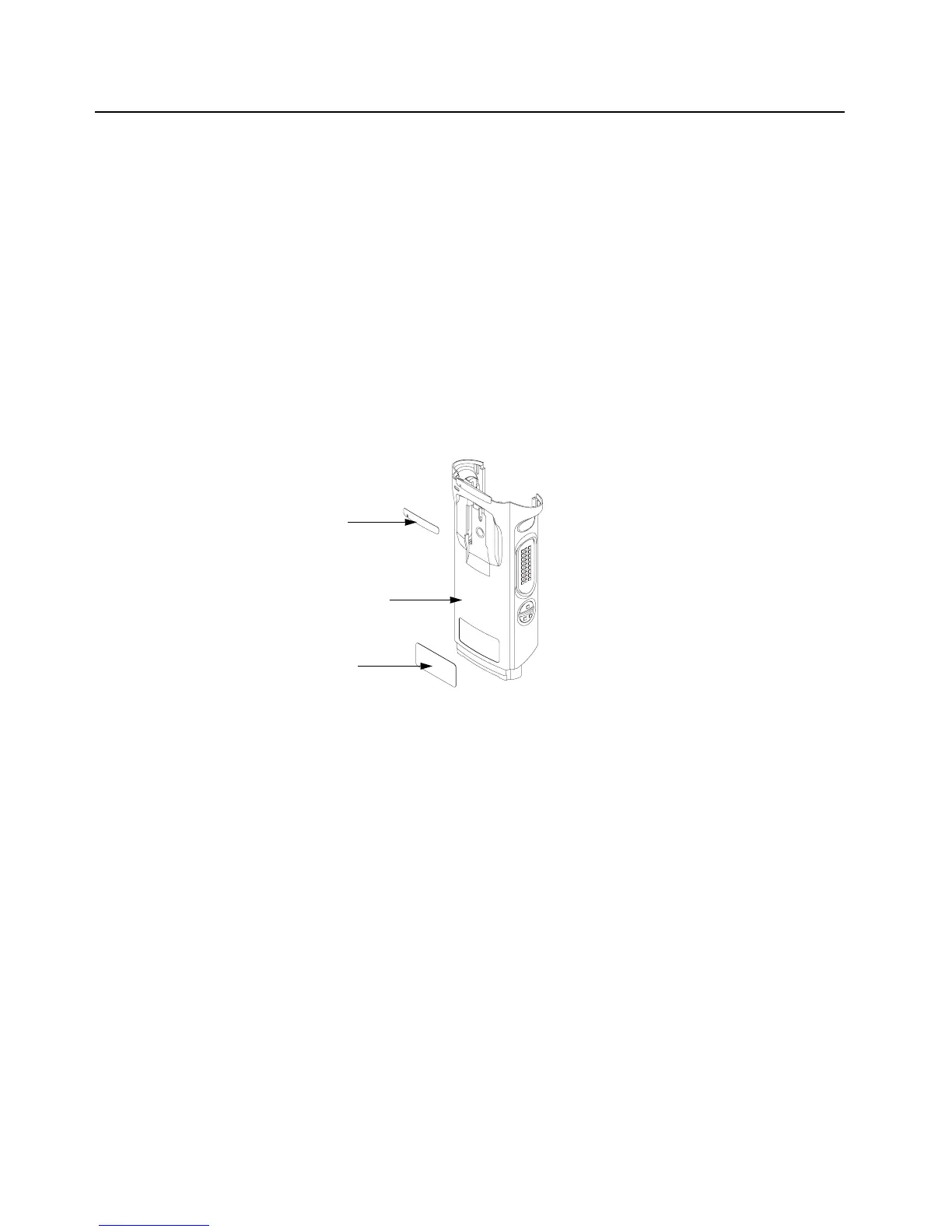

Figure 8-38. Main Housing Assembly (Top Display Version)
8.8.10.1 Top Label
NOTE: There is no need to remove any components in order to service the Top Label (2).
1. Scrape off the Top Label (2) with the Black Stick.
2. Clean the area once the Top Label is completely removed to ensure it is free of adhesive and
debris.
3. Replace with a new Label.
4. Remove the liner and place the label in the recess.
5. Press the label.
8.8.10.2 Blank / FM Label (49)
NOTE: There is no need to remove any components in order to service the
bottom Label (49).
1. Scrape off the bottom Label (49) with the Black Stick.
2. Clean the area once the bottom Label is completely removed to ensure it is free of adhesive
and debris.
3. Replace with a new Label.
Blank / FM Label (49)
Front Housing Assembly (45)
Top Label (2)

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
