Disassembly/Reassembly Procedures: Battery Sec 2: 8-7
2. Verify that the Memory Door (28) is closed by ensuring the door is fully seated and the catch
feature on the tab is in the main chassis notch.

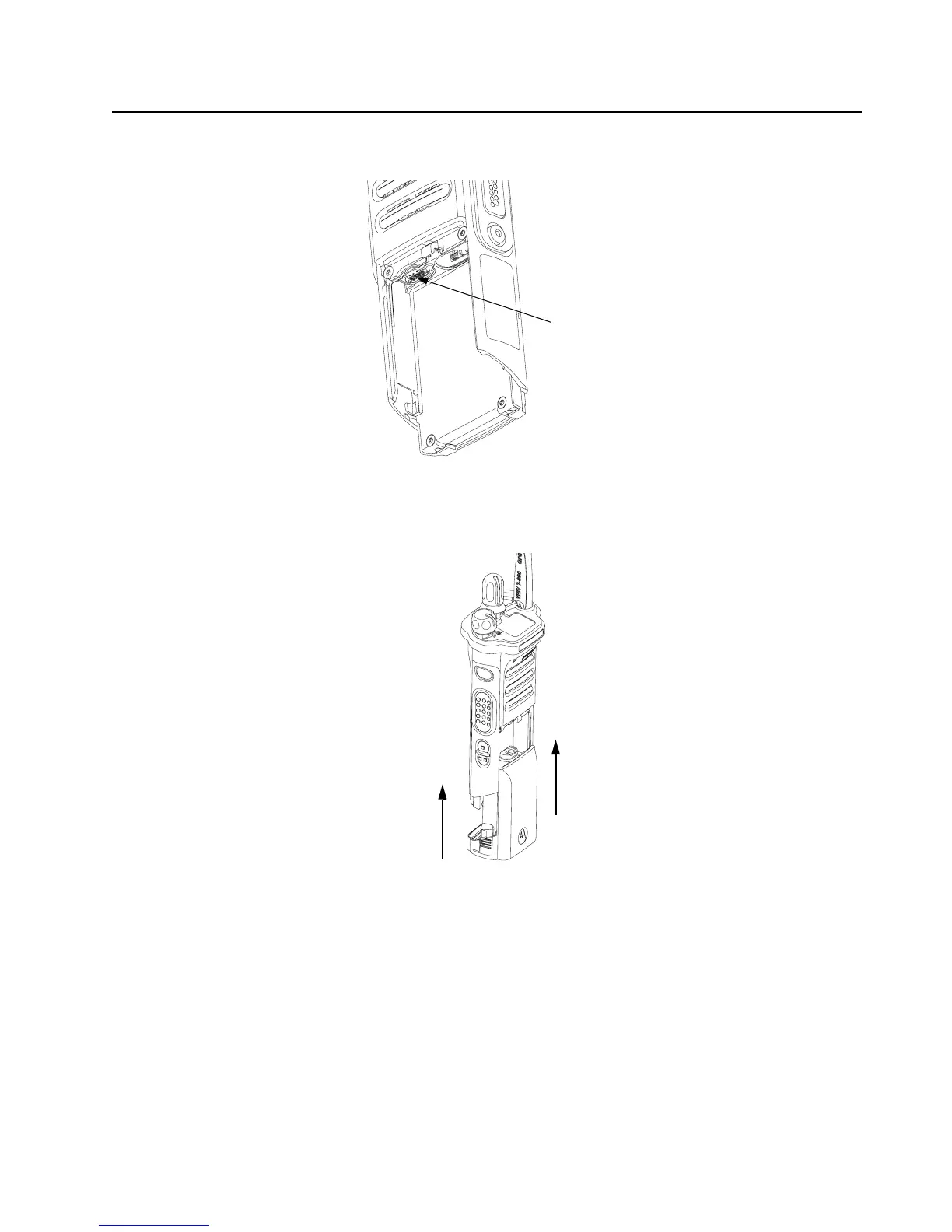

Figure 8-5. Attaching Battery – Memory Door
3. Set the battery onto the chassis as shown in Figure 8-6. and slide into position. Make sure
both battery latches click into position.
Figure 8-6. Attaching Battery – Slide into Position
Memory Door (28)
