Sec 2: 8-8 Disassembly/Reassembly Procedures: Battery
8.5.2 Remove Battery
To remove the battery:
1. With the radio turned off, squeeze the two latches located near the bottom, on the sides of the
battery.

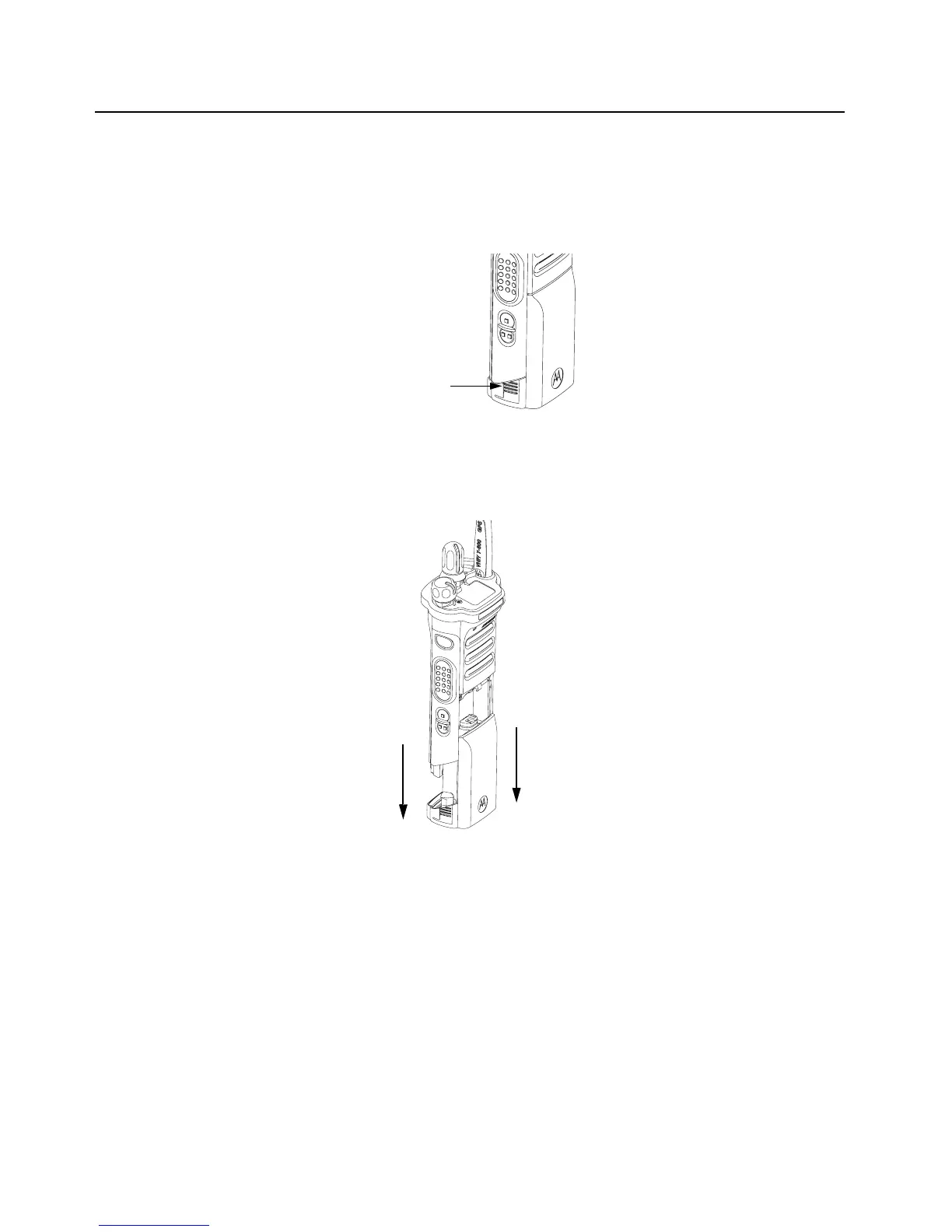

Figure 8-7. Squeezing the Release Latches
2. While squeezing the latches, remove the battery by sliding it out as shown.
Figure 8-8. Removing the Battery
Battery Latch
(other one on
opposite side)
