Motorola APX 7000 Basic Service Manual

Disassembly/Reassembly Procedures: Serviceable Components of the Main Sub-Assemblies Sec 2: 8-23
8.8.7 Servicing Back Chassis Assembly (E)

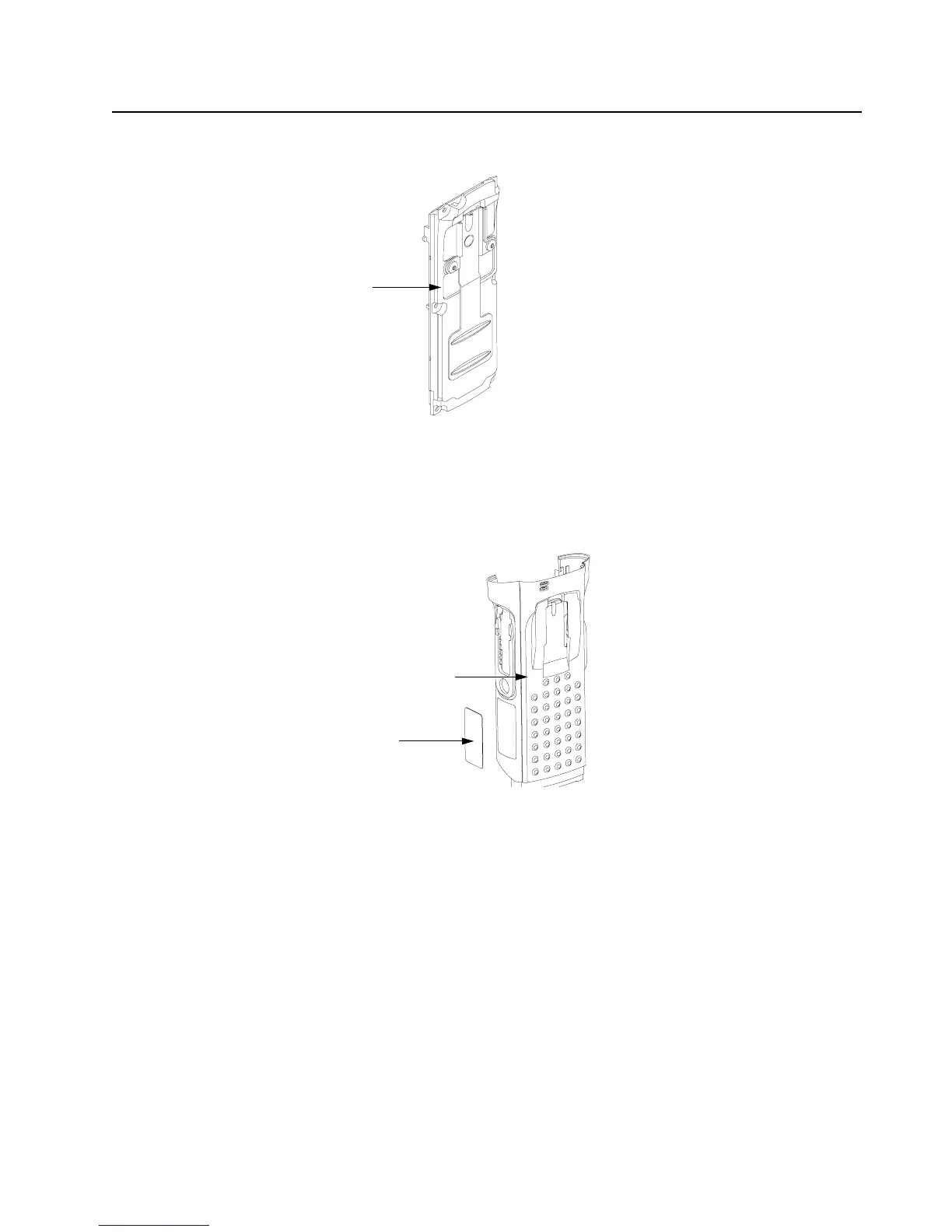

Figure 8-33. Back Chassis Assembly
NOTE: There are No serviceable Components on the Back Chassis Assembly.
8.8.8 Servicing Main Housing (D)
Figure 8-34. Main Housing Assembly
8.8.8.1 Blank/FM Label (2)
NOTE: There is no need to remove any components in order to service the Blank/FM Label
(2).
1. Scrape off the Blank/FM Label (2) with the Black Stick.
2. Clean the area once the label is completely removed to ensure it is free of adhesive and
debris.
3. Replace with a new label.
4. Remove the liner and place the label in the recess.
5. Press the label.
NOTE: There are No Other serviceable components on the Main Housing Assembly (D).
Back Chassis Assembly (17)
Blank/FM Label (2)
Main Housing Assembly (1)

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
