Disassembly/Reassembly Procedures: Radio Reassembly Sec 2: 8-27
8.9.1.4 Assemble RF Board Assembly (F)
1. Inspect the Battery Connector Seal (35) on the RF Board Assembly (F) for any damage or
debris. Replace seal if necessary.
2. Connect the small coaxial cable connector into the RF Board (32).
3. Connect the RF Board to the VOCON Board as shown in Figure 8-40.
NOTE: Do not connect the Antenna coax at this time. Front Housing Assembly (1) must be
snapped in place prior to connecting the coax.

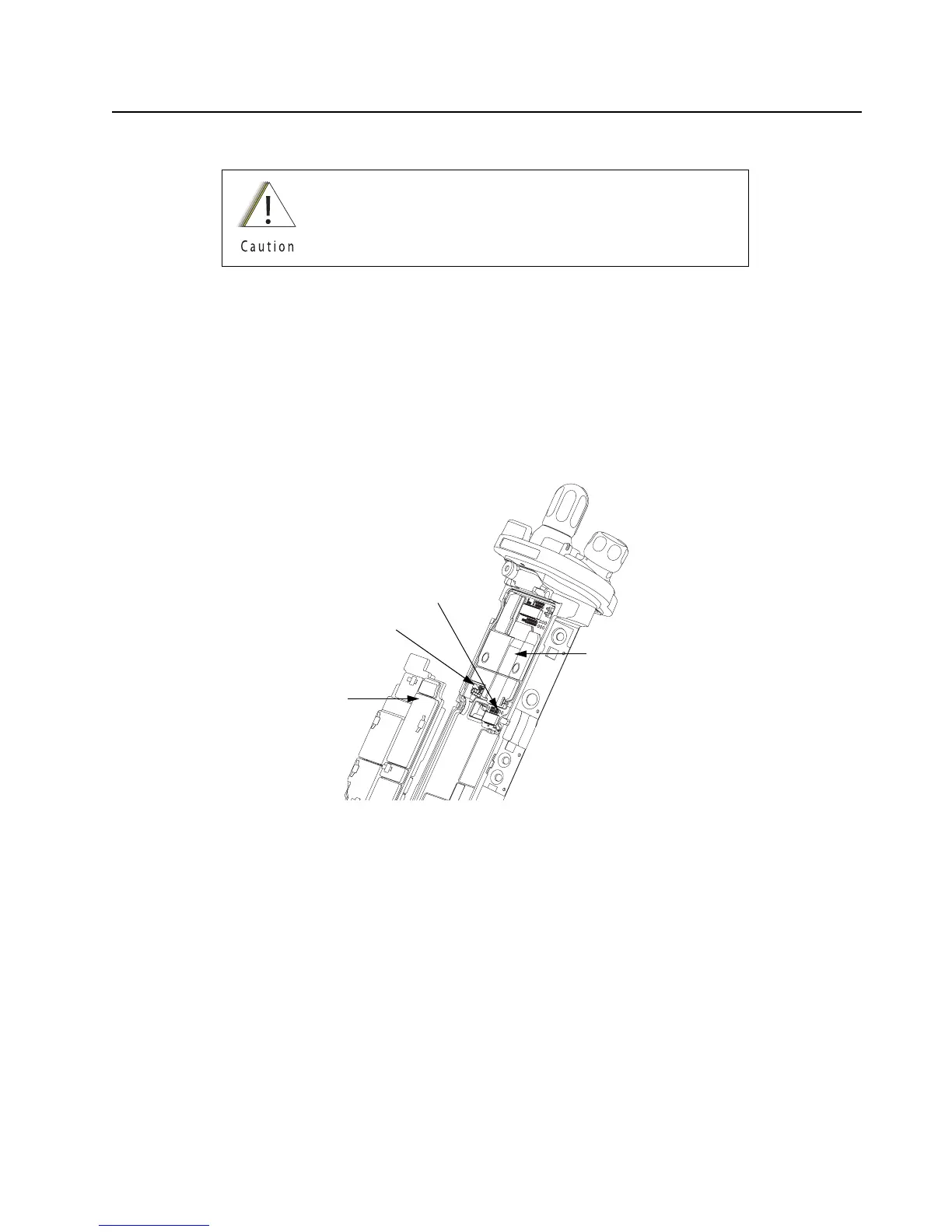

Figure 8-40. Connect RF Board to VOCON Board
Always replace with new thermal pads. See Section “8.8.5.2
Thermal Pads” on page 2:8-22.
Connector
RF Board Assembly (32)
Small Coax Cable
VOCON Board
To Next Page
