Motorola APX 7000 Basic Service Manual

Sec 2: 8-28 Disassembly/Reassembly Procedures: Radio Reassembly
8.9.1.5 Assemble Back Chassis Assembly (E)
1. Inspect the Back Chassis Assembly seal for any debris or foreign material.
2. Set the Back Chassis Assembly (E) onto the Main Chassis Assembly (K).

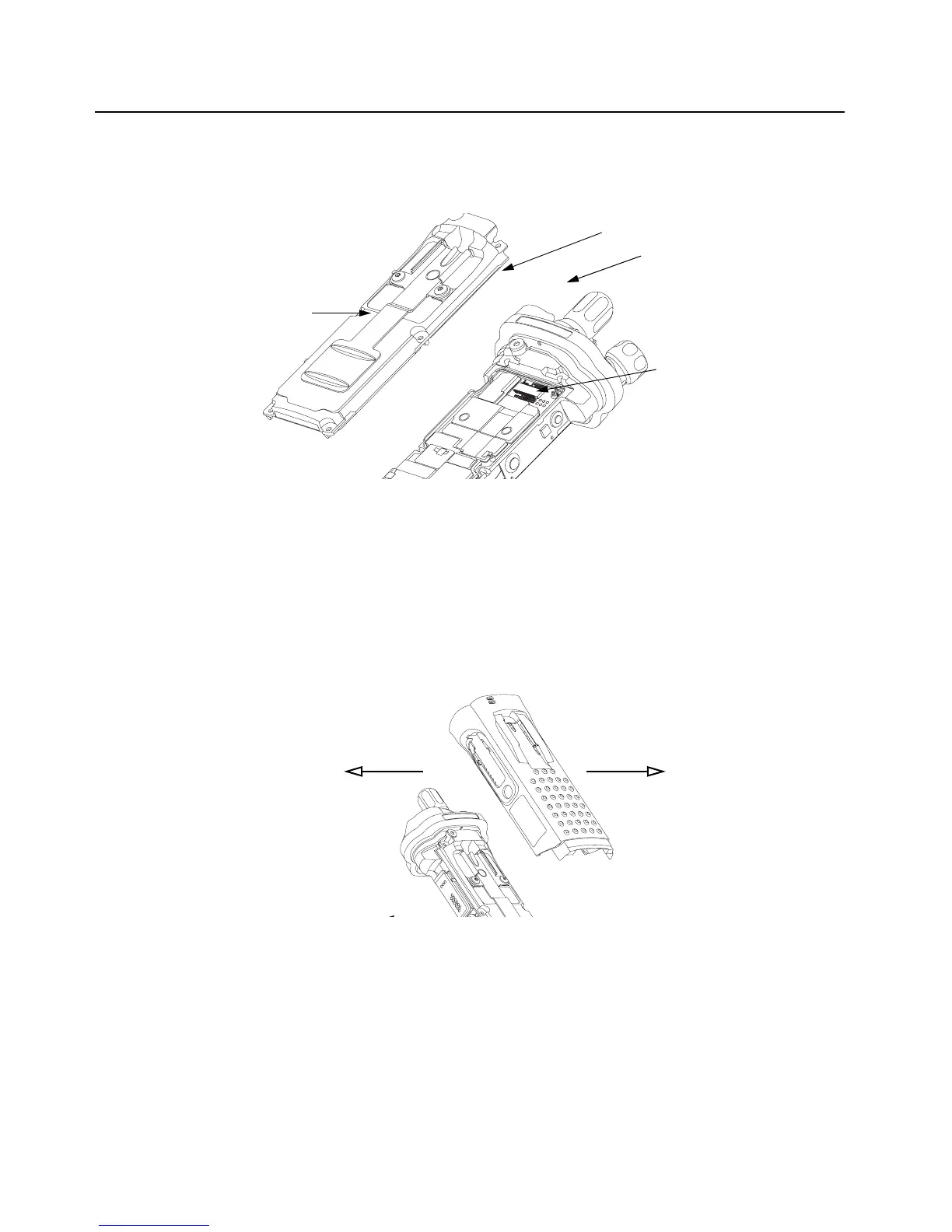

Figure 8-41. Place Back Chassis
8.9.1.6 Assemble Main Housing Assembly (D)
1. Stretch the Main Housing Assembly (D) side walls outward with both hands just enough to
clear the Main Chassis (K) and place it onto the radio.
2. Ensure the top edge of the housing and the bottom edge of the control top are aligned as
shown in Figure 8-42.
3. Squeeze the Main Housing Assembly (D) and the Main Chassis Assembly (K) in the battery
area until the Main Housing Assembly fully snaps in place onto the Main Chassis Assembly.
Figure 8-42. Place Housing into Main Chassis
Back Chassis Assembly (17)
Connector
Pull Belt
Black Stick
Stretch Outwards

Motorola APX 7000 Specifications

General

Digital Technology	P25 Phase 1 and Phase 2
Emergency Button	Yes
Frequency Range	136-174 MHz (VHF), 380-470 MHz (UHF Range 1), 450-520 MHz (UHF Range 2), 764-870 MHz (700/800 MHz)
Display	Color LCD
Encryption	AES, DES
Water Resistance	IP67
GPS	Yes
Bluetooth	Yes
Operating Temperature	-30°C to +60°C
Weight	391 g (with standard battery)
